Parts Catalog

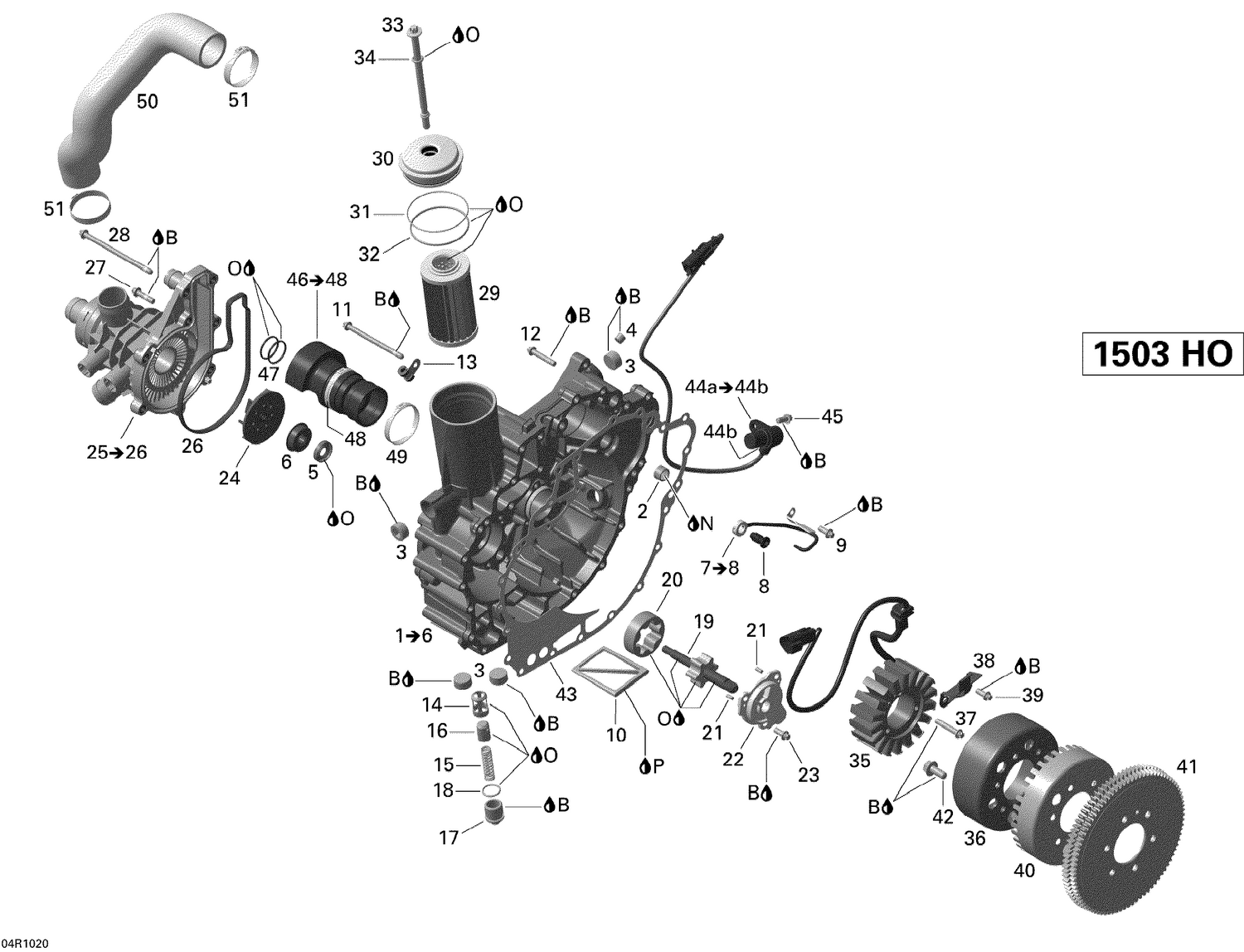

03- PTO Cover And Magneto V2

Parts (50)

Ref	Part Number	Description
B	293800060	Loctite 243, 10 ml
N	413707000	Dow Corning 111, 150 g
O	Not	Available As Spare Part - Engine Oil
2	420232482	Needle Bushing This part replaces 420232480.
3	420641317	Plug Screw M20 X 1.5
4	420641323	Plug Screw M10 X 1
5	420650315	Oil Seal This part replaces 420650310.
6	420650371	Rotary Seal This part replaces 420650370.
8	420840181	Banjo Screw This part replaces 420840180.
9	420641048	Torx Flange Screw M6 X 16
10	420956950	Oil Sieve
11	420641228	Torx Flange Screw M6 X 85
12	420641258	Torx Flange Screw M6 X 35
13	420853414	Clamp
14	420256606	Valve Seat Sleeve
15	420939410	Compression Spring
16	420256638	Piston Valve This part replaces 420256630.
17	420641052	Plug Screw M20 X 1.5
18	420230890	O-Ring
19	420837472	Pump Shaft Ass'y
20	420956675	Oil Pump Rotor 16 mm
21	420929070	Needle Pin
22	420811591	Oil Pump Cover This part replaces 420811590.
23	420641048	Torx Flange Screw M6 X 16
24	420922801	Impeller
26	420950840	Water Pump Housing Gasket
27	420641238	Torx Flange Screw M6 X 25
28	420641338	Torx Flange Screw M6 X 105
29	420956741	Oil Filter
30	420610329	Oil Filter Cover
31	420850500	O-Ring
32	420230923	O-Ring This part replaces 420230920.
33	295501207	Oil Filter Screw Kit This part replaces 420641105.
34	420950860	O-Ring
35	420889726	Stator Plate This part replaces 420889721.
36	420296900	Magneto Flywheel
37	420641258	Torx Flange Screw M6 X 35
38	420926300	Retaining Plate
39	420641048	Torx Flange Screw M6 X 16
40	420966851	Trigger Wheel This part replaces 420664082.
41	420834871	Starter Double Gear 87/86T This part replaces 420834488.
42	295501162	Hex Screw This part replaces 420641016.
43	420931130	Timing Drive Cover Gasket (1603 NA)
44b	420431580	O-Ring
45	420641048	Torx Flange Screw M6 X 16
47	420631612	O-Ring This part replaces 420631610.
48	420853023	Gear Clamp 46.8-50.0MM
49	420851653	Gear Clamp
50	420922822	Formed Hose
51	420851687	Oetiker Clamp
