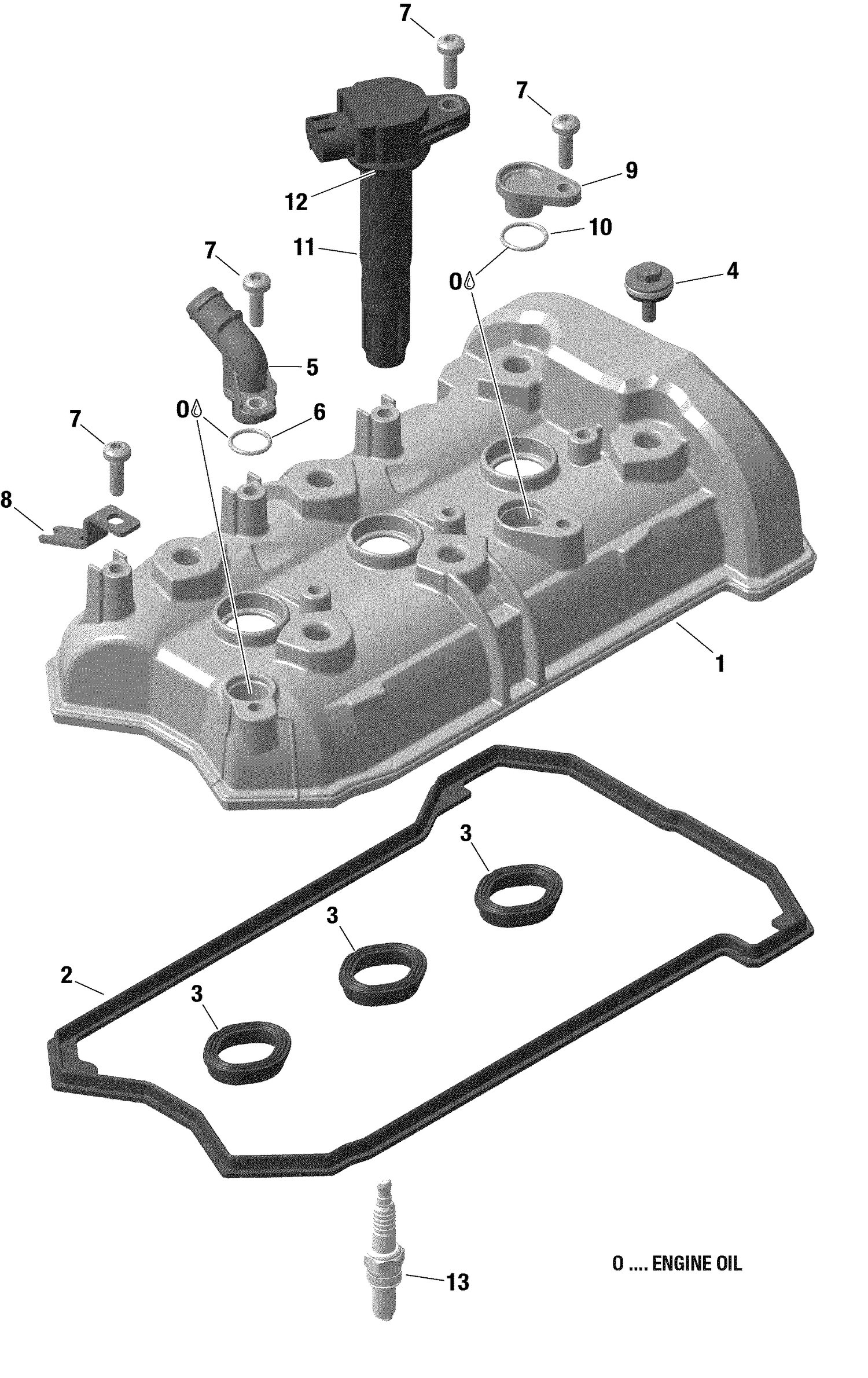

01- Engine - Valve Cover - 900 ACE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911492 | Valve Cover |
| 2 | 420431801 | Valve Cover Gasket |
| 3 | 420431751 | Valve Cover Gasket |
| 4 | 420440497 | Distance Screw M6 |
| 5 | 420611242 | Blow By Connector |
| 6 | 420631240 | O-Ring |
| 7 | 420441383 | Torx Flange Screw M6 X 20 |
| 8 | 420251291 | Cable Bracket |
| 9 | 420660270 | Cover |
| 10 | 420631890 | O-Ring |
| 12 | 420201430 | Protection Cap |
