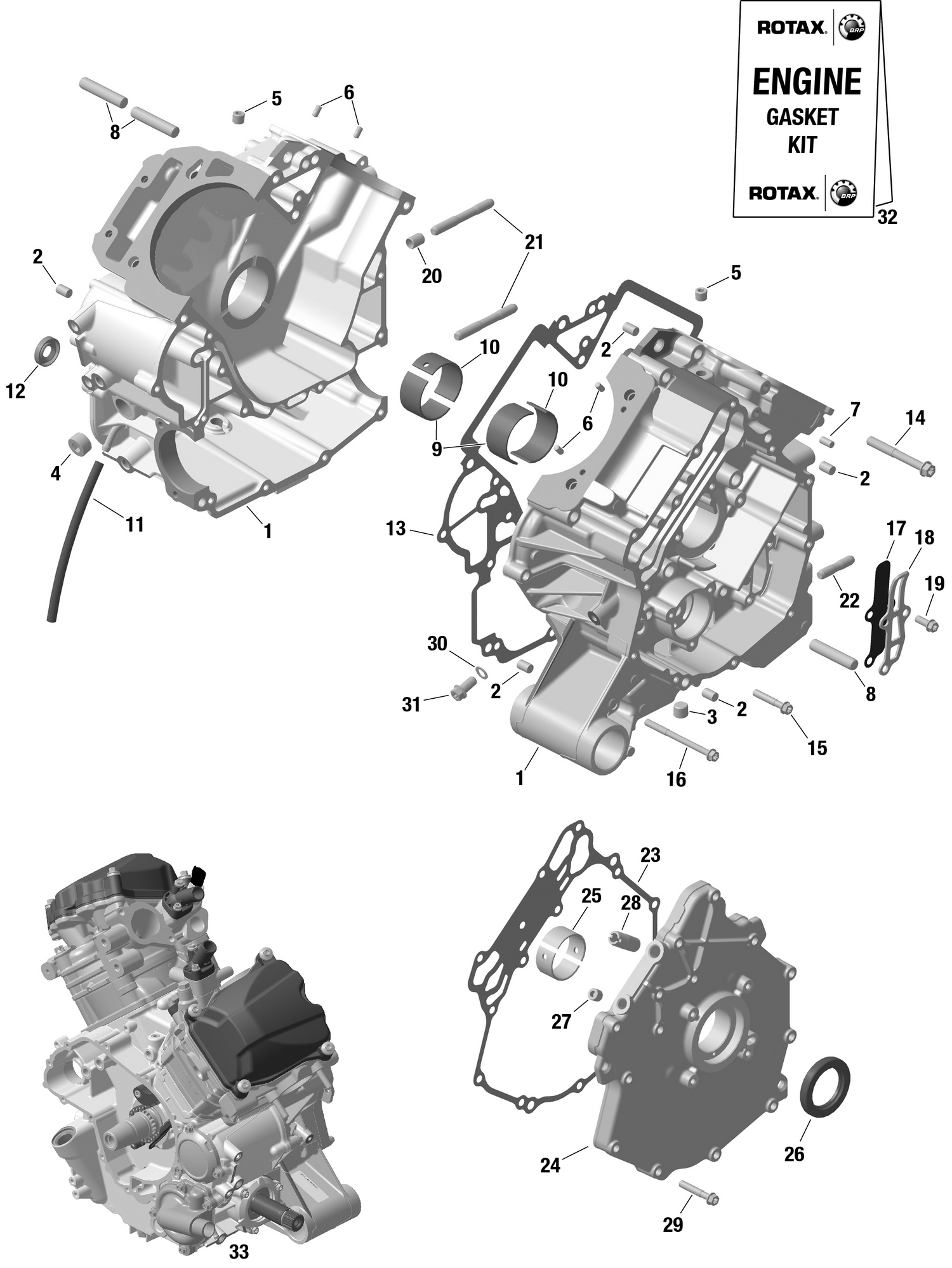

01- ROTAX - Crankcase
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420840658 | Plug Screw M12x1,5 |
| 4 | 420240170 | Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 5 | 420641323 | Plug Screw M10 X 1 |
| 6 | 420929650 | Drive Pin 5 X 10 |
| 7 | 420932780 | Needle Pin |
| 8 | 420229302 | Location Pin 10 M6x50 |
| 9 | 420233960 | Plain Bearing |
| 10 | 420233965 | Plain Bearing |
| 11 | XXX | Not Available As Spare Parts |
| 14 | 420440402 | Torx Flange Screw M8 X 65 |
| 15 | 420440274 | Torx Flange Screw M6 X 35 |
| 16 | 420440657 | Torx Flange Screw M6 X 75 |
| 17 | 420224721 | Reed Valve This part replaces 420224720. |
| 18 | 420224725 | Reed Valve Stop |
| 19 | 420641048 | Torx Flange Screw M6 X 16 |
| 20 | 420929670 | Dowel Pin 10 X 13 |
| 21 | 420240816 | Stud This part replaces 420240814. |
| 22 | 420840718 | Stud This part replaces 420840719. |
| 25 | 420233995 | Bearing Sleeve |
| 27 | 420641323 | Plug Screw M10 X 1 |
| 28 | 420256332 | Hose Nipple |
| 29 | 420440274 | Torx Flange Screw M6 X 35 |
| 31 | 420440852 | Torx Flange Screw M8 X 16 |
| 32 | 420684170 | Gasket Set |
