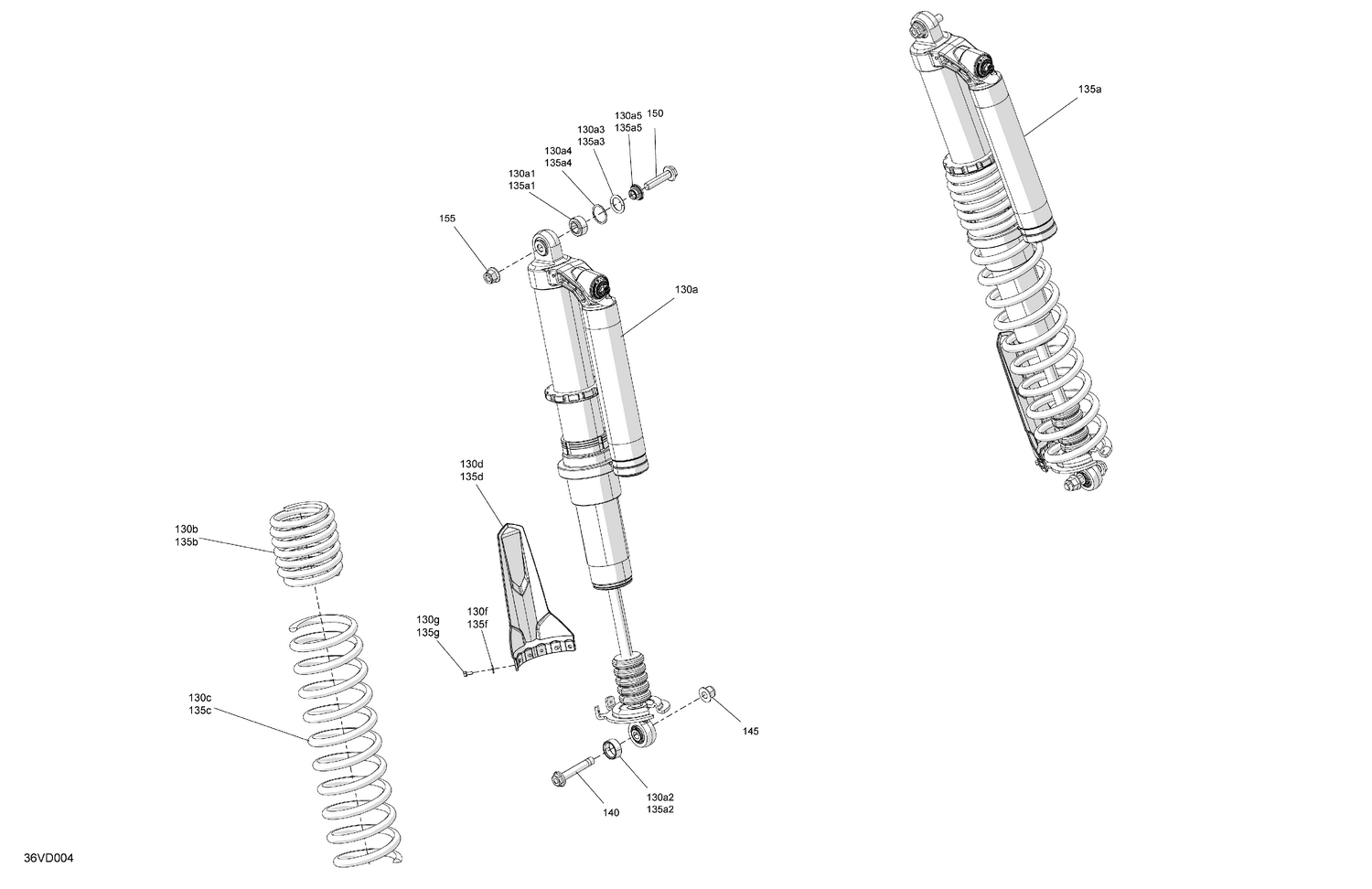

05- Suspension - Rear Shocks
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900916 | Spherial Bearing |
| 130a2 | 715900917 | Spherial Bearing |
| 130a3 | 715900918 | O-Ring Bushing |
| 130a4 | 715900919 | Retaining Ring |
| 130a5 | 715900920 | Reducer |
| 130b | 706005012 | Deep Black, Rear Compression Spring |
| 130c | 706005129 | Deep Black, Compression Spring |
| 130d | 706202215 | Protector |
| 130f | 250200025 | Washer M5 |
| 130g | 210251150 | Hex Flange Screw M5 X 11 |
| 135a1 | 715900916 | Spherial Bearing |
| 135a2 | 715900917 | Spherial Bearing |
| 135a3 | 715900918 | O-Ring Bushing |
| 135a4 | 715900919 | Retaining Ring |
| 135a5 | 715900920 | Reducer |
| 135b | 706005012 | Deep Black, Rear Compression Spring |
| 135c | 706005129 | Deep Black, Compression Spring |
| 135d | 706202215 | Protector |
| 135f | 250200025 | Washer M5 |
| 135g | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250001176 | Hex. Flange Screw Din.6921 M14X2X85 |
| 145 | 250001166 | Hex. Flange Elastic Nut M14 |
| 150 | 250001174 | Hex. Flange Screw Din.6921 M14X2X60 |
