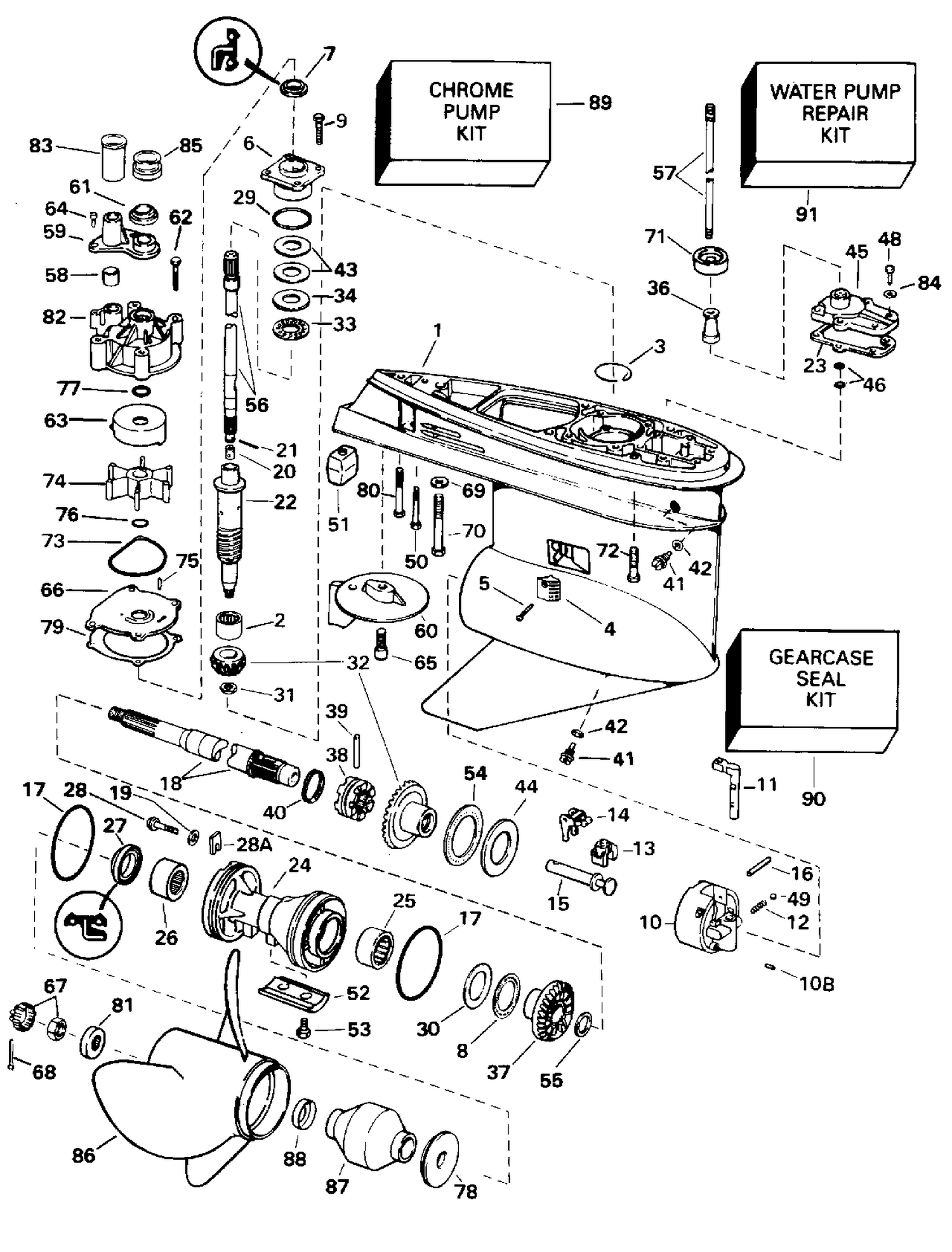

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 7 |
0341280 |
SEAL |
| 17 |
0305123 |
O RING |
| 27 |
0341281 |
SEAL |
| 56 |
5000615 |
ARBRE D'ENTRAÎNEMENT, supérieur This part replaces 0436234. |
| 56 |
5000624 |
DRIVESHAFT Assembly, Upper This part replaces 0435769. |
| 57 |
0335509 |
SHIFT ROD |
| 57 |
0335510 |
SHIFT ROD |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 77 |
0331188 |
O-Ring |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 86 |
PROPELLER |
Ref: 87 0175401 *BUSHING Assy, Prop, SST 0175401 |
| 89 |
0435526 |
CHROME CUP & PLATE KIT |
| 90 |
5006373 |
GEARCASE SEAL KIT This part replaces 0437753. |
| 91 |
5001595 |
Water Pump Repair Kit This part replaces 0435929. |
| 0438045 |
5005401 |
GEARCASE Assy, Complete - (Primed) This part replaces 0438045. |
