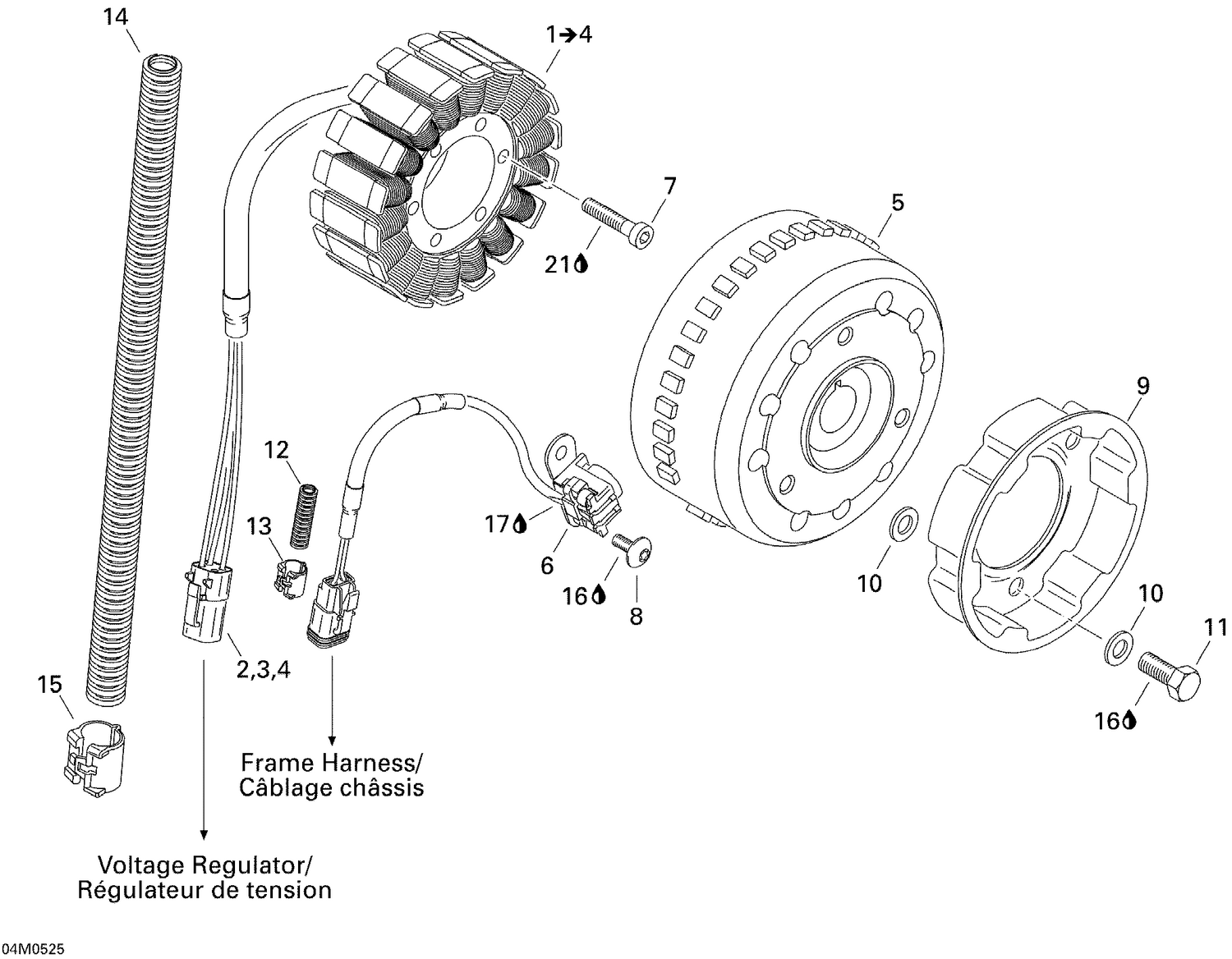

| Ref | Part Number | Description |
|---|
| 2 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 3 |
515175568 |
Male Terminal |
| 4 |
278001474 |
Female Lock, 4 Circuits |
| 5 |
420866040 |
FLYWHEEL - Call your local BRP dealership |
| 6 |
410922963 |
PICK-UP ASS'Y - Call your local BRP dealership |
| 7 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 9 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 10 |
420827405 |
Flat Washer |
| 11 |
207181644 |
Hex. Screw M8 x 16 |
| 12 |
420460012 |
TUBE - Call your local BRP dealership |
| 13 |
420960890 |
CLIP - Call your local BRP dealership |
| 14 |
420660911 |
TUBE - Call your local BRP dealership |
| 15 |
420960892 |
CLIP - Call your local BRP dealership |
| 16 |
293800060 |
Loctite 243, 10 ml |
