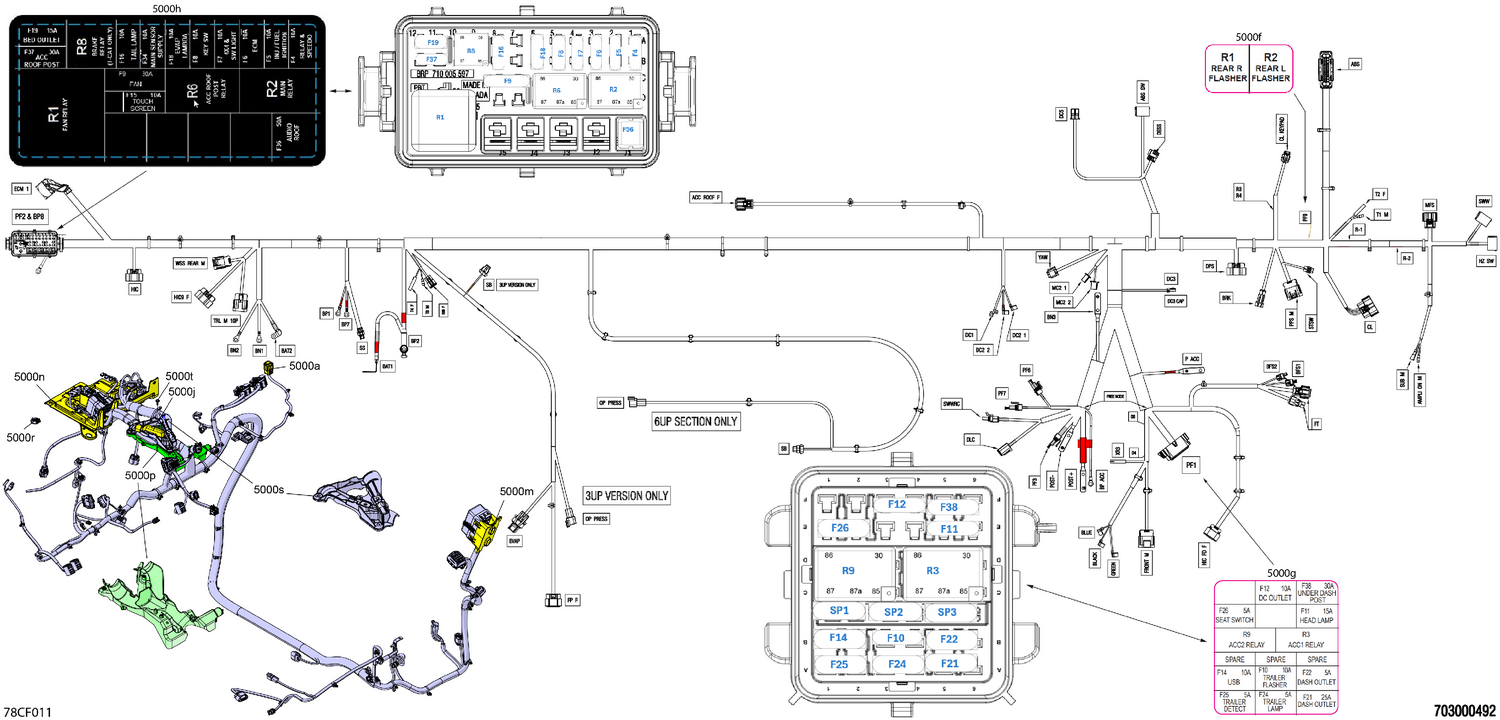

08- Electric - Main Harness - 710009331
Parts (161)
| Ref | Part Number | Description |
|---|---|---|
| ABS | 710008719 | Connector Bosch Female 46 Cavities |
| ABS | 710008720 | Cover With CPA |
| ABS | 710008721 | Bosch Female Terminal 4.8 |
| ABS | 710008722 | Connector Seal Bosch 4.8 |
| ABS | 710008725 | Housing Fill Plug 2.8 |
| ABS | 710008726 | Bosch Female Terminal 1.2 |
| ABS | 710008729 | Connector Seal Bosch1.2 |
| ABS | 710008730 | Plug 1.2 |
| AMPLI | ON | M 278001008 Insulated Sheath 278001008 |
| BAT2 | 710000475 | TERMINAL_FEMALE - Call your local BRP dealership |
| BFS1 | 515177192 | Female Housing, 2 Circuits |
| BFS1 | 710001152 | Lock |
| BFS1 | 710001163 | Wire Seal |
| BFS1 | 710001164 | Female Terminal |
| BFS2 | 515177192 | Female Housing, 2 Circuits |
| BFS2 | 710001152 | Lock |
| BFS2 | 710001163 | Wire Seal |
| BFS2 | 710001164 | Female Terminal |
| BLACK | 409010300 | Female Terminal |
| BLUE | 409010300 | Female Terminal |
| BN1 | 710000913 | Terminal |
| BN2 | 710000913 | Terminal |
| BN3 | 710008716 | Terminal |
| BP1 | 278000992 | Open Barrel |
| BP2 | 710007033 | Cap Battery Cable |
| BP7 | 278001392 | Open Barrel Terminal |
| BP8 | 515177996 | Terminal |
| BRK | 409209400 | Male Terminal Housing, 2 Circuits |
| BRK | 515176164 | Male Terminal |
| BRK | 515176621 | Wire Seal |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| CL | 515178349 | Female Terminal 22 AWG |
| D2 | 409012700 | Diode |
| D4 | 409012700 | Diode |
| D5 | 409012700 | Diode |
| DC1 | 710005373 | Housing |
| DC1 | 710005518 | Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DC5 | 710010578 | Housing Plug 5 Pins |
| DC5 | 710010797 | Terminal |
| DESS | 710001163 | Wire Seal |
| DESS | 710001164 | Female Terminal |
| DESS | 710001222 | Lock |
| DESS | 710007151 | Female Delphi Connector 5 Cavities |
| DESS | 710007243 | Lock |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| ECM1 | 515178596 | Terminal |
| ECM1 | 515178597 | Terminal |
| ECM1 | 515178598 | Terminal |
| ECM1 | 515178599 | Plug |
| ECM1 | 515178602 | Cover |
| ECM1 | 515178603 | Plate |
| ECM1 | 515178604 | Plate |
| ECM1 | 515178618 | Housing 56 Circuits |
| ECM1 | 515178666 | Terminal |
| EVAP | 515177192 | Female Housing, 2 Circuits |
| EVAP | 710001152 | Lock |
| EVAP | 710001163 | Wire Seal |
| EVAP | 710001164 | Female Terminal |
| FT | 278000220 | Male Connector, 2 Circuits |
| FT | 710000048 | Wire Seal |
| GREEN | 409010300 | Female Terminal |
| HIC | 710001222 | Lock |
| HIC | 710001225 | Cap |
| HIC | 710001228 | Terminal |
| HIC | 710001229 | Terminal |
| HIC | 710001233 | Seal |
| HIC | 710001332 | Seal Wire |
| HIC | 710001930 | Female Housing, 12 Circuits |
| HIC | 710006333 | Lock |
| HIC | FD | F 710001951 Housing 710001951 |
| MFS | 278002860 | Sealing Cap |
| MFS | 515178018 | Female Terminal |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 278003553 | Fuse Cover |
| PF1 | 293300198 | Seal |
| PF1 | 515177177 | Female Terminal |
| PF1 | 710000048 | Wire Seal |
| PF1 | 710000918 | Female Terminal |
| PF1 | LABEL | TCAT 710009638 Decal 710009638 |
| PF2 | 278000218 | Wire Seal |
| PF2 | 278001065 | Wire Seal |
| PF2 | 278002578 | Female Terminal |
| PF2 | 278002880 | Seal Plug |
| PF2 | 293300198 | Seal |
| PF2 | 710000048 | Wire Seal |
| PF2 | 710000890 | Female Terminal |
| PF2 | 710000918 | Female Terminal |
| PF2 | 710001630 | Terminal |
| PF2 | 710001631 | Cap |
| PF2 | 710001636 | Terminal |
| PF2 | 710001905 | Terminal Joint |
| PF2 | 710002633 | PLUG - Call your local BRP dealership |
| PF2 | 710003125 | F Terminal |
| PF2 | 710003132 | Seal Joint |
| PF2 | 710003134 | Seal Joint |
| PF2 | 710004472 | Fuse Holder Support |
| PF2 | 710005623 | Fusebox Ass'y |
| PF2 | 710007491 | Cover This part replaces 710004120. |
| PF2 | 710008508 | Terminal |
| PF2 | LABEL | STD 710009639 Decal 710009639 |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| PF6 | 278001325 | Fuse Holder |
| PF6 | 710000357 | Female Terminal |
| PF7 | 278001325 | Fuse Holder |
| PF7 | 710000357 | Female Terminal |
| PF9 | 278001482 | Seal |
| PF9 | 278002578 | Female Terminal |
| PF9 | 710004260 | BOX_FUSE - Call your local BRP dealership |
| PF9 | 710009915 | Lock |
| SB | 278001482 | Seal |
| SB | 710001134 | Female Terminal |
| SB | 710002043 | Lock |
| SB | 710002177 | Housing |
| SS | 515177192 | Female Housing, 2 Circuits |
| SS | 710001152 | Lock |
| SS | 710001153 | Seal Wire |
| SS | 710001164 | Female Terminal |
| STSW | 409012100 | Female Terminal |
| STSW | 710000402 | Wire Seal |
| SWW | 710002000 | Housing |
| SWW | 710005491 | Female Terminal |
| SWWRC | 278000223 | Female Terminal |
| SWWRC | 278000273 | Male Housing, 3 Circuits |
| SWWRC | 278001065 | Wire Seal |
| WSS | REAR | M 515177201 Housing 515177201 |
| XR3 | 278000770 | Insulated Sheath |
| XR3 | 710000421 | Female Terminal |
| YAW | 710003730 | Housing |
| YAW | 710006230 | Wire Seal |
| 5000 | 710009331 | Main Wiring Harness |
| 5000a | 278004473 | Connector Female 4 Cavities |
| 5000f | 710011271 | Decal |
| 5000g | 710009638 | Decal |
| 5000h | 710009639 | Decal |
| 5000j | 710009658 | Battery Cable Cap |
| 5000m | 710004472 | Fuse Holder Support |
| 5000n | 710009443 | Wiring Harness Support |
| 5000p | 710009301 | Fuse Holder Support |
| 5000r | 710010578 | Housing Plug 5 Pins |
| 5000s | 710010884 | Harness Support Post |
| 5000t | 250000959 | Screw PT Type K-50 X 16 |
