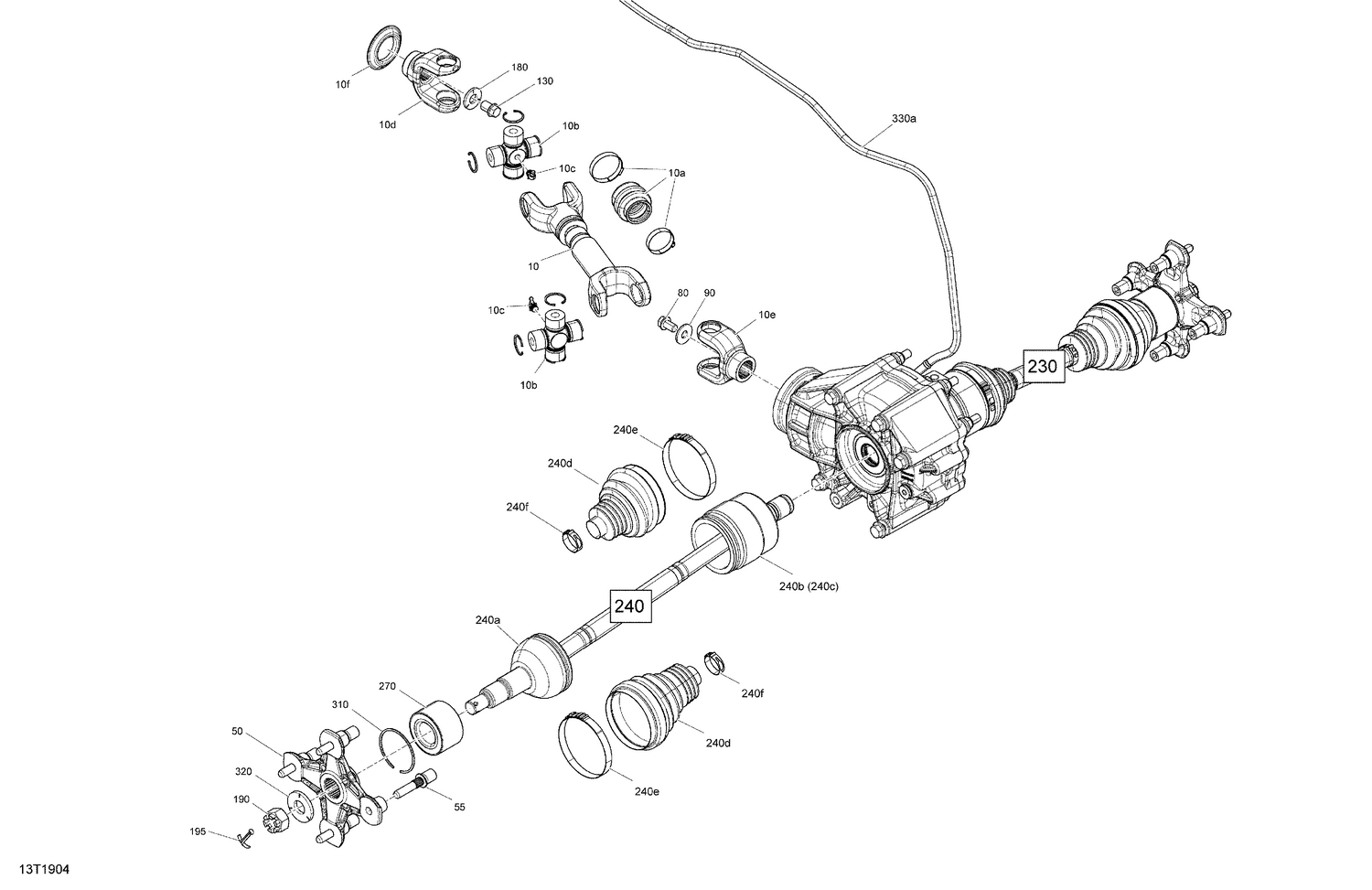

08- Rear Drive
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10c | 715900295 | Grease Fitting |
| 10d | 715900436 | Joint |
| 10e | 715900499 | Yoke |
| 10f | 705501123 | Protector |
| 15 | 705501123 | Protector |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 195 | 250400071 | Cotter Pin |
| 230a | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 230b | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 230c | 705501781 | Circlip |
| 230e | 715900241 | Oetiker Clamp, 82.1 mm |
| 230f | 715900242 | Oetiker Clamp, 27.3 mm |
| 240a | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 240b | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 240c | 705501781 | Circlip |
| 240e | 715900241 | Oetiker Clamp, 82.1 mm |
| 240f | 715900242 | Oetiker Clamp, 27.3 mm |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 280 | 705400928 | Wheel Cap |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 |
| 330a | 219704389 | Polyurethane Hose 4000MM Long |
