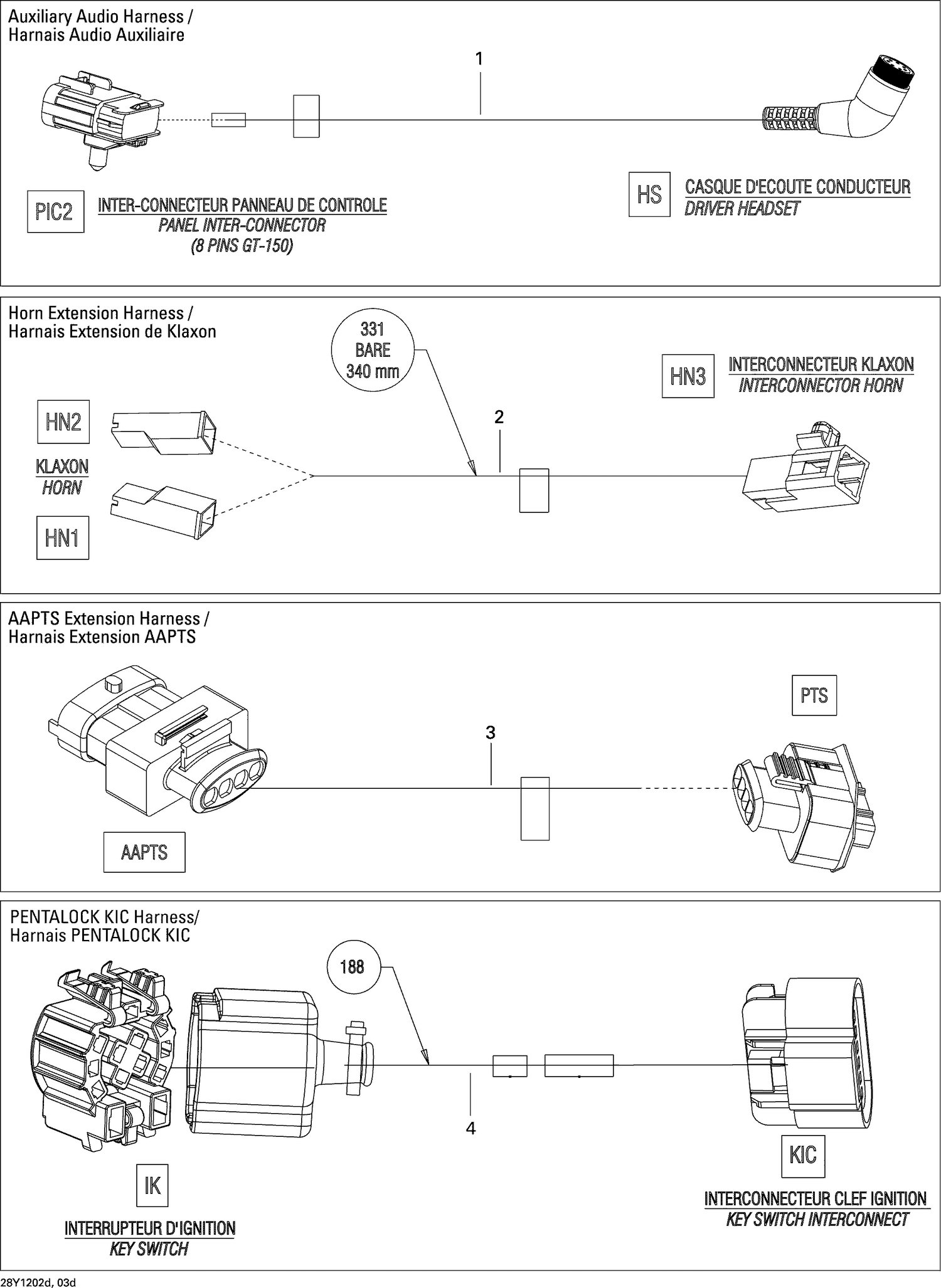

10- Electrical Harness , Miscellaneous
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| AAPTS | 415128501 | Seal |
| AAPTS | 515176839 | TERMINAL - Call your local BRP dealership |
| AAPTS | 710001885 | HOUSING - Call your local BRP dealership |
| HN1 | 409010100 | Female Terminal |
| HN1 | 409010400 | Female Terminal Housing, 1 Circuit |
| HN2 | 409010100 | Female Terminal |
| HN2 | 409010400 | Female Terminal Housing, 1 Circuit |
| HN3 | 515175232 | Male Terminal |
| HN3 | 710000667 | Male Housing, 2 Circuits |
| IK | 414115200 | Tie-Rap 180 mm |
| IK | 710001128 | HOUSING - Call your local BRP dealership |
| IK | 710001130 | FEMALE TERMINAL - Call your local BRP dealership |
| IK | 710001338 | CAP - Call your local BRP dealership This part replaces 710001129. |
| KIC | 710001231 | Housing |
| KIC | 710001332 | Seal Wire |
| KIC | 710001863 | TERMINAL - Call your local BRP dealership |
| PTS | 415128501 | Seal |
| PTS | 515176410 | Male Connector |
| PTS | 710001137 | Female Terminal |
| 188 | 409902000 | Tubing 12 mm |
| 331 | 219704446 | PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership |
