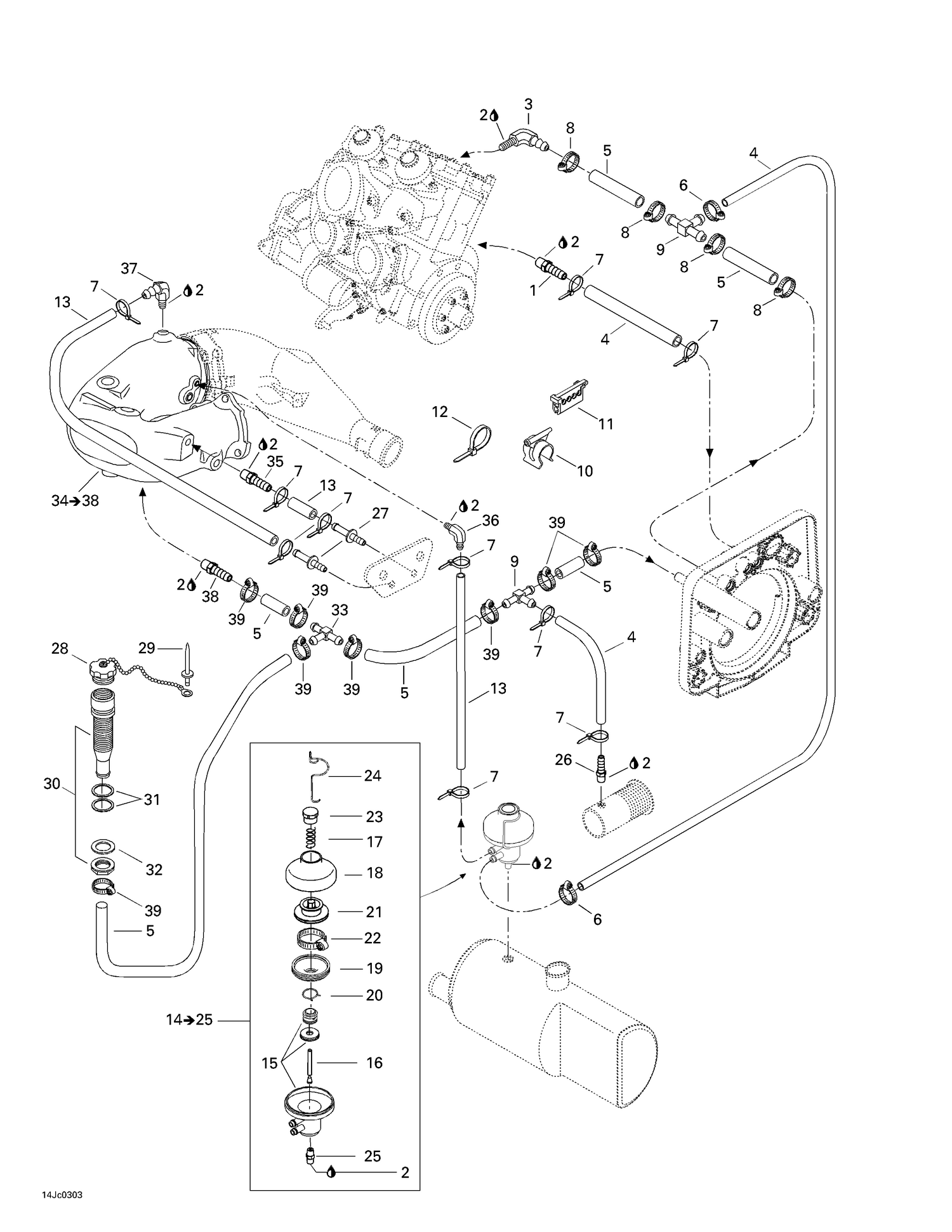

| Ref | Part Number | Description |
|---|
| 1 |
293710066 |
MALE CONNECTOR - Call your local BRP dealership |
| 2 |
219704454 |
Was 293800013 Loctite 56765 |
| 3 |
293700023 |
Elbow Fitting 90° |
| 4 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 5 |
219704394 |
Was 276000001 Hose 12.5 mm |
| 6 |
293650170 |
Tridon Gear Clamp This part replaces 293650128. |
| 7 |
293750001 |
Tie Wrap 94 mm |
| 8 |
293650172 |
Tridon Gear Clamp This part replaces 293650037. |
| 9 |
293710116 |
T-Fitting This part replaces 293710025. |
| 10 |
278000559 |
COLLAR SUPPORT - Call your local BRP dealership |
| 12 |
414115200 |
Tie-Rap 180 mm |
| 13 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 15 |
Not |
Available As Spare Part - Housing |
| 16 |
274000423 |
FEEDING ROD - Call your local BRP dealership |
| 17 |
274000382 |
SPRING 44 MM - Call your local BRP dealership |
| 18 |
420911552 |
Valve Cover |
| 19 |
420260721 |
Bellow |
| 20 |
420838190 |
SPRING CLAMP - Call your local BRP dealership |
| 21 |
Not |
Available As Spare Part - Exhaust Valve |
| 22 |
293650065 |
Rivalair Clamp |
| 23 |
420241221 |
Adjuster Screw |
| 24 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 290838083. |
| 25 |
293700010 |
MALE CONNECTOR - Call your local BRP dealership |
| 26 |
293710017 |
MALE CONNECTOR - Call your local BRP dealership |
| 27 |
291000306 |
BLEED FITTING - Call your local BRP dealership |
| 28 |
293000055 |
PLUG - Call your local BRP dealership |
| 29 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 30 |
293710081 |
FITTING - Call your local BRP dealership |
| 31 |
293250028 |
GASKET - Call your local BRP dealership |
| 32 |
293050003 |
WASHER - Call your local BRP dealership |
| 33 |
293710053 |
T-FITTING - Call your local BRP dealership |
| 35 |
293710037 |
Male Connector |
| 36 |
293710018 |
Elbow Fitting 90° |
| 37 |
293710048 |
Elbow Fitting 90° |
| 38 |
293710021 |
Male Connector |
