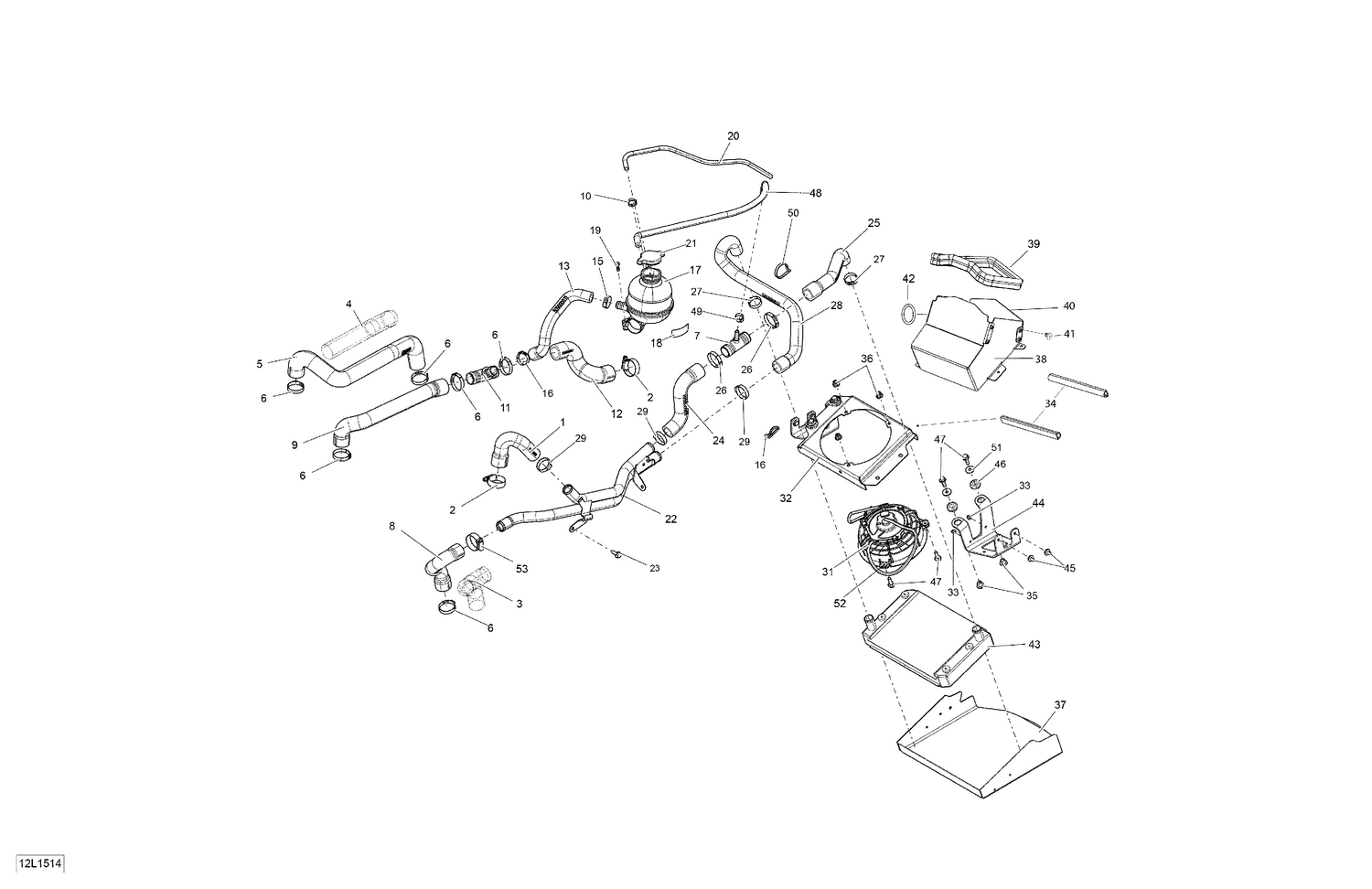

01- Cooling System
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000858 | HOSE-OUTLET EN |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000513 | PROTECTOR TUBE |
| 4 | 509000513 | PROTECTOR TUBE |
| 5 | 509000859 | RADIATOR HOSE |
| 6 | 509000529 | CRIMP CLAMP |
| 7 | 509000510 | T-FITTING |
| 8 | 509000888 | RADIATOR HOSE |
| 9 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 10 | 293650025 | CRIMP CLAMP |
| 11 | 509000372 | T-FITTING |
| 12 | 509000864 | HOSE-RADIATOR |
| 13 | 509001063 | Filling Hose This part replaces 509000811. |
| 15 | 509000442 | CRIMP CLAMP |
| 16 | 293650099 | CRIMP CLAMP |
| 17 | 509000875 | TANK-COOLANT |
| 18 | 516005904 | Warning Decal |
| 19 | 241151640 | SCREW-PT.HEX.FLANGE K50 X 16 |
| 20 | 509000775 | HOSE |
| 21 | 509000180 | Radiator Pressure Cap |
| 22 | 509000800 | WATER PIPE |
| 23 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 24 | 509000854 | HOSE-RADIATOR |
| 25 | 509000862 | HOSE-RADIATOR |
| 26 | 509000162 | CLAMP-GEAR |
| 27 | 293650099 | CRIMP CLAMP |
| 28 | 509000855 | HOSE-RADIATOR |
| 29 | 293650141 | CRIMP CLAMP |
| 30 | 414115200 | Tie-Rap 180 mm |
| 31 | 709200573 | Fan Ass'y This part replaces 709200230. |
| 32 | 509000928 | FAN SUPPORT |
| 33 | 390909200 | Avex Rivet |
| 34 | 509000823 | D- SEAL 12 X15 |
| 35 | 293900100 | BUSHING |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 37 | 509000893 | AIR DEFLECTOR |
| 38 | 509000899 | AIR OUT DEFLECTOR |
| 39 | 293250047 | SEAL-NEOPRENE |
| 40 | 509000929 | AIR OUT DEFLECTOR PLATE |
| 41 | 390909200 | Avex Rivet |
| 42 | 293720106 | GROMMET 30X24X2 |
| 43 | 509000488 | RADIATOR |
| 44 | 509000890 | SUPPORT LH |
| 44 | 509000933 | RH Support This part replaces 509000889. |
| 45 | 250000574 | SCREW-HEX.FLANGE LINDLOCK M6 X 12 |
| 46 | 709000582 | Grommet This part replaces 293720053. |
| 47 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 48 | 509000860 | BREATHER HOSE |
| 49 | 293650047 | Crimp Clamp, 15.3-706R |
| 50 | 414115200 | Tie-Rap 180 mm |
| 51 | 250000082 | HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership |
