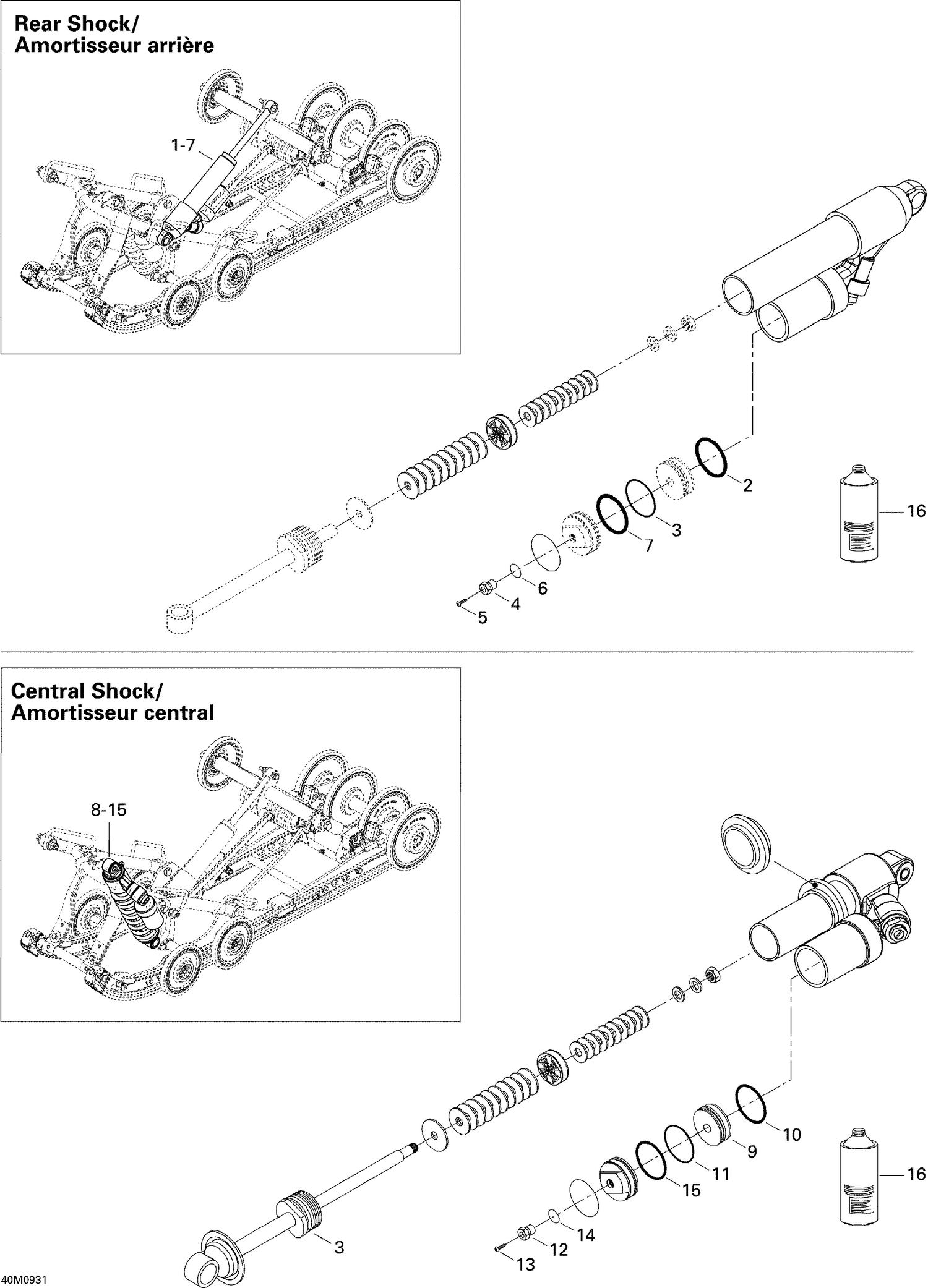

08- Take Apart Shock, Rear
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191925 | Rear Shock |
| 2 | 415093807 | O-Ring |
| 3 | 415093806 | Piston Ring |
| 4 | 505070398 | Air Valve |
| 5 | 505070399 | Screw |
| 6 | 505070400 | O-Ring |
| 7 | 415093804 | O-Ring |
| 8 | 503191923 | Center Shock |
| 9 | 505071016 | Free Piston |
| 10 | 415093807 | O-Ring |
| 11 | 415093806 | Piston Ring |
| 12 | 505070398 | Air Valve |
| 13 | 505070399 | Screw |
| 14 | 505070400 | O-Ring |
| 15 | 415093804 | O-Ring |
