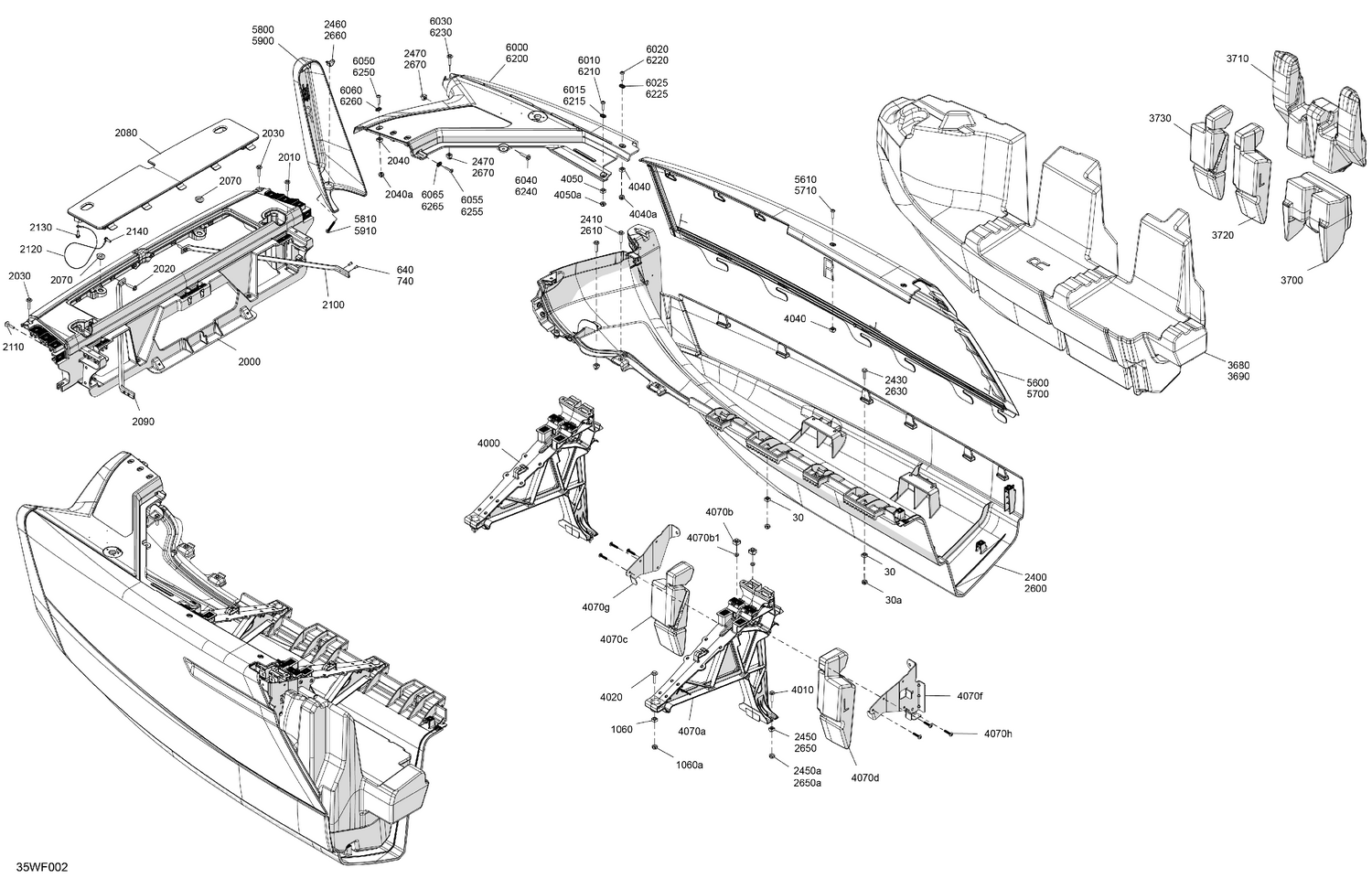

| Ref | Part Number | Description |
|---|
| 30a |
232561200 |
Brass Elastic Stop Nut M6 |
| 640 |
293150039 |
Pop Rivet 3/16" |
| 740 |
293150039 |
Pop Rivet 3/16" |
| 1060a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2000 |
291006557 |
Deep Black, Deflector Trim |
| 2010 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 2020 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 2030 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 2040a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2070 |
705000321 |
Oval Washer |
| 2080 |
291006558 |
Deep Black, Acces Cover |
| 2090 |
291005632 |
LH Trim Reinforcement |
| 2100 |
291005640 |
RH Trim Reinforcement |
| 2110 |
250001164 |
Hex SEMS Screw M6X30 |
| 2120 |
291005711 |
Retaining Cable |
| 2130 |
243162060 |
Hex. Flange Screw M6.81 x 20 |
| 2140 |
243162060 |
Hex. Flange Screw M6.81 x 20 |
| 2400 |
291006412 |
LH Front Float Deflector |
| 2410 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 2430 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 2450a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2460 |
291006420 |
Plastite Insert 6.81 |
| 2470 |
291005889 |
Platite Insert 6.81 |
| 2600 |
291006413 |
RH Float Deflector |
| 2610 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 2630 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 2650a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2660 |
291006420 |
Plastite Insert 6.81 |
| 2670 |
291005889 |
Platite Insert 6.81 |
| 3680 |
292002789 |
LH Front Float |
| 3690 |
292002790 |
RH Front Float |
| 3700 |
291005639 |
Lower Float Support |
| 3710 |
291005845 |
Upper Float Support |
| 3720 |
291005637 |
LH Float Support |
| 3730 |
291005636 |
RH Float Support |
| 4000 |
291004895 |
Interlocking Tile Support |
| 4010 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 4020 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 4040a |
232561200 |
Brass Elastic Stop Nut M6 |
| 4050a |
232561200 |
Brass Elastic Stop Nut M6 |
| 4070a |
291004895 |
Interlocking Tile Support |
| 4070b1 |
232561200 |
Brass Elastic Stop Nut M6 |
| 4070c |
291005636 |
RH Float Support |
| 4070d |
291005637 |
LH Float Support |
| 4070f |
291006538 |
Machined Support Reinforcement |
| 4070g |
291006539 |
Machined Support Reinforcement |
| 4070h |
250000879 |
Plastite Torx Screw M6.81X30 |
| 5600 |
291006173 |
Dusty Navy, LH Front Panel |
| 5610 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 5700 |
291006174 |
Dusty Navy, RH Front Panel |
| 5710 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 5800 |
291006555 |
Deep Black, LH Front Bumper |
| 5810 |
250001004 |
Screw-Plastite Torx Cone Head M6.81 X 60 |
| 5900 |
291006556 |
Deep Black, RH Front Bumper |
| 5910 |
250001004 |
Screw-Plastite Torx Cone Head M6.81 X 60 |
| 6000 |
291006175 |
Dusty Navy, LH Front Panel Trim |
| 6010 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6015 |
291003880 |
Oval Washer |
| 6020 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6025 |
291003880 |
Oval Washer |
| 6030 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 6040 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 6050 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6055 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6060 |
291003880 |
Oval Washer |
| 6065 |
291003880 |
Oval Washer |
| 6200 |
291006176 |
Dusty Navy, RH Front Panel Trim |
| 6210 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6215 |
291003880 |
Oval Washer |
| 6220 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6225 |
291003880 |
Oval Washer |
| 6230 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 6240 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 6250 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6255 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 6260 |
291003880 |
Oval Washer |
