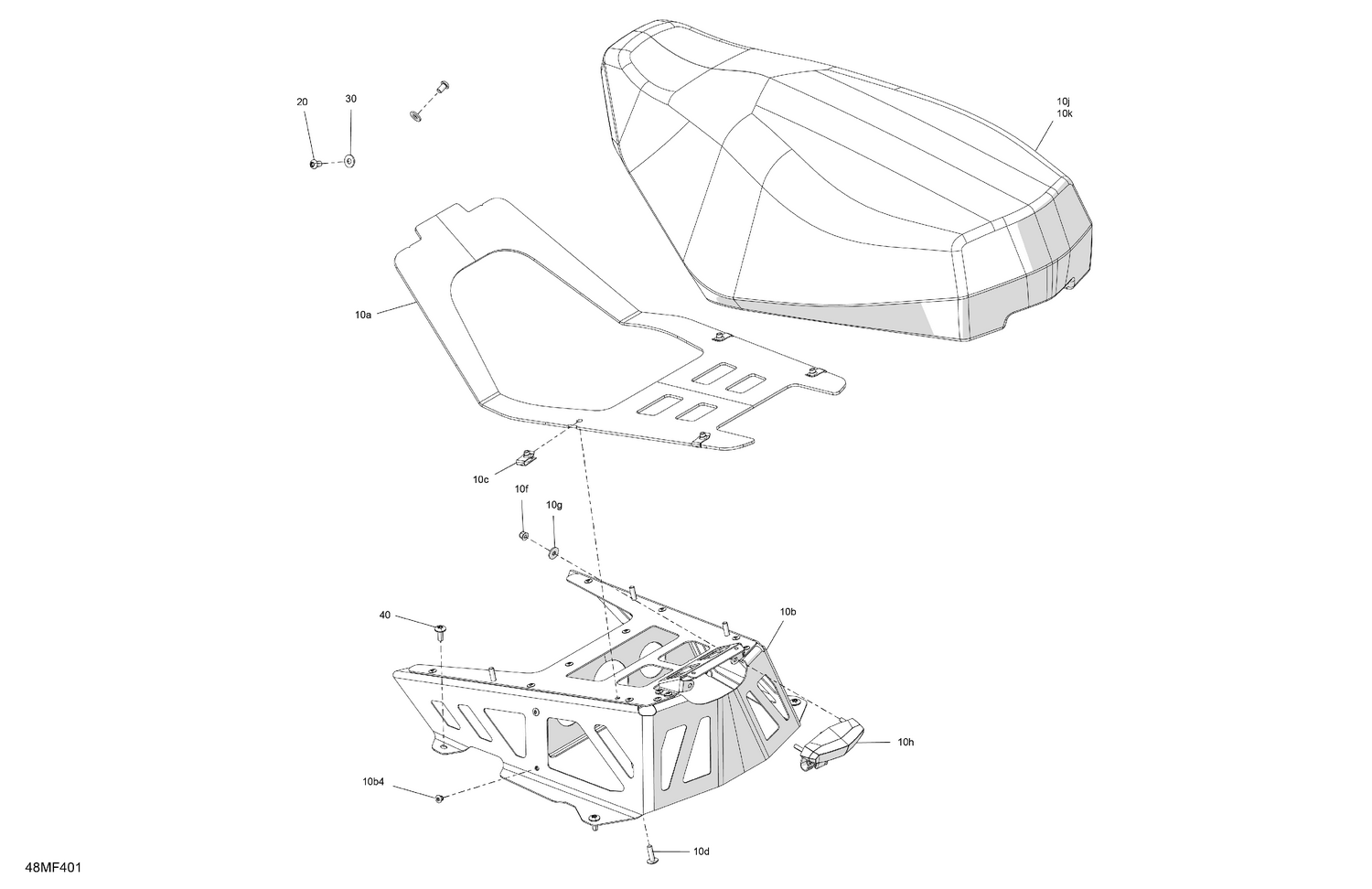

07- Body - Seat
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006984 | Seat Base |
| 10b | 510008217 | Seat Base Ass'y |
| 10b4 | 293150263 | Black, 3/16" Pop Rivet |
| 10c | 250100198 | Panel Nut M6 X 1.0 |
| 10d | 250000722 | Torx Screw M6 X 20 |
| 10f | 233251494 | Elastic Flange Nut M5 |
| 10g | 250200025 | Washer M5 |
| 10h | 520003071 | Taillight |
| 10j | 510008222 | Seat Foam |
| 10k | 510008284 | Seat Cover |
| 20 | 250001158 | Torx Screw Button Head M6X10 |
| 30 | 250200039 | Flat Washer |
| 40 | 250000717 | Torx Head Screw M6 X 16 |
