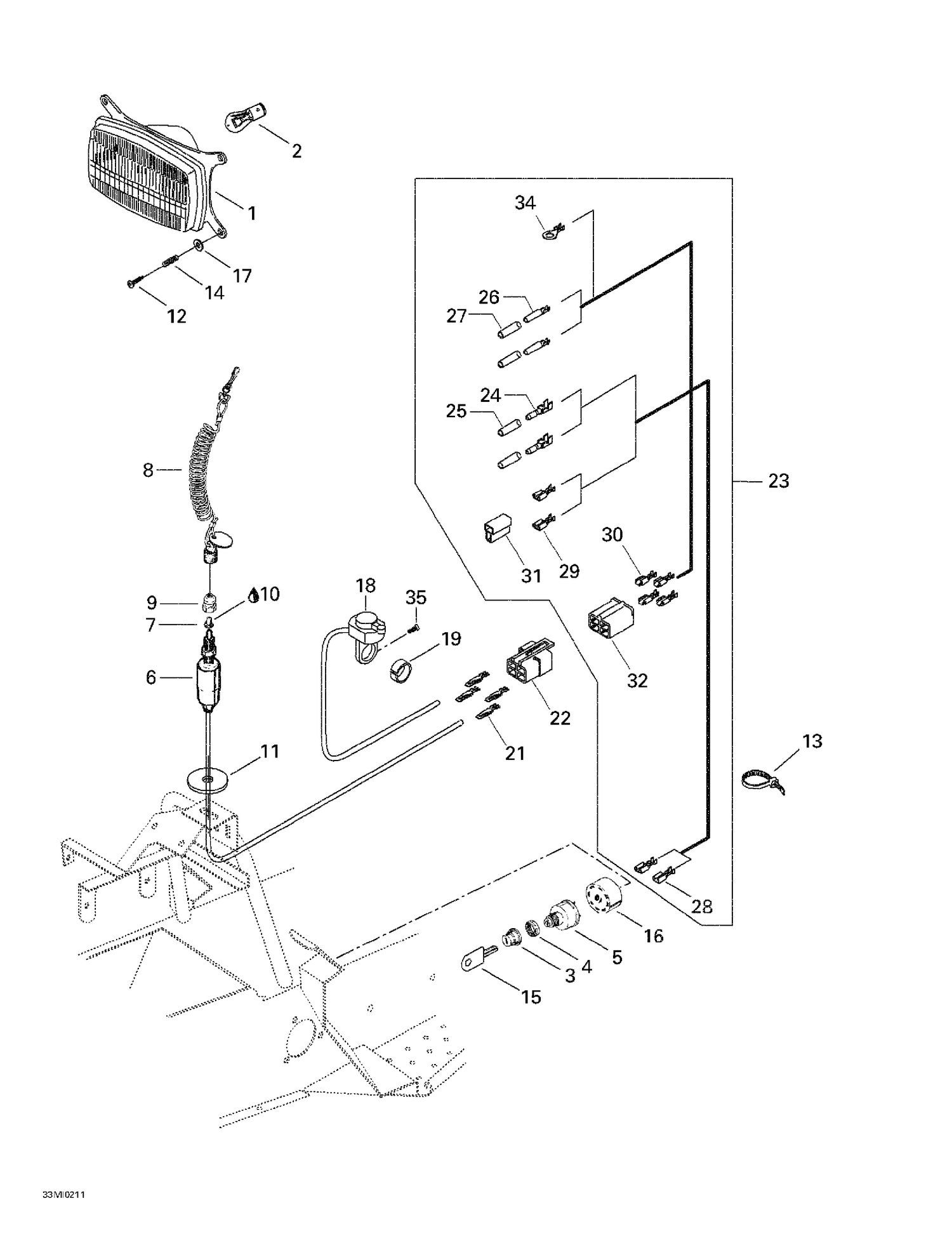

| Ref | Part Number | Description |
|---|
| 2 |
410609400 |
Bulb |
| 3 |
570013700 |
Switch Boot |
| 4 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 5 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113601. |
| 6 |
515175653 |
Brake Switch This part replaces 515175571. |
| 7 |
570151100 |
Plunger Cap |
| 8 |
515176464 |
CAP ASS'Y - Call your local BRP dealership This part replaces 515175105. |
| 9 |
515145900 |
Switch Nut |
| 10 |
293550004 |
Dielectric Grease, 150 g This part replaces 413701700. |
| 11 |
517302008 |
Spacer |
| 12 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 13 |
293750001 |
Tie Wrap 94 mm |
| 14 |
517168600 |
Spring |
| 15 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 16 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 17 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 18 |
515177454 |
KILL SWITCH - Call your local BRP dealership This part replaces 410105500. |
| 19 |
506151268 |
Spacer |
| 20 |
515170100 |
Harness-assy. |
| 21 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 22 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 24 |
278000230 |
Male Terminal |
| 25 |
270001008 |
Push Nut |
| 26 |
278001009 |
Female Terminal |
| 27 |
270001007 |
Fitting |
| 28 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 29 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 30 |
561503200 |
Female Terminal PACKARD |
| 31 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 32 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 33 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 34 |
278000992 |
Open Barrel |
| 293750002 |
Tie |
Wrap 142 mm 293750002 |
