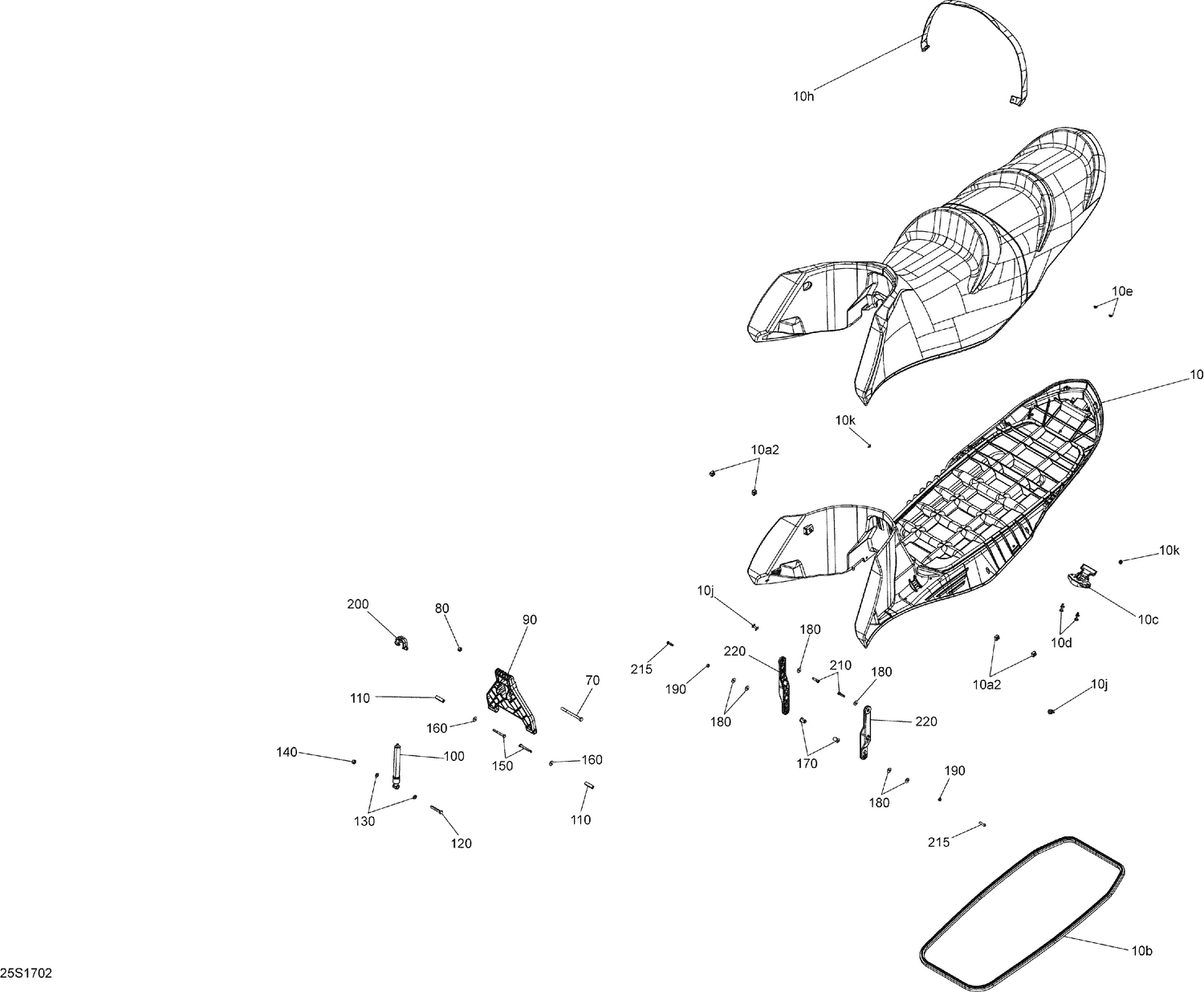

09- Seat - All Models
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a2 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 10b | 219704366 | Was 293200062 Seal |
| 10c | 269700116 | Latch Ass'y |
| 10d | 293150151 | Rivet 1/4" |
| 10e | 293720067 | Grommet |
| 10h | 269002869 | STRAP-SEAT - Call your local BRP dealership |
| 10j | 293150067 | Rivet |
| 10k | 293720067 | Grommet |
| 70 | 230080060 | HEX. SCREW M8 X 100 - Call your local BRP dealership |
| 80 | 232581200 | Hex. Elastic Nut M8 Brass |
| 90 | 269502120 | Center Arm |
| 100 | 269002895 | Shock |
| 110 | 269001589 | Spacer |
| 120 | 207085060 | HEX. SCREW M8 X 50 - Call your local BRP dealership |
| 130 | 234081600 | Stainless, Flat Washer 8 mm |
| 140 | 232581200 | Hex. Elastic Nut M8 Brass |
| 150 | 207265560 | Hex. Screw M6 X 55, Scotch Grip |
| 160 | 234062600 | Flat Washer M6, Stainless |
| 170 | 250100150 | Expansion Nut M6 X 1 |
| 180 | 234062600 | Flat Washer M6, Stainless |
| 190 | 269001588 | Spacer |
| 200 | 269002077 | End Fitting |
| 210 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 215 | 250000328 | Torx Screw M6 X 25, Scotch Grip |
