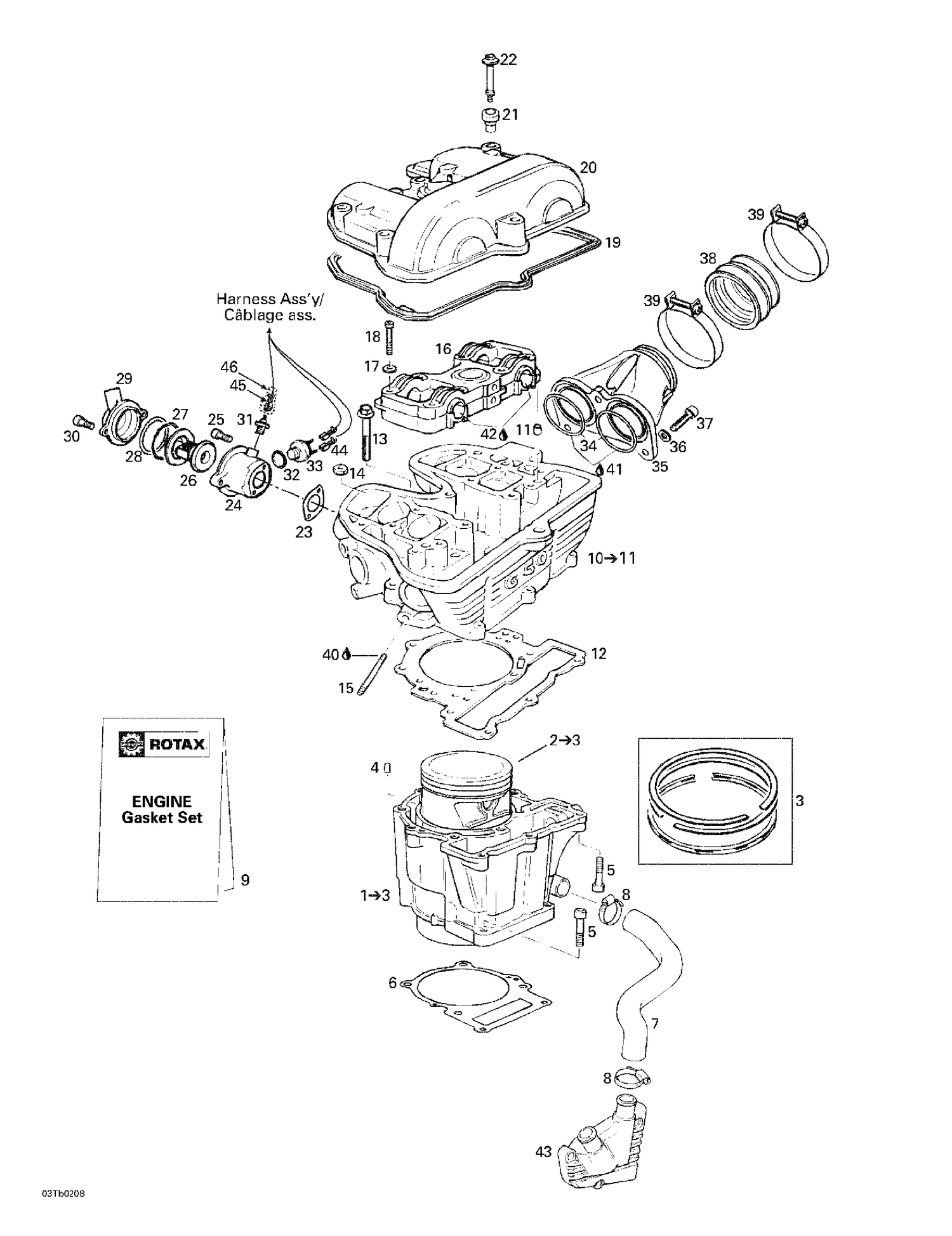

| Ref | Part Number | Description |
|---|
| 3 |
420295184 |
Piston Ring Set This part replaces 711295184. |
| 4 |
420929650 |
Drive Pin 5 X 10 |
| 5 |
205063044 |
Socket Head Screw M6 X 30 |
| 6 |
711650010 |
Gasket |
| 7 |
711222450 |
Water Cooling Hose |
| 8 |
293650051 |
Tridon Gear Clamp This part replaces 711651170. |
| 9 |
711294768 |
Gasket Set |
| 11 |
420632010 |
Center Pin 8 X 12 This part replaces 290632010. |
| 12 |
420650020 |
GASKET - Call your local BRP dealership This part replaces 711650020. |
| 13 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 14 |
233101414 |
Hex. Flange Nut M10 |
| 15 |
420240362 |
STUD M8 X 58 - Call your local BRP dealership This part replaces 711240362. |
| 16 |
711211326 |
Camshaft Bridge |
| 17 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 18 |
711241820 |
Socket Head Screw M6 x 45 |
| 19 |
420250900 |
GASKET - Call your local BRP dealership This part replaces 711250900. |
| 20 |
711211301 |
Valve Cover |
| 21 |
711260050 |
Rubber Bushing |
| 22 |
420240906 |
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership This part replaces 711240906. |
| 23 |
711650060 |
Gasket |
| 24 |
711222430 |
Thermostat Housing |
| 25 |
711840518 |
Socket Head Screw M5 x 18 |
| 26 |
420222463 |
Thermostat This part replaces 711222463. |
| 27 |
711245770 |
Corrugated Washer |
| 28 |
711650030 |
O-Ring |
| 29 |
711222440 |
Thermostat Cover |
| 30 |
711840512 |
Socket Head Screw M5 x 16 |
| 31 |
711265392 |
Thermostat Fan Switch |
| 32 |
711230380 |
O-Ring |
| 33 |
420265396 |
Inter.Thermost.*Switch-Thermo Fan This part replaces 711265390. |
| 34 |
293300059 |
O-Ring |
| 35 |
711267230 |
Intake Adaptor |
| 36 |
234061410 |
Flat Washer 6 mm |
| 37 |
205062544 |
Socket Head Screw M6 X 25 |
| 38 |
420267240 |
Carburator Flange 52 mm This part replaces 711267240. |
| 39 |
293650090 |
Norma Gear Clamp |
| 40 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 41 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 42 |
Not |
Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
| 43 |
711211270 |
Waterpump Cover |
| 44 |
710000038 |
Female Terminal |
| 45 |
710000114 |
FEMALE TERMINAL - Call your local BRP dealership |
