Home / BRP / JOHNSON / 1975 / 70 / 70ES75B 1975 / INTAKE MANIFOLD

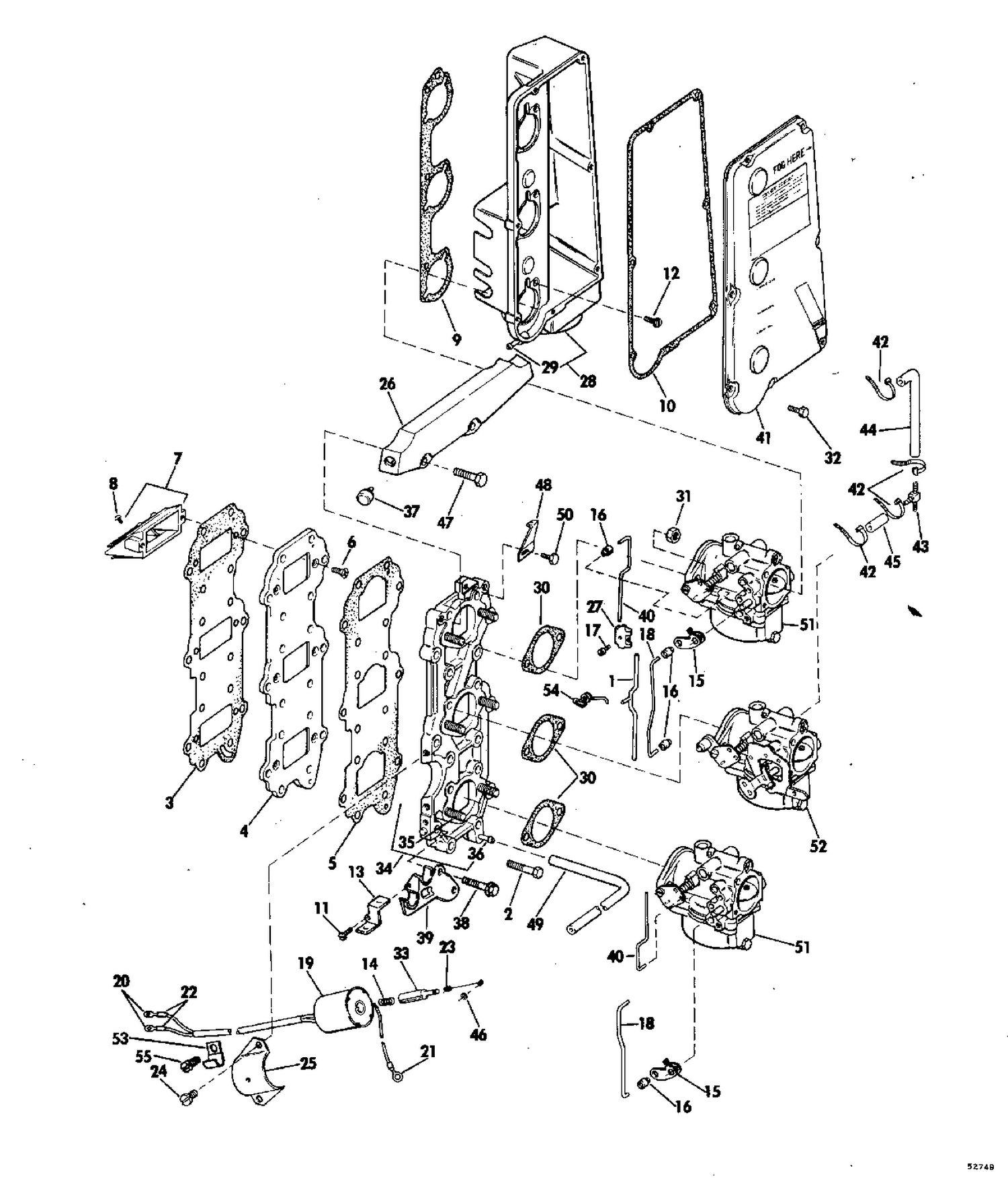

INTAKE MANIFOLD

INTAKE MANIFOLD

Parts (47)

RefPart NumberDescription
1 0384564 LINK & PIN, Middle arm
2 0554306 SCREW, Cyl. to crankcase
3 0326926 GASKET, Plat to manifold This part replaces 0317307.
4 0317306 BASE, Leaf plate
5 0317305 GASKET, Manifold to base
6 0307609 SCREW
7 0389731 LEAF PLATE ASSEMBLY This part replaces 0382442.
9 0314115 GASKET, Air silencer
10 0314322 GASKET, Base to cover
11 0310626 SCREW, Retainer
12 0314496 SCREW, Air silencer
13 0318188 RETAINER, Trunnion
13 0320180 RETAINER, Trunnion
14 0314739 SPRING, Plunger to solenoid
15 0378984 ARM & SCREW
16 0313329 LOCKWASHER, Carburetor link
17 0303686 SCREW, Fastener
18 0314310 LINK, Carburetor choke
19 0386675 SOLENDOID ASSY.
23 0314193 SPRING, Choke solenoid
24 0319292 SCREW, Clamp This part replaces 0308762.
25 0314327 CLAMP, Choke solenoid
26 0339776 BRACKET, Engine cover This part replaces 0316647.
27 0318974 FASTENER, Cable clamp
28 0384186 BASE & NIPPLE ASSEMBLY
30 0325092 GASKET This part replaces 0314477.
31 0316355 BUT, Carburetor mounting
32 0314576 SCREW
33 0313636 PLUNGER
34 0386662 MANIFOLD, Intake
37 0314021 BUMBER, Exhaust manifold
38 0316491 SCREW, Anchor block to manifold
39 0318186 ANCHOR BLOCK, Trunnion
39 0319760 ANCHOR BLOCK, Trunnion
40 0316500 LINK, Arm
41 0320477 COVER,Air silencer
42 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
44 0333387 FLEXIBLE, soupape de retenue vers raccord inférieur This part replaces 0319737.
46 0307529 JOINT TORIQUE, galet vers contre-came
47 0306418 VIS, ancrage
48 0332682 TIMING POINTER This part replaces 0318328.
49 0203909 HOSE, Oil return This part replaces 0303171.
50 0303212 VIS, collier & capot
51 0386268 CARBURETOR ASSY, Upper
52 0387091 CARBURETOR ASSY.,Middle
53 0511514 CLAMP, Cable This part replaces 0317883.
54 0314807 SPRING
