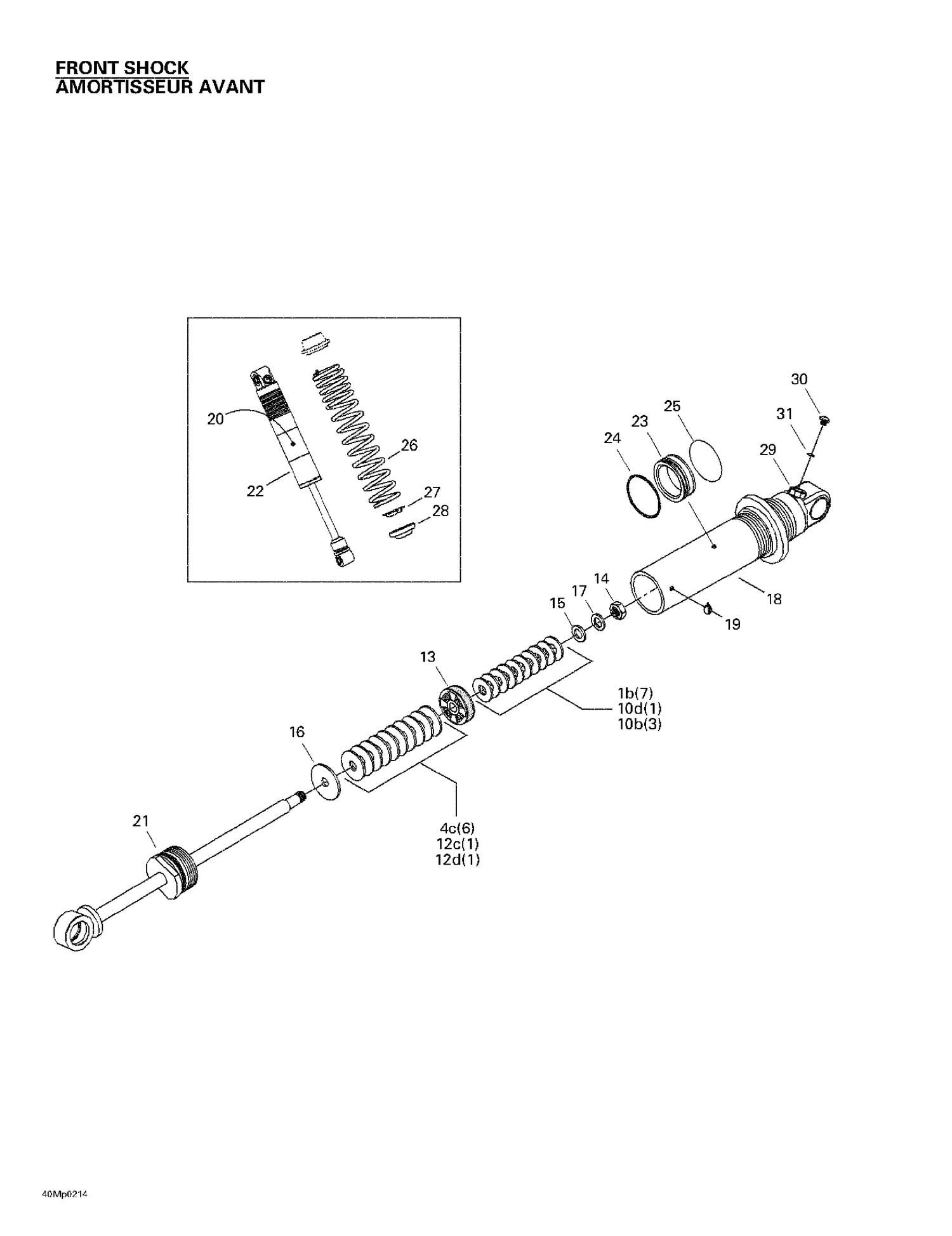

| Ref | Part Number | Description |
|---|
| 1a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 1b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 1c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 2a |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 2b |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 3a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 3b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 3c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 4a |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 4b |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 5a |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 6a |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 6b |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 6c |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 7a |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 7b |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 8a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36) |
| 9a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 9b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 9c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 9d |
415083900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 10a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 10b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 10c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 10d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 11a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 11b |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 11c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 11d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 12a |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 12b |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 12c |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
| 12d |
Not |
Available As Spare Part - Leaf Valve Ø12 x 0.254 (C36) |
| 13 |
414888304 |
Piston (C36) |
| 14 |
Not |
Available As Spare Part - Nut |
| 15 |
Not |
Available As Spare Part - Valve Stopper |
| 16 |
Not |
Available As Spare Part - Valve Stopper |
| 17 |
Not |
Available As Spare Part - Washer |
| 18 |
Not |
Available As Spare Part - Body Cylinder |
| 19 |
293600035 |
Shock Oil, 1 Liter |
| 20 |
516000183 |
Shock Decal |
| 21 |
Not |
Available As Spare Part - Piston Rod Ass'y |
| 22 |
505070910 |
Front Shock |
| 23 |
503189309 |
FREE PISTON - Call your local BRP dealership |
| 24 |
414888312 |
O-Ring |
| 25 |
503189308 |
Piston Ring |
| 26 |
505070852 |
Spring |
| 27 |
706200785 |
Cap This part replaces 503141600. |
| 28 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 29 |
505070398 |
Air Valve |
| 30 |
505070399 |
Screw |
