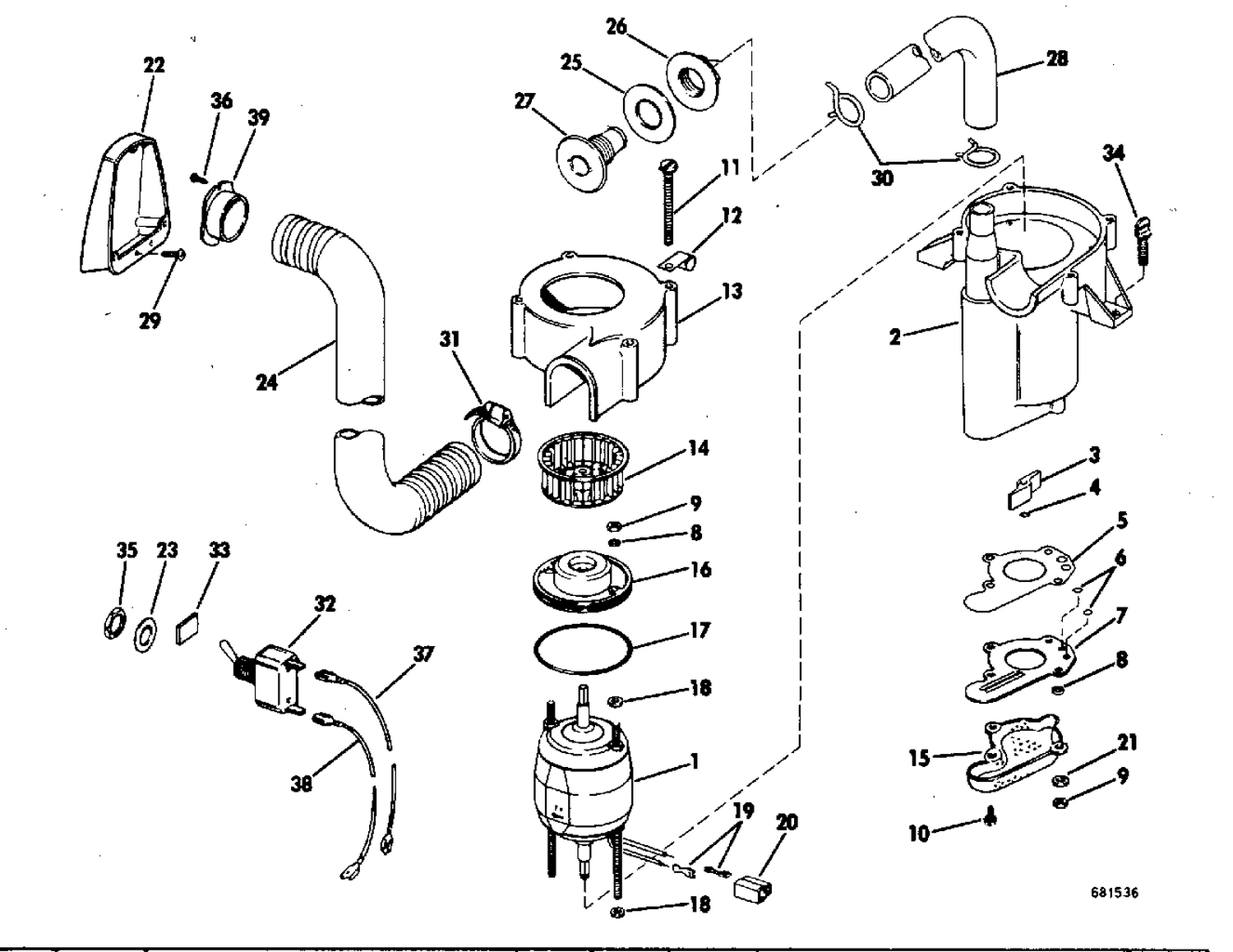

| Ref | Part Number | Description |
|---|
| 1 |
0976850 |
MOTOR ASSEMBLY |
| 2 |
0975028 |
HOUSING |
| 3 |
0900083 |
IMPELLER |
| 4 |
0900077 |
RETAINING RING |
| 5 |
0900086 |
GASKET |
| 6 |
0900089 |
O RING |
| 7 |
0900084 |
COVER PLATE, Lower |
| 8 |
0975025 |
SEAL |
| 10 |
0308691 |
SCREW |
| 11 |
0904757 |
SCREW |
| 12 |
0510371 |
CABLE CLAMP |
| 13 |
0904758 |
COVER PLATE, Upper |
| 14 |
0904759 |
BLOWER WHEEL |
| 15 |
0903236 |
SCREEEN,Bilge pump |
| 16 |
0975026 |
END PLATE & SEAL ASSEMBLY |
| 17 |
0900082 |
SEAL, End plate |
| 18 |
0901432 |
LOCKWASHER |
| 19 |
0900259 |
TERMINAL |
| 21 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 22 |
0121865 |
DEFLECTOR, Air outlet |
| 24 |
0121864 |
HOSE, Blower |
| 25 |
0900509 |
GASKET |
| 26 |
0900510 |
FLANGE NUT |
| 27 |
0903116 |
OUTLET, Thru hull |
| 28 |
0904328 |
HOSE, Bilge pump |
| 29 |
0306005 |
SCREW, Deflector |
| 29 |
0307934 |
SCEW, Deflector |
| 30 |
0900670 |
CLAMP, Water hose |
| 31 |
0977882 |
CLAMP |
| 32 |
0975257 |
SWITCH ASSEMBLLY |
| 33 |
0121862 |
CAUTION PLATE |
| 34 |
0901224 |
SCREW |
| 35 |
0900135 |
FACE NUT |
| 36 |
0310127 |
SCREW |
| 37 |
0379374 |
LEAD, Switch to connector |
| 38 |
0379375 |
LEAD, Switch to fuse block |
| 0172071 |
0172071 |
BILGE PUMP KIT |
| 0977856 |
0977856 |
BILGE PUMP & VENT FAN ASSEMBLY |
