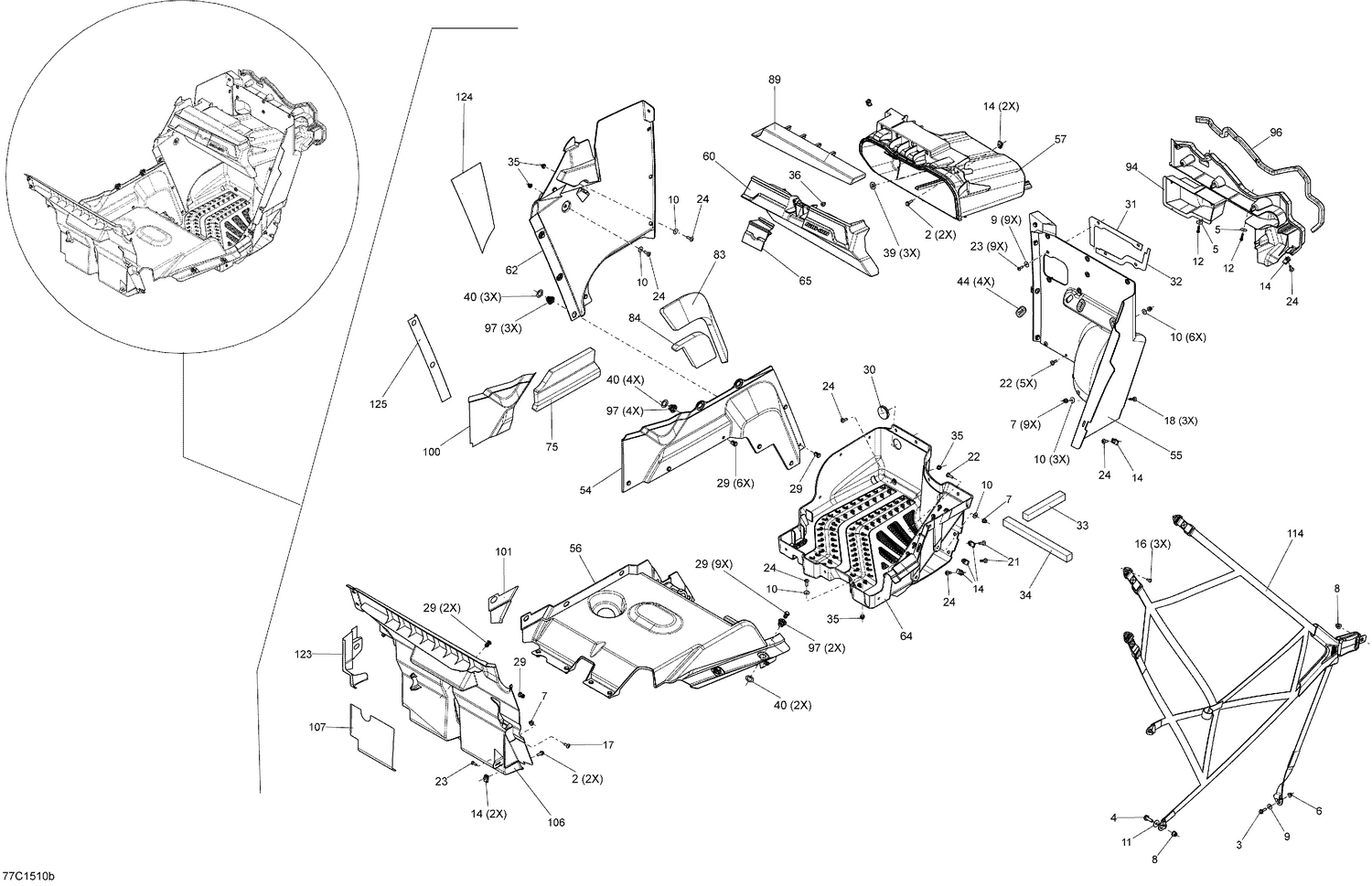

09- Cab Interior _Passenger Side_77C1510b
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207682534 | Hex. Flange Screw M8 X 25 |
| 5 | 224060201 | Flat Washer |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233261494 | Hex. Flange Elastic Nut M6 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 234062410 | Flat Washer 6 mm |
| 10 | 234062670 | Stainless Steel Flat Washer |
| 11 | 234082410 | Flat Washer 8 mm |
| 12 | 241152060 | Hex. Flange Screw K50 X 20 |
| 14 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 17 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 18 | 250000284 | Torx Screw M6 x 25 |
| 21 | 250000807 | Torx Truss Screw M6 X 25 This part replaces 250000630. |
| 22 | 250000712 | Torx Screw M6 X 20 |
| 23 | 250000720 | Torx Screw K50 X 16 |
| 24 | 250000722 | Torx Screw M6 X 20 |
| 29 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 30 | 293250242 | Rubber Cover |
| 31 | 293250252 | Upper Seal |
| 32 | 293250253 | Bottom Seal |
| 33 | 293250319 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 34 | 293250319 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 35 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 36 | 293830005 | Rubber Bumper |
| 39 | 414859400 | CAP - Call your local BRP dealership |
| 40 | 503189273 | Washer |
| 44 | 705003668 | Oblong Grommet |
| 54 | 707900002 | RH Side Console |
| 55 | 707900004 | RH Front Floor |
| 56 | 707900006 | RH Under Seat Plate |
| 57 | 707900009 | Storage Bin |
| 60 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 62 | 707900021 | RH Fixe Side Console |
| 64 | 707900023 | RH Lower Floor |
| 65 | 707900031 | Latch |
| 75 | 707900622 | RH Lateral Console Foam This part replaces 707900045. |
| 83 | 707900623 | RH Lateral Console Foam This part replaces 707900055. |
| 84 | 707900624 | RH Lateral Console Foam This part replaces 707900056. |
| 89 | 707900062 | Trim Glove Box |
| 94 | 707900562 | RIGHT FLOOR SUPPORT - Call your local BRP dealership This part replaces 707900114. |
| 96 | 219704365 | Was 293200017 Neoprene Seal |
| 97 | 707900133 | Insert |
| 100 | 707900147 | Heat Sheet |
| 101 | 707900148 | Heat Sheet |
| 106 | 707900166 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 107 | 707900167 | Heat Shield |
| 114 | 707900238 | Front RH Safety Net This part replaces 707900172. |
| 123 | 707900184 | Heat Shield |
| 124 | 707900190 | Heat Sheet |
