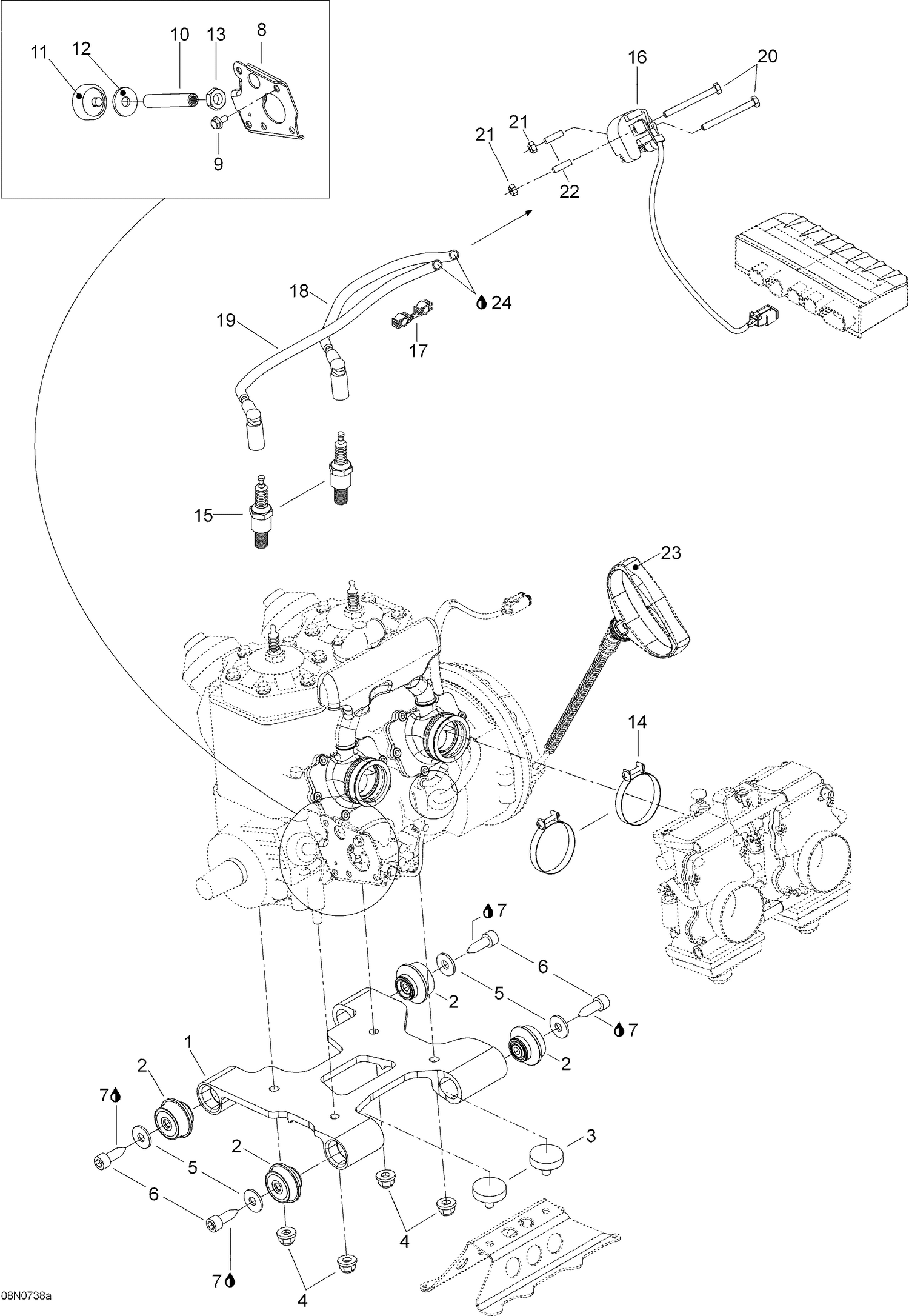

01- Engine And Engine Support
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512060051 | ENGINE SUPPORT - Call your local BRP dealership |
| 2 | 512059691 | Rubber mount |
| 3 | 512059738 | Rubber mount |
| 4 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 5 | 250200014 | Flat Washer This part replaces 506151251. |
| 6 | 40858 | Socket head screw M10 x 50 |
| 7 | 293800060 | Liima Loctite 243, 10ml |
| 8 | 512059840 | PLATE - Call your local BRP dealership |
| 9 | 40327 | Hex. screw M6 x 12 |
| 10 | 250500007 | STOPPER SCREW - Call your local BRP dealership |
| 11 | 512059610 | STOPPER - Call your local BRP dealership |
| 12 | 20023 | Washer |
| 13 | 232170411 | Nut M14 |
| 14 | 512059835 | Clamp |
| 15 | 512059533 | Spark Plug NGK BR9ECS-5 |
| 16 | 512059968 | Ignition coil |
| 17 | 410914600 | Plastic clip |
| 18 | 512059695 | CABLE ASSY, 300 MM - Call your local BRP dealership |
| 19 | 512059696 | Ignition cable, 375 mm |
| 20 | 40084 | Screw M6 x 45 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 | 517203200 | Sleeve |
| 23 | 572084400 | Grip |
