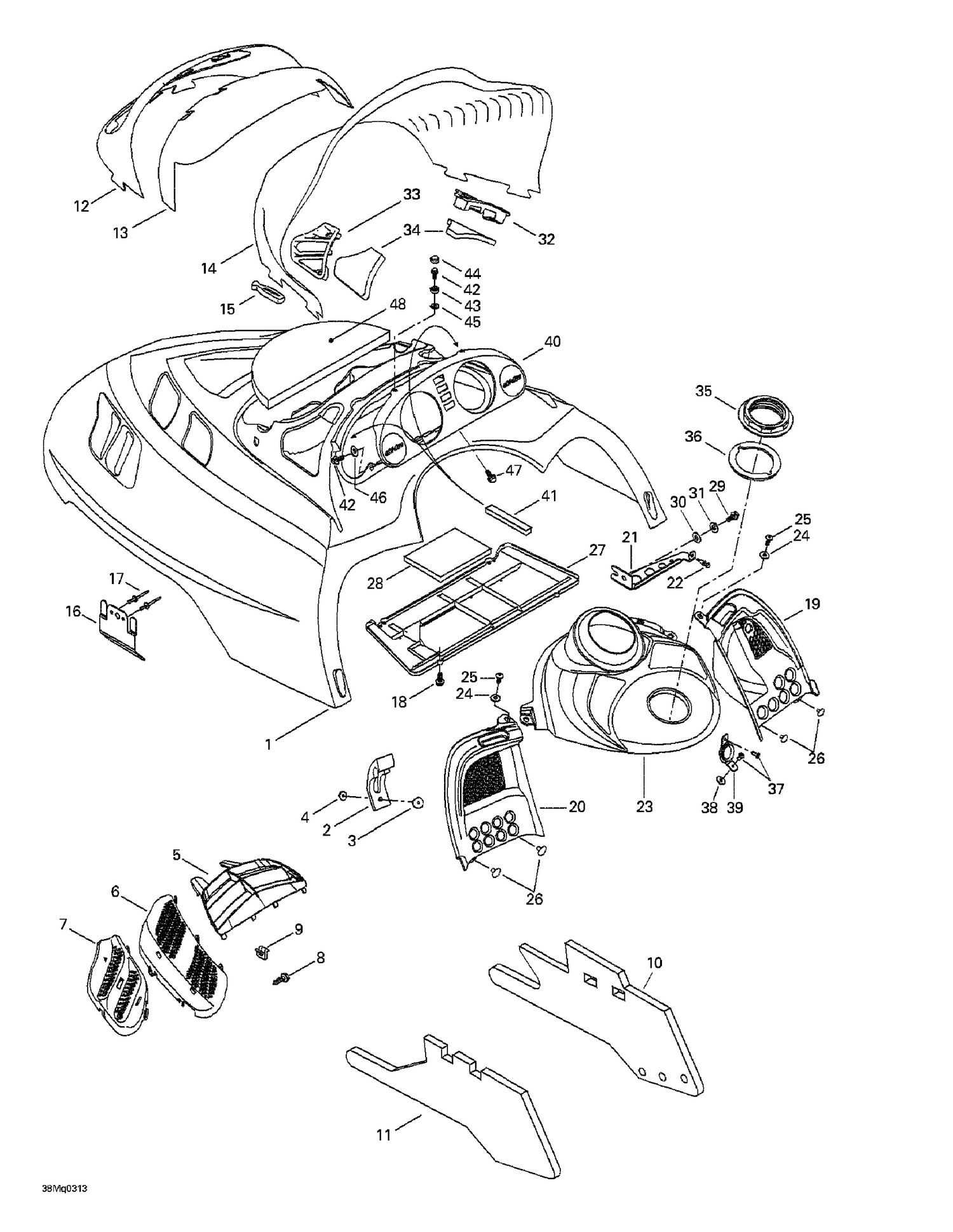

09- Cab, Console
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302734 | Hood (BLACK/ORANGE (B-228)) |
| 2 | 570027100 | Hood Latch |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 517302676 | Center Grill, Black |
| 6 | 517302567 | RH Intermediate Grill, Black |
| 7 | 517302569 | RH Side Grill |
| 8 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 9 | 517302785 | Edge Clip |
| 10 | 517302669 | RH Side Foam |
| 11 | 517302670 | LH Side Foam |
| 12 | 517302582 | Headlamp Moulding |
| 13 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 14 | 517302022 | Medium Windshield |
| 15 | 570023800 | Windshield Latch |
| 16 | 517302615 | Hood Guide |
| 17 | 390910000 | Pop Rivet 3/16” |
| 18 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 19 | 517302561 | RH Console |
| 20 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 21 | 517302621 | RH Console Support |
| 22 | 517302624 | Rubber Stopper |
| 23 | 517302633 | Center Console |
| 24 | 391301600 | Washer |
| 25 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 26 | 293150103 | Pop Rivet 3/16" |
| 27 | 517302836 | AIR INTAKE PLATE - Call your local BRP dealership |
| 28 | 517302425 | Secondary Foam |
| 29 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 30 | 234061410 | Flat Washer 6 mm |
| 31 | 234161471 | Lock Washer M6, Black |
| 32 | 517302024 | RH AIR INTAKE GRILL - Call your local BRP dealership |
| 33 | 517302025 | LH AIR INTAKE GRILL - Call your local BRP dealership |
| 34 | 517302151 | Air Intake Foam |
| 35 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 36 | 293250029 | Gasket |
| 37 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 38 | 517302286 | Rubber Stopper |
| 39 | 517302129 | Rope Guide |
| 40 | 517302536 | Indicator Support |
| 41 | 517302420 | Foam |
| 42 | 241140060 | Screw K40 X 10 |
| 43 | 414436800 | RETAINER CAP - Call your local BRP dealership |
| 44 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 45 | 234042600 | Flat Washer 4 mm, Stainless |
| 46 | 517124300 | Washer |
| 47 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 517302560 | High | Windshield 517302560 |
| 517302560 | Pare-Brise | Haut 517302560 |
| 517302568 | Grille | Intermédiaire GA, Noir 517302568 |
| 517302568 | LH | Intermediate Grill, Black 517302568 |
| 517302570 | Grille-Côté | GA 517302570 |
| 517302570 | LH | Side Grill 517302570 |
| 517302846 | Capot, | Noir B-160 517302846 |
| 517302846 | Deep | Black, Hood 517302846 |
