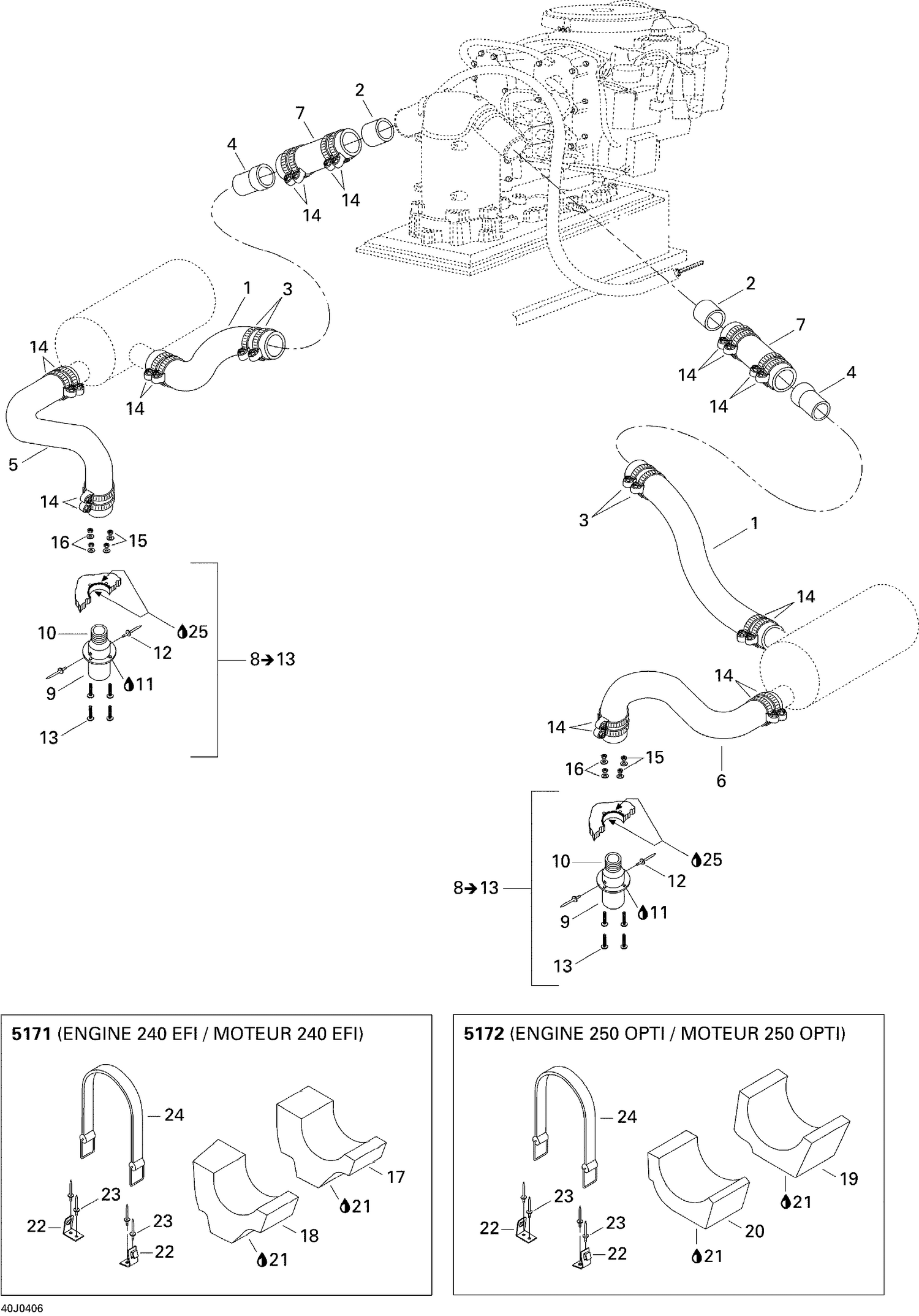

| Ref | Part Number | Description |
|---|
| 2 |
204340403 |
Exhaust Spacer |
| 3 |
293650064 |
Tridon Clamp |
| 4 |
204340402 |
Exhaust Adaptor |
| 7 |
204340256 |
Exhaust Hose, Meter |
| 9 |
Not |
Available As Spare Part - Extension Exhaust Outlet |
| 10 |
204340229 |
Exhaust Outlet |
| 11 |
Not |
Available As Spare Part - Adchem Glue 7218 |
| 12 |
293150043 |
Pop Rivet 3/16" |
| 13 |
208663560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 14 |
293650112 |
Tridon Clamp |
| 15 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 16 |
234061600 |
Stainless Flat Washer M6 |
| 21 |
Not |
Available As Spare Part - Adchem Glue 7218 |
| 22 |
204060017 |
Strap Clip 90° |
| 23 |
293150088 |
Pop Rivet 3/16" |
| 24 |
293850022 |
STRAP - Call your local BRP dealership |
