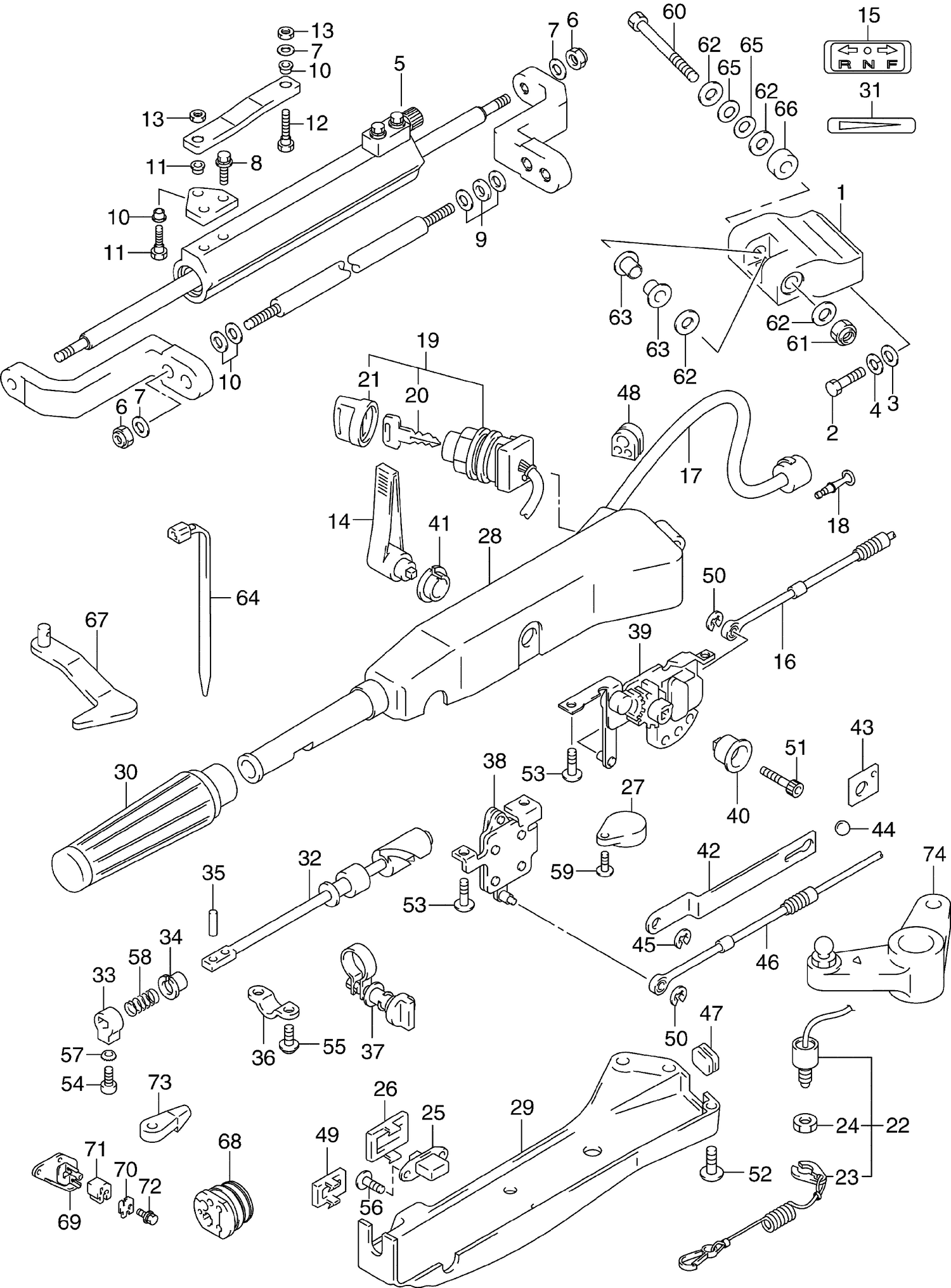

TILLER KIT - 90,115 HP (4-Stroke)
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 5030462 | RONDELLE GROWER |
| 15 | *5033995 | DECAL |
| 28 | 5037571 | Housing Ay This part replaces 5032814. |
| 31 | *5030316 | DECAL,HANDLE GRIP |
| 42 | *5032871 | PLATE,LOCK |
| 43 | *5032462 | PLATE,BALL GUIDE |
| 44 | *5032463 | BALL |
| 45 | *5032464 | E-RING |
| 47 | *5031606 | GROMMET |
| 48 | *5032936 | GROMMET,WIRE |
| 49 | *5031787 | COVER,TRIM SWITCH |
| 50 | *5031791 | E-RING |
| 51 | *5031796 | BOLT |
| 52 | *5031797 | SCREW |
| 53 | *5031798 | SCREW |
| 54 | *5030049 | SCREW (6X23mm) |
| 55 | *5031799 | SCREW |
| 56 | *5031801 | SCREW |
| 57 | *5031794 | WASHER |
| 58 | *5031795 | SPRING |
| 59 | *5031800 | SCREW |
| 60 | *5031609 | BOLT |
| 61 | *5030054 | NUT |
| 73 | *5032155 | CONN,THROTTLE LIMT |
