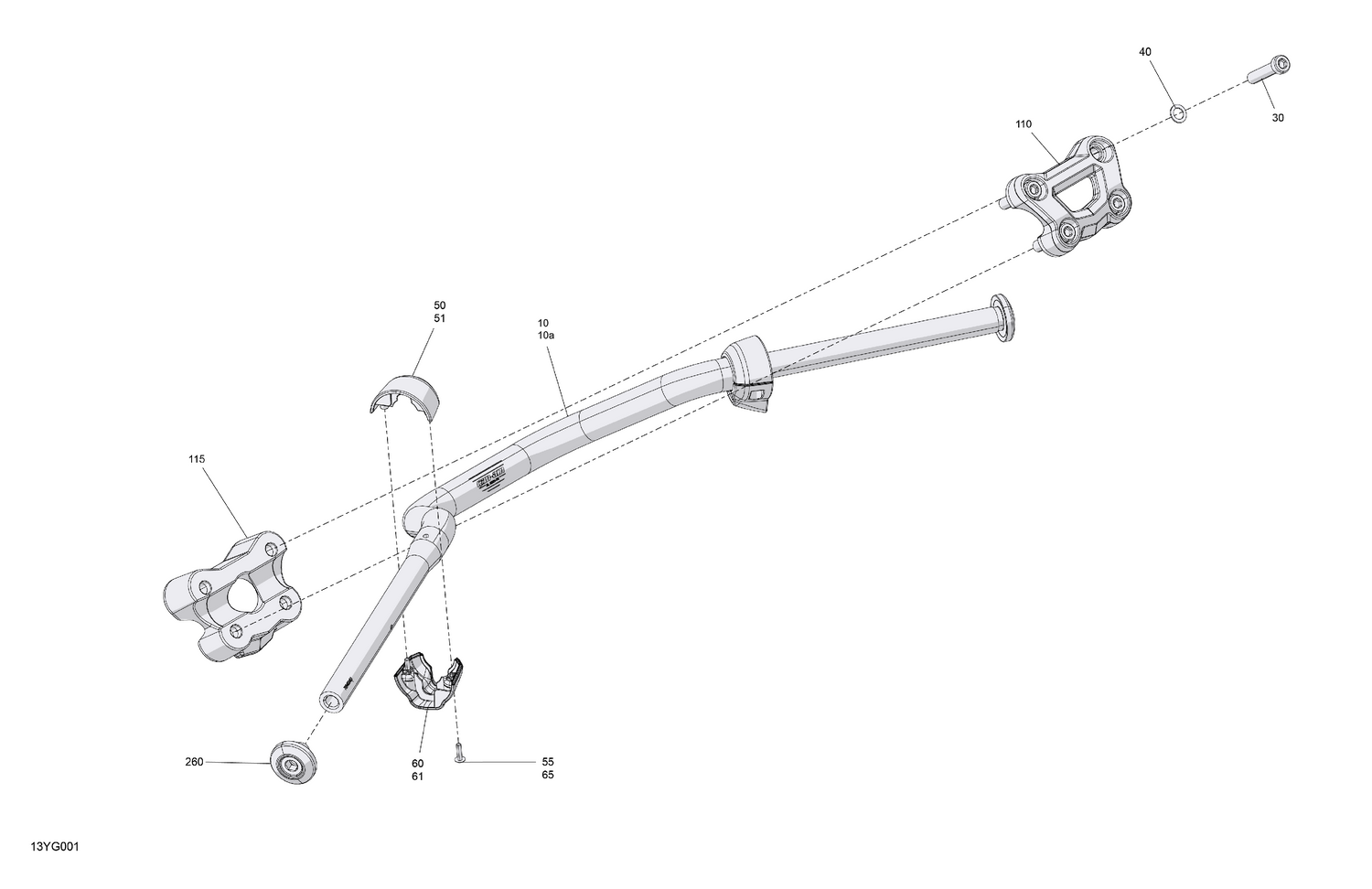

03- Mechanic - Handlebar
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709403219 | Carbon Black, Handlebar |
| 30 | 250001405 | Socket Low Threadlock Screw M10 X 4 |
| 40 | 250200105 | Stainless Flat Washer, 10 mm |
| 50 | 709402943 | LH Upper Switch Trim |
| 51 | 709402957 | RH Upper Switch Trim |
| 55 | 250000759 | Torx Truss Pt K40 X 16 |
| 60 | 709402944 | LH Lower Switch Trim |
| 61 | 709402958 | RH Lower Switch Trim |
| 65 | 250000759 | Torx Truss Pt K40 X 16 |
| 110 | 709401904 | Black, Central Handle Clamp |
| 115 | 709401906 | Black, Central Handle Support |
