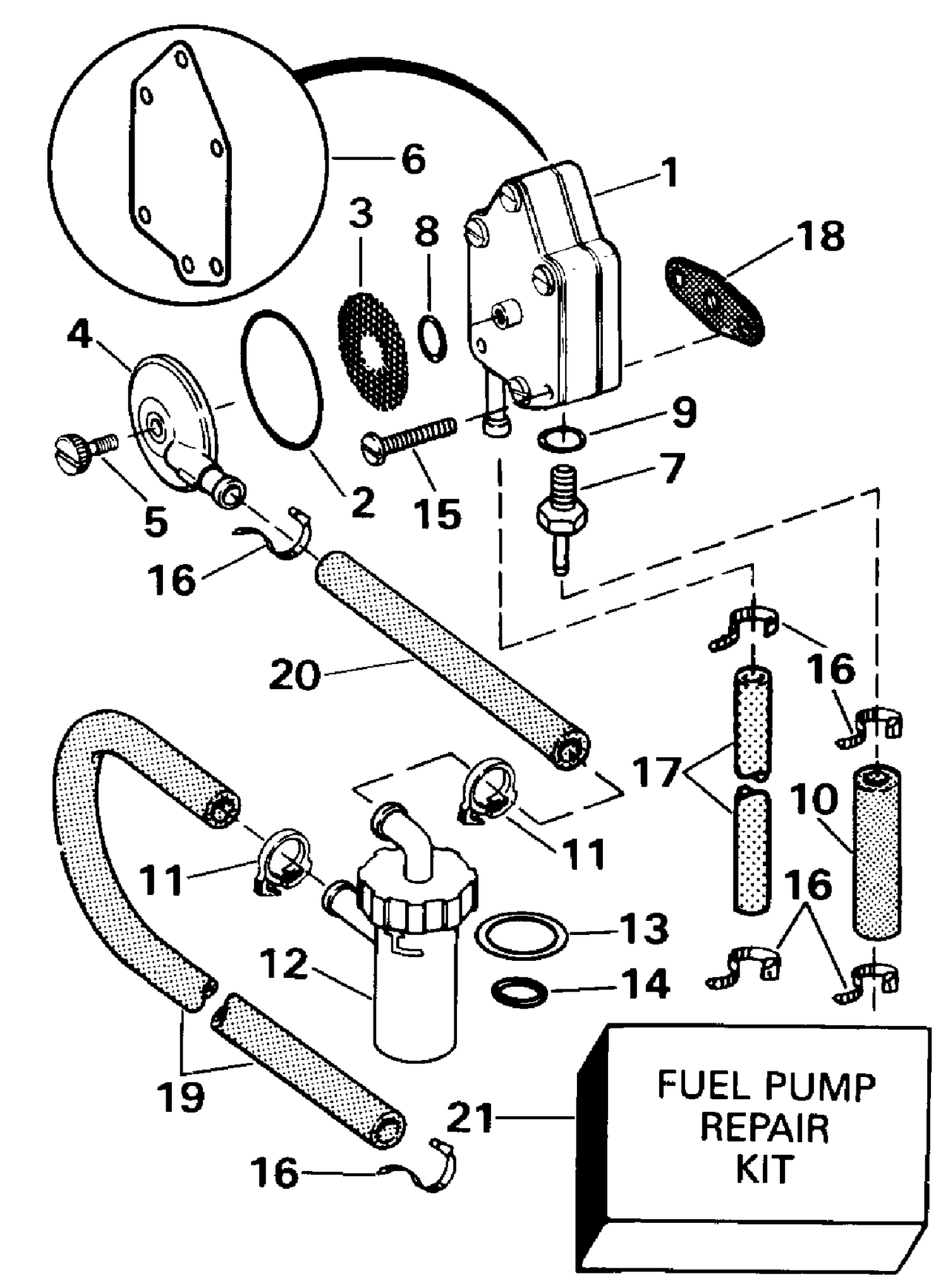

FUEL PUMP - LATE PRODUCTION
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438555 | FUEL PUMP ASSEMBLY This part replaces 0433386. |
| 7 | 0335536 | NIPPLE |
| 10 | HOSE, | Pump to carb., 15 in. (381mm) |
| 12 | 0397715 | FILTER, Fuel |
| 15 | 0328717 | NUT, Ground lead |
| 16 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 | 0335502 | HOSE, Pulse |
| 18 | 0303615 | GASKET |
| 19 | HOSE, | Conn. to fuel filter, 10 3/4 in. (273mm) |
| 20 | HOSE, | Filter to fuel pump, 5 1/2 in. (140mm) |
