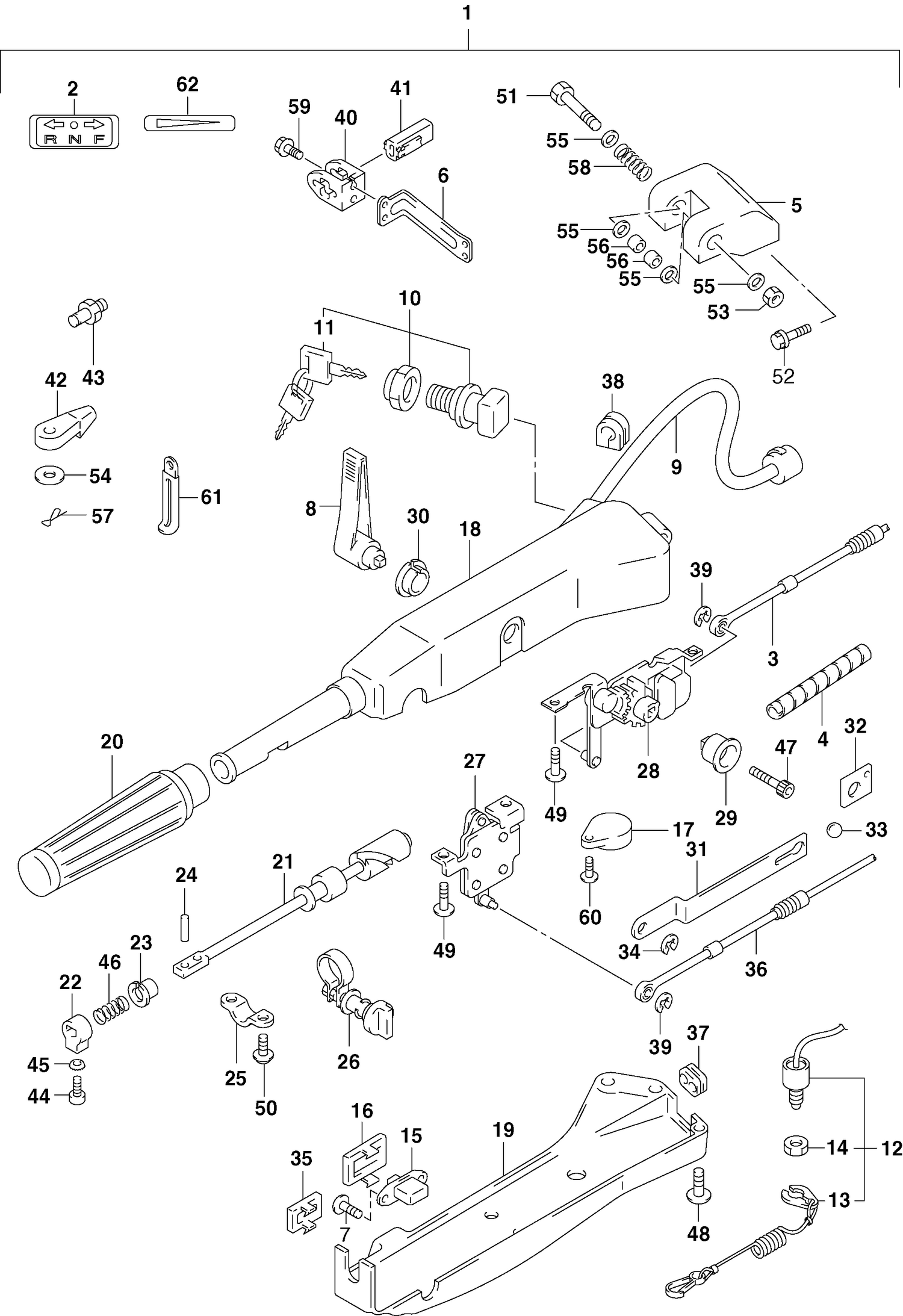

STEERING ARM KIT
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034452 | TILLER HANDLE KIT- WHTE This part replaces 5032813. |
| 2 | *5033995 | DECAL |
| 7 | *5031801 | SCREW |
| 18 | 5037571 | Housing Ay This part replaces 5032814. |
| 31 | *5032871 | PLATE,LOCK |
| 32 | *5032462 | PLATE,BALL GUIDE |
| 33 | *5032463 | BALL |
| 34 | *5032464 | E-RING |
| 35 | *5031787 | COVER,TRIM SWITCH |
| 39 | *5031791 | E-RING |
| 40 | *5031792 | HOLDER, REMOTE CABLE |
| 41 | *5031793 | STOP, REMOTE CABLE |
| 42 | *5032155 | CONN,THROTTLE LIMT |
| 43 | *5032289 | PIN,CONNECTOR |
| 44 | *5030049 | SCREW (6X23mm) |
| 45 | *5031794 | WASHER |
| 46 | *5031795 | SPRING |
| 47 | *5031796 | BOLT |
| 48 | *5031797 | SCREW |
| 49 | *5031798 | SCREW |
| 50 | *5031799 | SCREW |
| 51 | *5031609 | BOLT |
| 52 | *5035792 | BOLT, (10X45mm) This part replaces *5030399. |
| 53 | *5030054 | NUT |
| 54 | *5031080 | WASHER,CONNECTOR |
| 55 | *5031610 | WASHER |
| 56 | *5031612 | BUSHING |
| 57 | *5030575 | CLIP |
| 58 | *5031613 | SPRING |
| 60 | *5031800 | SCREW |
| 61 | *5031802 | CLAMP |
