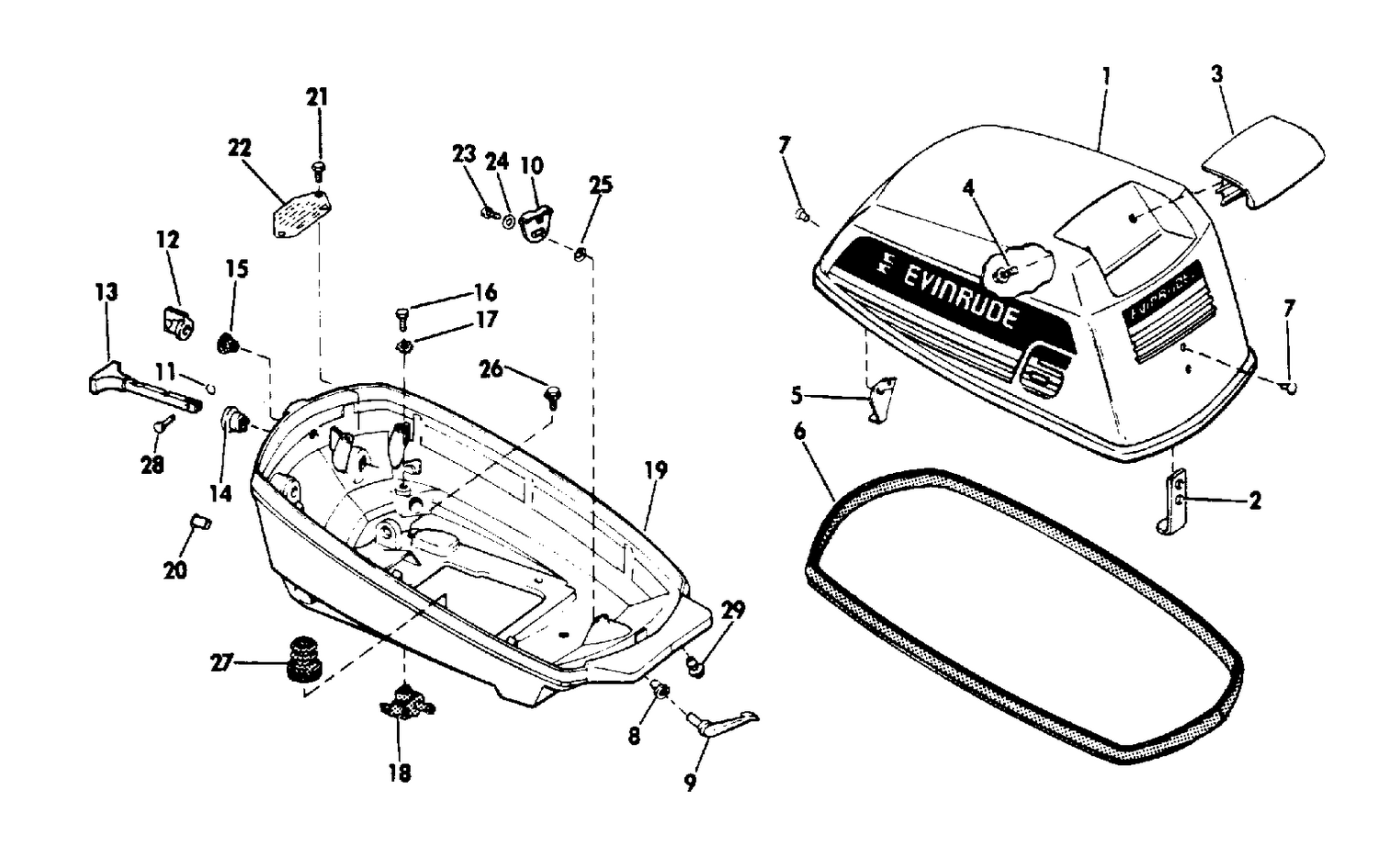

MOTOR COVER
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0281203 | MOTOR COVER ASSEMBLY |
| 2 | 0208212 | HOOK, Rear |
| 3 | 0208293 | TILT HANDLE |
| 5 | 0207616 | HOOK, Front, cover |
| 6 | 0207800 | SEAL, Cover |
| 8 | 0553769 | BUSHING |
| 9 | 0312184 | HANDLE, Latch |
| 11 | 0307529 | JOINT TORIQUE, galet vers contre-came |
| 12 | 0314615 | ADJUSTING KNOB |
| 13 | 0315520 | KNOB, Choke |
| 14 | 0320731 | BUSHING, Choke knob |
| 15 | 0311439 | GROMET, Knob slow speed |
| 18 | 0393334 | CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 19 | 0389496 | MOTOR COVER, Lower |
| 20 | 0312979 | EYELET |
| 21 | 0316195 | SCREW |
| 22 | 0320023 | PLATE, Safety warning |
| 23 | 0306487 | SCREW |
| 24 | 0306407 | LOCCKWASHER,Cover latch |
| 26 | 0309526 | SCREW |
| 27 | 0306119 | GROMMET |
| 28 | 0322340 | HINGE PIN, Knob |
| 29 | 0321885 | NIPPLE |
| 0281289 | 0281289 | DECAL SET |
