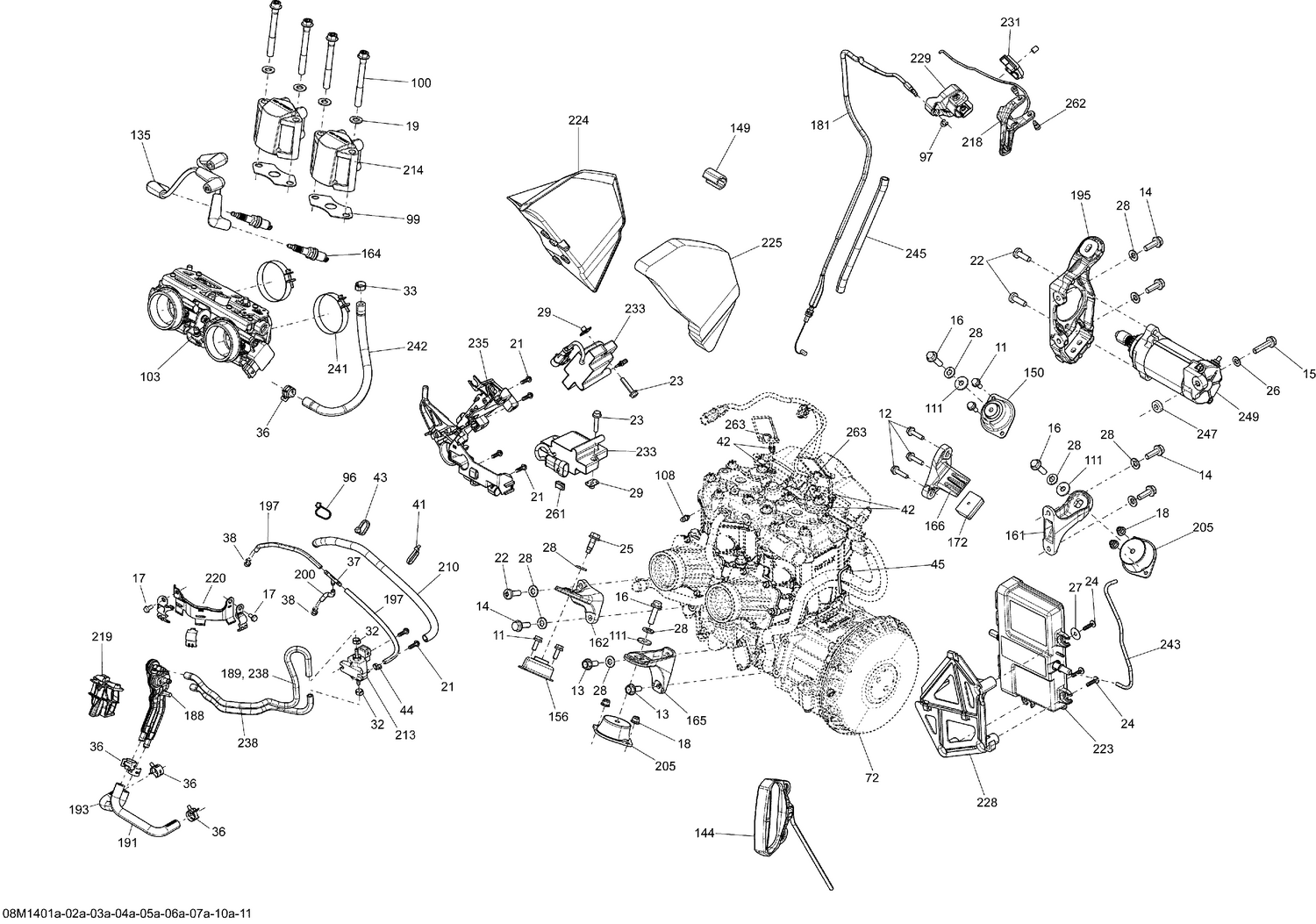

01- Engine And Engine Support
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 207562544 | Hex. Flange Screw M6 X 25 |
| 13 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 14 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 16 | 207683044 | Hex. Flange Screw M8 X 30 |
| 17 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 234001410 | Flat Washer 10 mm |
| 21 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 23 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 |
| 24 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 25 | 250000796 | Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570. |
| 27 | 250200040 | Flat Washer |
| 28 | 250200146 | Conical Spring Washer M8 |
| 29 | 293100003 | Nut Welded, M6 |
| 32 | 293650234 | Crimp Clamp |
| 33 | 293650046 | Oetiker Clamp |
| 36 | 293650214 | Norma Spring Clamp |
| 37 | 293710068 | T-Fitting |
| 42 | 293750001 | Tie Wrap 94 mm |
| 45 | 293750008 | Tie Wrap 368 mm |
| 97 | 414274500 | Circlip |
| 99 | 420430930 | Gasket |
| 100 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 108 | 420924724 | Hose Nipple |
| 111 | 503183200 | Yellow, Washer |
| 135 | 512061126 | Ignition Cable, 177mm long This part replaces 512060094. |
| 149 | 512060313 | Protector |
| 150 | 512061507 | Vibration Damper This part replaces 512060387. |
| 156 | 512060448 | Rubber Mount |
| 161 | 512060469 | Front Support, MAG |
| 162 | 512060478 | Rear Support, PTO |
| 165 | 512060559 | Rear Support, MAG |
| 166 | 512060576 | Stopper Support |
| 188 | 512060692 | Manifold |
| 189 | 512060930 | SPRING - Call your local BRP dealership |
| 191 | 512060694 | RH Formed Hose |
| 193 | 512060695 | LH Formed Hose |
| 197 | 219704352 | Was 420660574 Pressure Hose 280 mm |
| 205 | 512060729 | Rubber Mount |
| 213 | 270600005 | Solenoid Valve This part replaces 512060950. |
| 218 | 512061250 | Handle Ass'y This part replaces 512060815. |
| 220 | 512060827 | Hose Support |
| 224 | 512060847 | Noise Shield |
| 225 | 512060958 | Inner Acoustic Foam |
| 228 | 512060858 | Calibrated Module Support |
| 229 | 512060860 | Lower Housing |
| 231 | 512060859 | Upper Housing |
| 233 | 512060953 | Ignition Coil This part replaces 512060877. |
| 235 | 512060888 | Ignition Coils Support |
| 238 | 219704410 | Polyurethane Hose 10000Mm Long |
| 242 | 512060944 | Bleeder's Collector Outlet Hose |
| 243 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 245 | 219704399 | Was 409901700 Tubing (9 mm) |
| 261 | 710000992 | Clip |
| 262 | 732601143 | Flange Screw |
