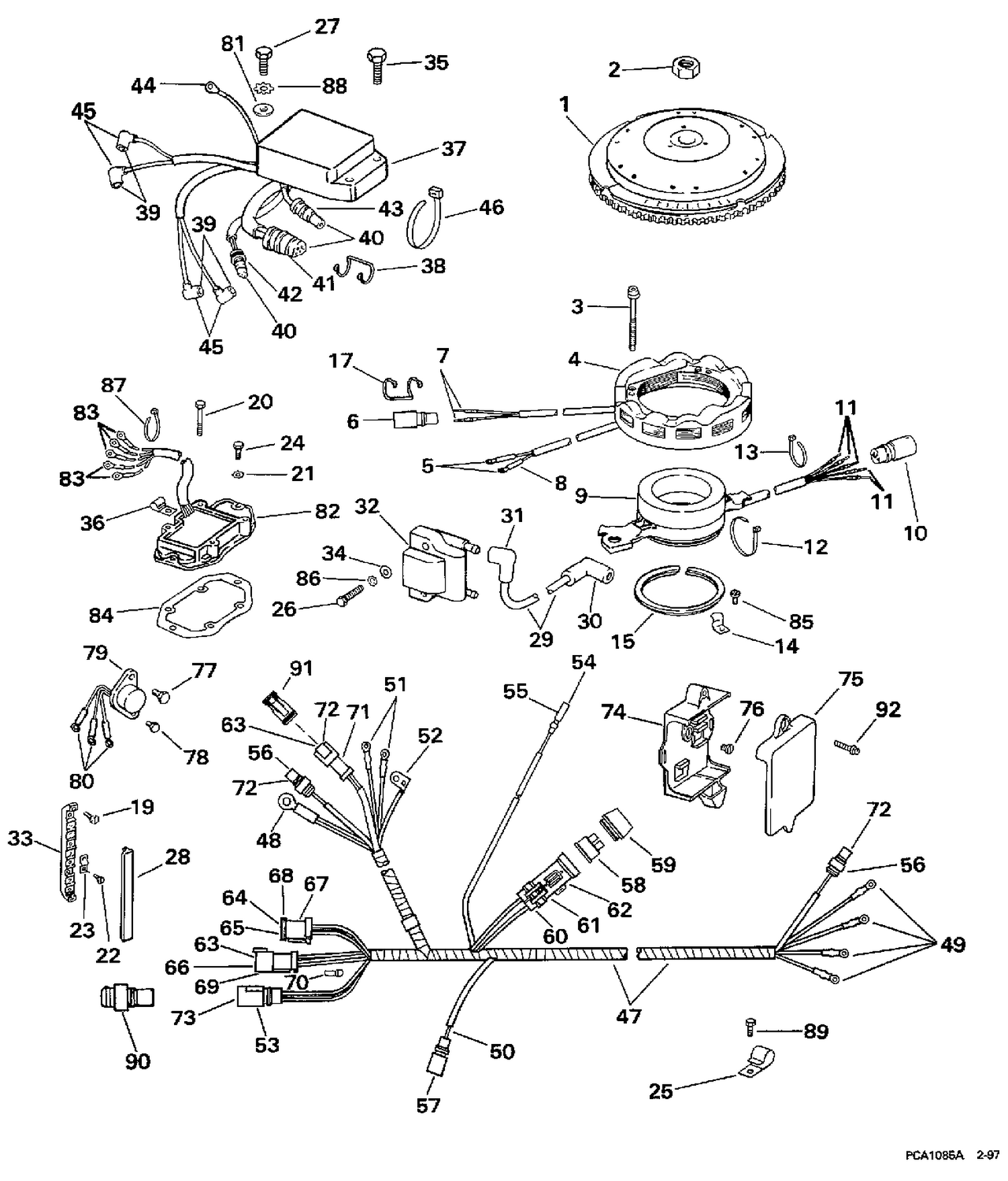

| Ref | Part Number | Description |
|---|
| 1 |
0583339 |
FLYWHEEL ASSY. |
| 2 |
0329267 |
NUT, Flywheel |
| 4 |
0583340 |
STATOR ASSY., 6 amp |
| 4 |
0583536 |
STATOR ASSY., 3/9 AMP |
| 9 |
0583379 |
TIMER BASE & SENSOR ASSY. |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 17 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 19 |
0306644 |
VIS, capteur de papillon |
| 20 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 22 |
0329182 |
VIS, borne |
| 23 |
0315004 |
FIL DE LIAISON, bornier |
| 24 |
0306409 |
VIS, collecteur vers carter-moteur |
| 25 |
0330151 |
CLAMP, Harness to oil tank boss |
| 26 |
0328726 |
SCREW (Use existing coil screw) |
| 28 |
0396841 |
COVER, Terminal block |
| 28 |
0431792 |
COVER ASSY. |
| 29 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 32 |
0582508 |
COIL ASSY |
| 33 |
0329895 |
BORNIER |
| 35 |
0328726 |
SCREW (Use existing coil screw) |
| 36 |
0330151 |
CLAMP, Harness to oil tank boss |
| 37 |
0584028 |
POWER PACK |
| 38 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 47 |
0586027 |
MOTOR CABLE ASSY. |
| 74 |
0586012 |
BRACKET, Connector mounting |
| 75 |
0341014 |
COVER, Connector bracket |
| 77 |
0328731 |
VIS, câble de verrouillage |
| 78 |
0314576 |
SCREW This part replaces 0328720. |
| 82 |
0585195 |
RECTIFIER & REGULATOR ASSY. |
| 84 |
0322858 |
GASKET |
| 85 |
0306014 |
VIS, ancrage |
| 87 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 90 |
0335655 |
BOUCHON, étanchéité |
