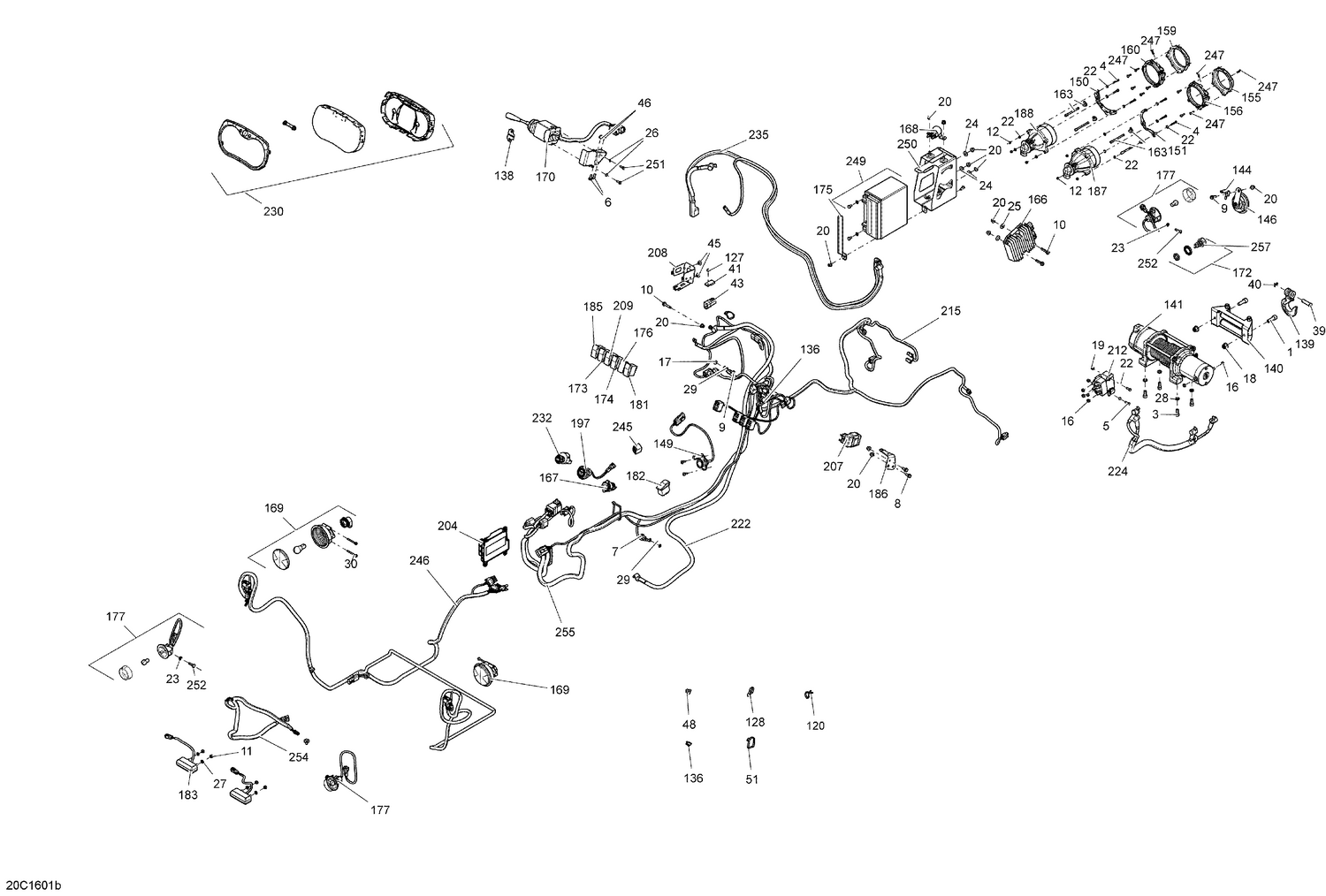

10- Electrical System - XT-XTP
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205003044 | Socket Screw M10 x 30 |
| 3 | 205082044 | Socket Head Screw M8 X 20 |
| 4 | 207142544 | Hex. Screw M4 X 25 |
| 5 | 207151644 | Hex. Screw M5 X 16 |
| 7 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 11 | 232061600 | Hex. Nut M6 |
| 12 | 232541414 | Elastic Stop Nut M4 |
| 15 | 232561434 | Elastic Stop Nut M6 |
| 16 | 232561434 | Elastic Stop Nut M6 |
| 17 | 233061414 | Hex. Flange Nut M6 |
| 18 | 233201414 | Hex. Flange Elastic Nut M10 |
| 19 | 233251494 | Elastic Flange Nut M5 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 234051410 | Flat Washer M5 |
| 25 | 234062670 | Stainless Steel Flat Washer |
| 27 | 234161601 | Lock Washer Helical M6 |
| 28 | 234181401 | Lock Washer 8 mm |
| 29 | 234461608 | External Serrated Lock Washer 6 mm |
| 30 | 241154540 | Hex. Screw K50 X 45 |
| 33 | 250000717 | Torx Head Screw M6 X 16 |
| 39 | 250400021 | Clevis Pin |
| 40 | 250400022 | Cotter Pin |
| 41 | 270000141 | Clip |
| 42 | 278000281 | Female Terminal Housing, 3 Circuits |
| 43 | 278002704 | Diagnostic Connector |
| 45 | 293150103 | Pop Rivet 3/16" |
| 48 | 293730040 | Mount Dart |
| 51 | 293750008 | Tie Wrap 368 mm |
| 120 | 293750009 | Tie-Rap 173 mm |
| 127 | 390402400 | Pop Rivet 3/16" |
| 128 | 414115200 | Tie-Rap 180 mm |
| 136 | 414227300 | Clip |
| 139 | 705014949 | Winch Hook Kit This part replaces 705002329. |
| 140 | 715001119 | WINCH CABLE GUIDE - Call your local BRP dealership |
| 141 | 705008547 | Winch |
| 147 | 710000992 | Clip |
| 149 | 710001023 | Winch Connector |
| 150 | 710001036 | LH High Light Support |
| 151 | 710001037 | LH Low Light Support |
| 152 | 710001059 | Connector Ass'y |
| 153 | 710001081 | RH Low Front Housing |
| 154 | 710001082 | RH Low Rear Housing |
| 155 | 710001083 | LH Low Front Housing |
| 156 | 710001084 | LH Low Rear Housing |
| 157 | 710001085 | RH High Front Housing |
| 158 | 710001086 | RH High Rear Housing |
| 159 | 710001087 | LH High Front Housing |
| 160 | 710001088 | LH High Rear Housing |
| 161 | 710001094 | RH Low Light Support |
| 162 | 710001115 | RH High Light Support |
| 163 | 710001147 | Setting Screw |
| 166 | 710001191 | Voltage Regulator |
| 167 | 710001248 | DC Outlet |
| 169 | 710001645 | Tail Light Ass'y |
| 169a | 520000758 | Bulb |
| 173 | 710001737 | Interrupteur 4X4 |
| 174 | 710001781 | Switch DPS |
| 175 | 710001916 | Battery Holder |
| 176 | 710007173 | Plug Carling This part replaces 710001999. |
| 181 | 710002052 | Switch Winch |
| 182 | 710002053 | Switch, Over ride |
| 187 | 710002524 | Low Beam Ass'y |
| 187a | 415129249 | Halogen Bulb |
| 188 | 710002525 | High Beam Ass'y |
| 188a | 415129249 | Halogen Bulb |
| 197 | 710002594 | Engine Start Button |
| 208 | 710003335 | Fuse Holder |
| 209 | 710003541 | Switch PPS Sport |
| 212 | 715007084 | Solenoid Kit This part replaces 710004142. |
| 224 | 710004387 | Electrical Winch Cable |
| 247 | 250000723 | Phillips Screw K40 X 16 |
| 248 | 250000720 | Torx Screw K50 X 16 |
| 249 | 410301203 | Battery YUASA YTX20L |
