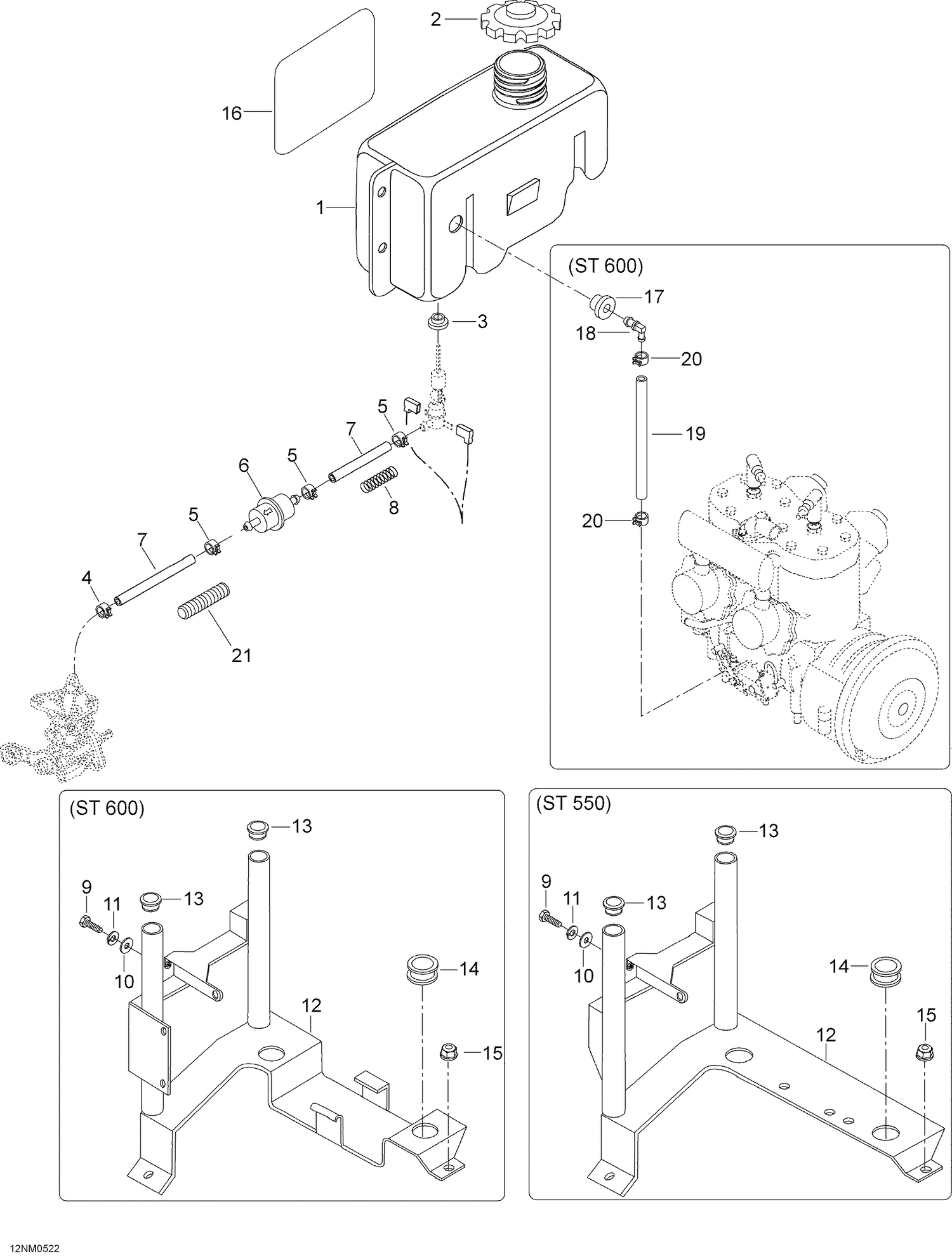

02- Oil System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 570023000 | Grommet |
| 4 | 414420700 | Universal Spring Clamp |
| 5 | 414415200 | Clamp |
| 6 | 414536500 | Oil filter |
| 7 | 39046 | Oil line |
| 8 | 25005 | Spring |
| 9 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 10 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 11 | 20052 | Lock washer A6 |
| 13 | 28136 | Plug |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 16 | 5443578 | AL-cover - Call your local BRP dealership |
