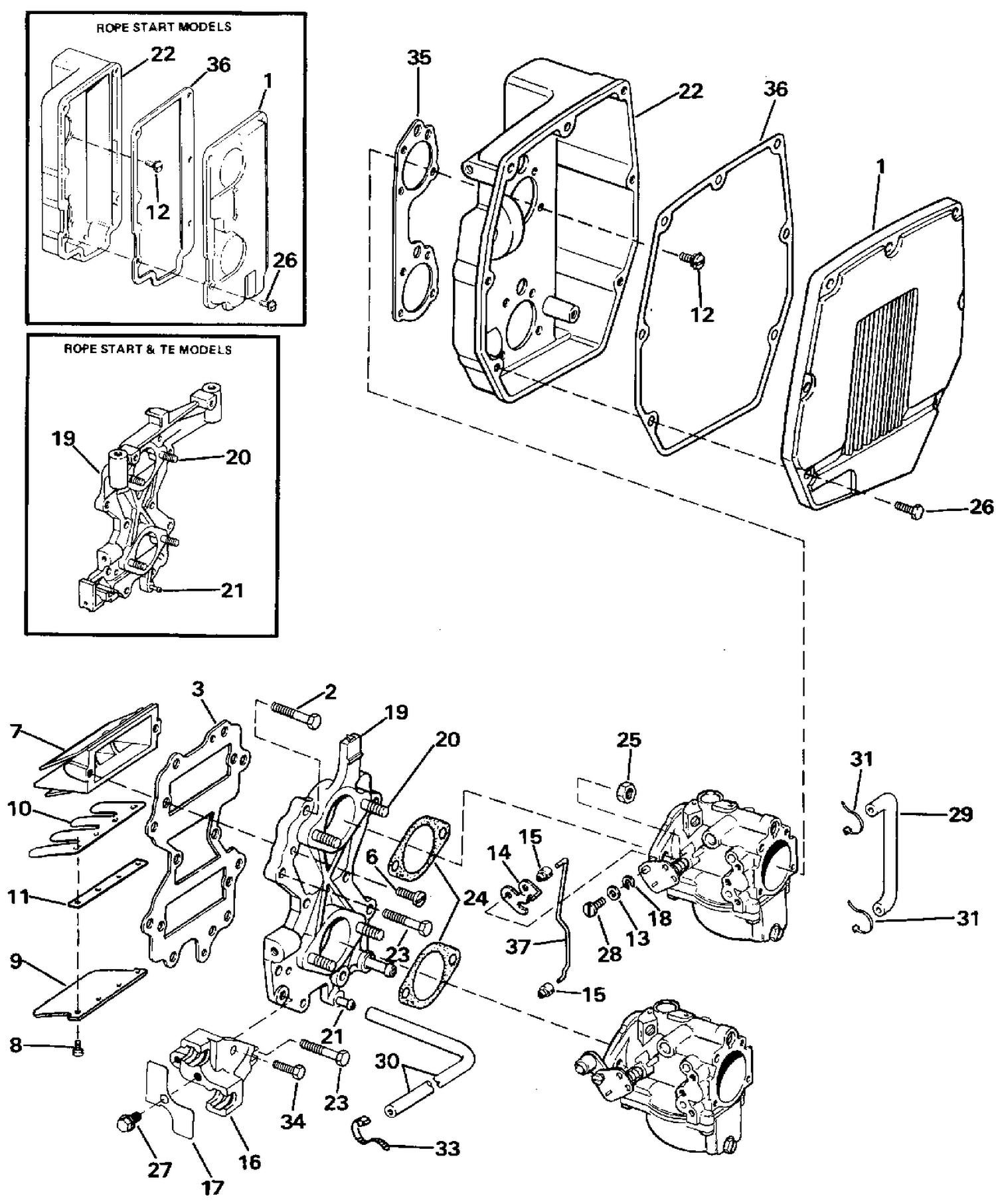

| Ref | Part Number | Description |
|---|
| 1 |
0329396 |
COVER |
| 1 |
0330912 |
COVER, Air silencer |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 2 |
0306418 |
VIS, ancrage |
| 3 |
0335633 |
GASKET |
| 6 |
0306474 |
SCREW |
| 7 |
0389810 |
LEAF PLATE |
| 7 |
0395442 |
LEAF PLATE ASSEMBLY |
| 14 |
0329418 |
LEVER, Synchronization adj. |
| 15 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 16 |
0333766 |
ANCHOR BLOCK |
| 17 |
0334175 |
RETAINER |
| 19 |
0391780 |
MANIFOLD ASSY |
| 19 |
0433684 |
MANIFOLD Assy This part replaces 0433564. |
| 22 |
0333522 |
BASE |
| 22 |
0431994 |
BASE, Air silencer This part replaces 0395361. |
| 23 |
0306409 |
VIS, collecteur vers carter-moteur |
| 24 |
0325092 |
GASKET |
| 25 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 29 |
HOSE, |
Carb. to carb., 7 1/2 in. (191mm) |
| 30 |
HOSE, |
Silencer to manifold, 5 in. (127mm) |
| 33 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 34 |
0300646 |
VIS, ancrage |
| 35 |
0330910 |
GASKET |
| 36 |
0330698 |
GASKET |
| 36 |
0330909 |
GASKET |
