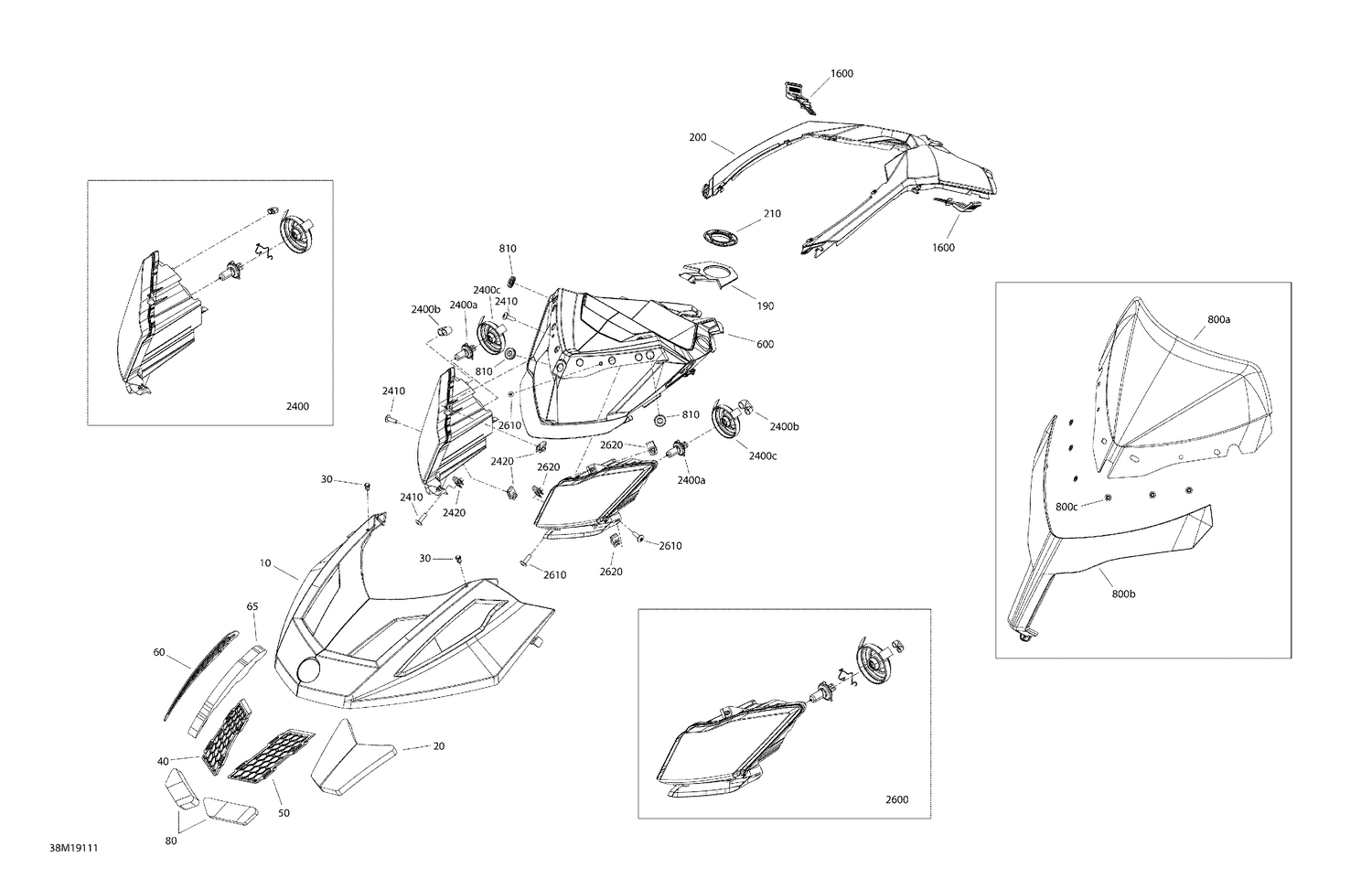

09- Hood - Hood Section
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306313 | Hood |
| 20 | 517304877 | Foam Hood |
| 30 | 293150230 | Tuflok Plastic Rivet |
| 40 | 517303805 | RH Hood Grille |
| 50 | 517303804 | LH Hood Grille |
| 60 | 517304279 | RH Lateral Hood Grille |
| 65 | 517304878 | Foam Hood |
| 80 | 517304879 | Foam Hood |
| 190 | 517304027 | Deep Black, Cap Console |
| 200 | 517305015 | Console |
| 210 | 517306602 | Console Nut |
| 400 | 517304701 | Black, RH Console |
| 420 | 250000725 | Screw M4 X 16 |
| 600 | 517306222 | Indicator Support |
| 800a | 517303888 | Low Windshield (250) |
| 800b | 860200228 | LOW WINDSHIELD SUPPORT - Call your local BRP dealership |
| 800c | 732610072 | Push Nut |
| 810 | 517303756 | Grommet |
| 1600 | 517304093 | Center Panel Latch |
| 2400a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400b | 515176498 | Cap |
| 2400c | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 2410 | 250000705 | Torx Truss Screw M6 X 20 |
| 2420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2610 | 250000705 | Torx Truss Screw M6 X 20 |
