Home / BRP / Can-Am ATV / 2014 / Outlander / Outlander 800R EFI, STD, DPS, XT & XT-P, 2014 0002AEA00 0002AEB00 0002HEA00 0002JEA00 0002JEB00 0002JEC00 0002JED00 0002JEE00 0002JEF00 0005REA00 0005REB00 0005REC00 / 01- Engine

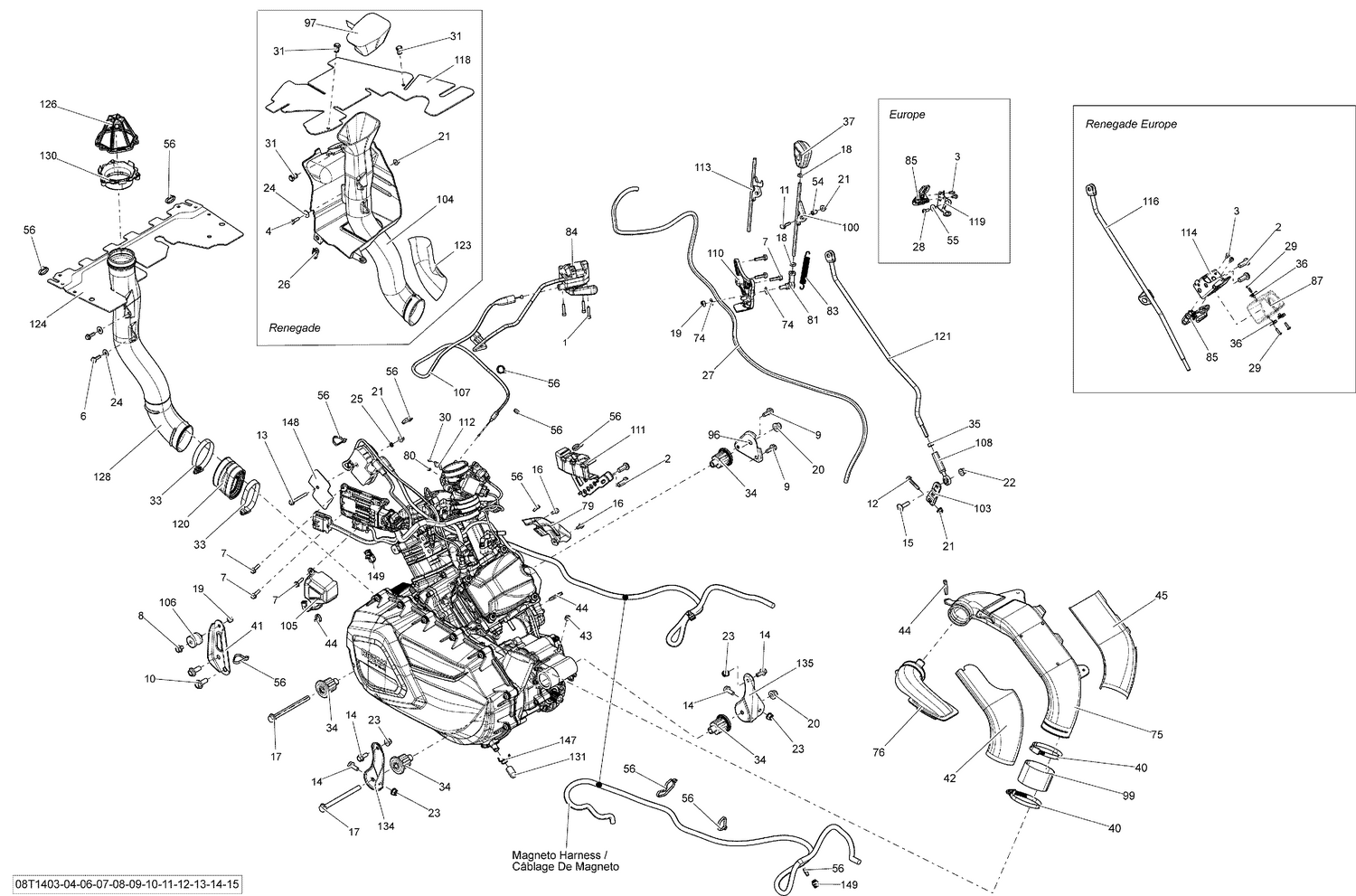

01- Engine

01- Engine

Parts (84)

RefPart NumberDescription
1 205052588 Socket Head Screw M5 X 25
2 205402556 Screw Socket M10 X 25 This part replaces 205402596.
3 205951046 Socket Head Screw M5 X 10
4 XXX Not Available As Spare Parts
6 207562034 Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
7 207562544 Hex. Flange Screw M6 X 25
8 207581046 Flange Screw M8 x 10, Scotch Grip
9 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
10 207602544 Hex. Flange Screw M10 X 25
11 207662544 Hex. Flange Screw M6 X 25
12 207663544 Hex. Flange Screw M6 X 35
13 207665044 Hex. Flange Screw M6 X 50
14 207682046 Hex. Flange Screw M8 X 20
15 207783044 Carriage Bolt M8 X 30
16 210261250 Hex. Flange Screw M6 X 12 This part replaces 210261280.
17 230602546 Hex. Flange Screw M10 X 125
18 232180600 Hex. Jam Nut M8
19 232581414 Hex. Elastic Stop Nut M8
20 233201436 Hex. Flange Elastic Nut M10
21 233261414 Hex. Flange Elastic Nut M6 x 1.0
22 233281414 Hex. Flange Elastic Nut M8
23 233281416 Hex. Elastic Flange Nut M8
24 234062600 Flat Washer M6, Stainless
25 234461608 External Serrated Lock Washer 6 mm
26 XXX Not Available As Spare Parts
27 219704410 Polyurethane Hose 10000Mm Long
28 250000720 Torx Screw K50 X 16 This part replaces 250000146.
29 XXX Not Available As Spare Parts
30 250000332 TORX SCREW M4 X 8 - Call your local BRP dealership
31 XXX Not Available As Spare Parts
33 293650091 Norma Clamp
34 707001169 Vibration Damper
35 250100144 Hex. Nut M8, LH Threads
36 XXX Not Available As Spare Parts
37 707003211 Lever Trim This part replaces 707000965.
40 293650118 Norma Gear Clamp
41 707001256 Upper Engine Bracket
42 707001217 HEAT SHIELD - Call your local BRP dealership
43 293650195 Clamp, Oetiker
44 293750002 Tie Wrap 142 mm
45 707001218 HEAT SHIELD - Call your local BRP dealership
54 293900019 Bushing
55 391301600 Washer
56 414115200 Tie-Rap 180 mm
74 506151252 Washer
75 706600016 AIR OUTLET - Call your local BRP dealership
76 706600018 AIR OUTLET - Call your local BRP dealership
79 707000410 Cover OPS
80 707000434 Cable Guide
81 707001959 RH Ball Joint This part replaces 707000546.
83 707000577 Spring
84 707000595 Throttle Handle
85 XXX Not Available As Spare Parts
87 XXX Not Available As Spare Parts
96 707003319 Engine Support This part replaces 707000761.
97 XXX Not Available As Spare Parts
99 707000789 Adaptor
100 707000840 Shift Arm
103 707000911 Lever
104 XXX Not Available As Spare Parts
105 707000945 Cover
106 707000949 Rubber Isolator
107 707000955 Throttle Cable
108 707000966 Ball Joint Ass'y
110 707003054 Lever Support This part replaces 707000971.
111 707003053 Cable Support This part replaces 707000992.
112 707000994 SPEED LIMITER - Call your local BRP dealership
113 707001003 Shift Arm
114 XXX Not Available As Spare Parts
116 XXX Not Available As Spare Parts
118 XXX Not Available As Spare Parts
119 707001042 Fixing Plate
120 707002585 Flexibale Adaptor This part replaces 707001043.
121 707001082 SHIFTER ROD - Call your local BRP dealership
123 XXX Not Available As Spare Parts
124 707001124 Upper Water Deflector
126 707001130 Filter CVT
128 707002067 CVT Air Inlet This part replaces 707001163.
130 707001171 CVT Filter Base
131 707001185 Plug
134 707003325 LH Rear Engine Support This part replaces 707001193.
135 707001194 RH Rear Engine Bracket
147 707800506 Retainer Clip
148 710000073 Insulator Pad
