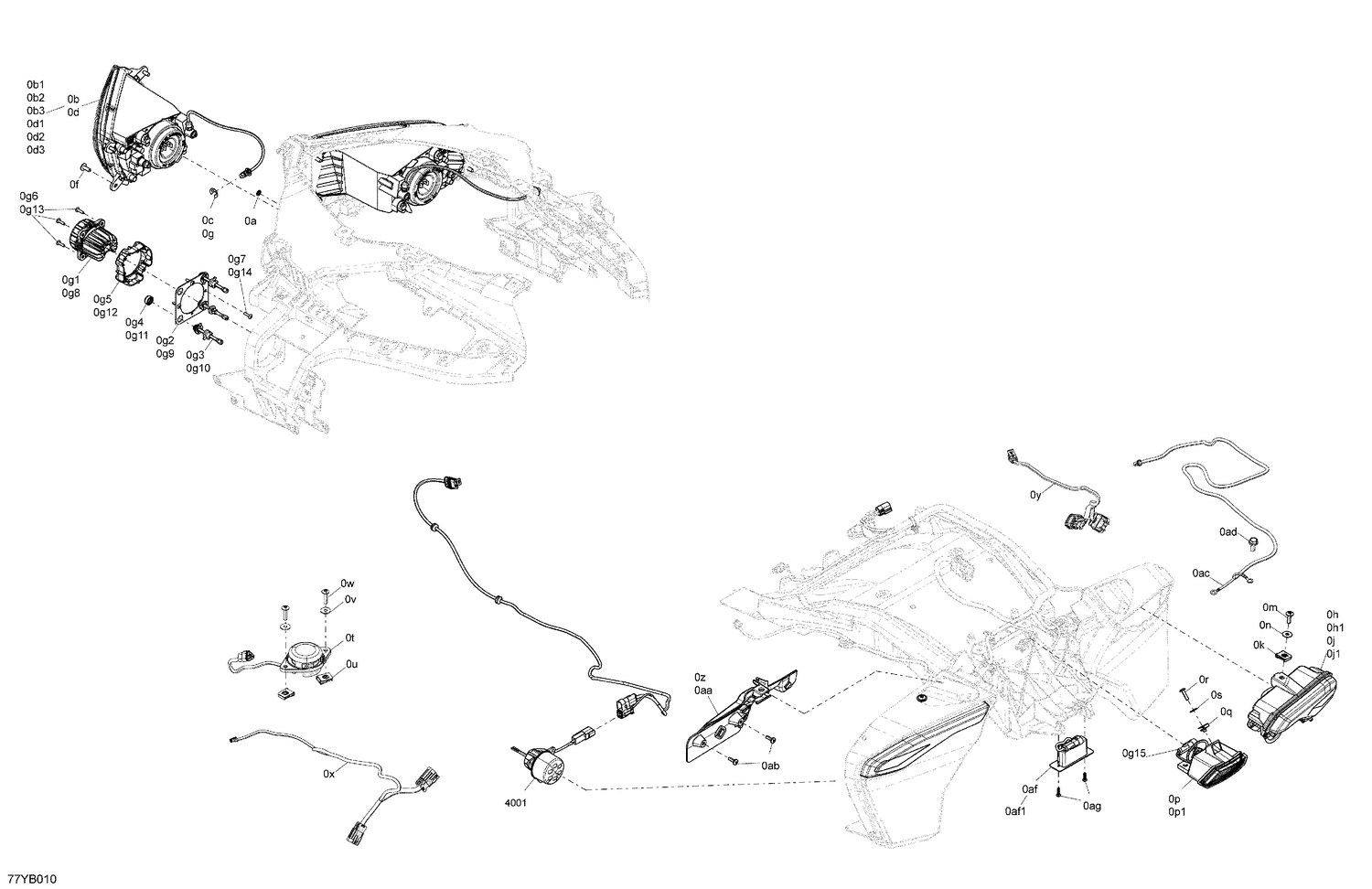

08- Electric - Vehicle Lighting
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 0a | 250001189 | Push Nut |
| 0aa | 710004644 | RH Connector Support |
| 0ab | 250000720 | Torx Screw K50 X 16 |
| 0ad | 207682044 | Hex. Flange Screw M8 X 20 |
| 0af1 | 219800128 | Bulb |
| 0ag | 250001123 | Hex. Flange Screw K40 X 16 |
| 0b1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 0b2 | 219800280 | Rubber Cap Protector |
| 0b3 | 219800281 | Spring |
| 0c | 293370013 | E-Circlip |
| 0d1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 0d2 | 219800280 | Rubber Cap Protector |
| 0d3 | 219800281 | Spring |
| 0f | 250000721 | Torx Truss Screw M6 X 16 |
| 0g1 | 710006007 | Low Beam Ass'y |
| 0g10 | 710007200 | Adjustment Screw |
| 0g11 | 293730095 | Clip |
| 0g12 | 710007189 | Adapter |
| 0g13 | 250000759 | Torx Truss Pt K40 X 16 |
| 0g14 | 250000759 | Torx Truss Pt K40 X 16 |
| 0g15 | 409209500 | Female Housing, 2 Circuits |
| 0g2 | 710007188 | SUPPORT_HEADLIGHT - Call your local BRP dealership |
| 0g3 | 710007200 | Adjustment Screw |
| 0g4 | 293730095 | Clip |
| 0g5 | 710007189 | Adapter |
| 0g6 | 250000759 | Torx Truss Pt K40 X 16 |
| 0g7 | 250000759 | Torx Truss Pt K40 X 16 |
| 0g8 | 710006007 | Low Beam Ass'y |
| 0g9 | 710007188 | SUPPORT_HEADLIGHT - Call your local BRP dealership |
| 0h1 | 219800304 | Flasher Bulb |
| 0j1 | 219800304 | Flasher Bulb |
| 0k | 250100208 | Panel Nut M6 X 1.0 |
| 0m | 250000722 | Torx Screw M6 X 20 |
| 0n | 250200164 | Flat washer M6 |
| 0p1 | 219800322 | Bulb 12V 10W |
| 0q | 250000958 | Panel Nut M5 X 0.8 |
| 0r | 250000715 | Torx Truss Screw M5 X 20 |
| 0s | 234052670 | Stainless Steel Flat Washer M5 |
| 0t | 710008103 | Passenger Detection Switch |
| 0u | 250100208 | Panel Nut M6 X 1.0 |
| 0v | 234062670 | Stainless Steel Flat Washer |
| 0w | 250000807 | Torx Truss Screw M6 X 25 |
| 0x | 710006437 | LH Cargo Harness |
| 0y | 710006429 | Cargo Harness RH |
| 0z | 710004643 | LH Connector Support |
