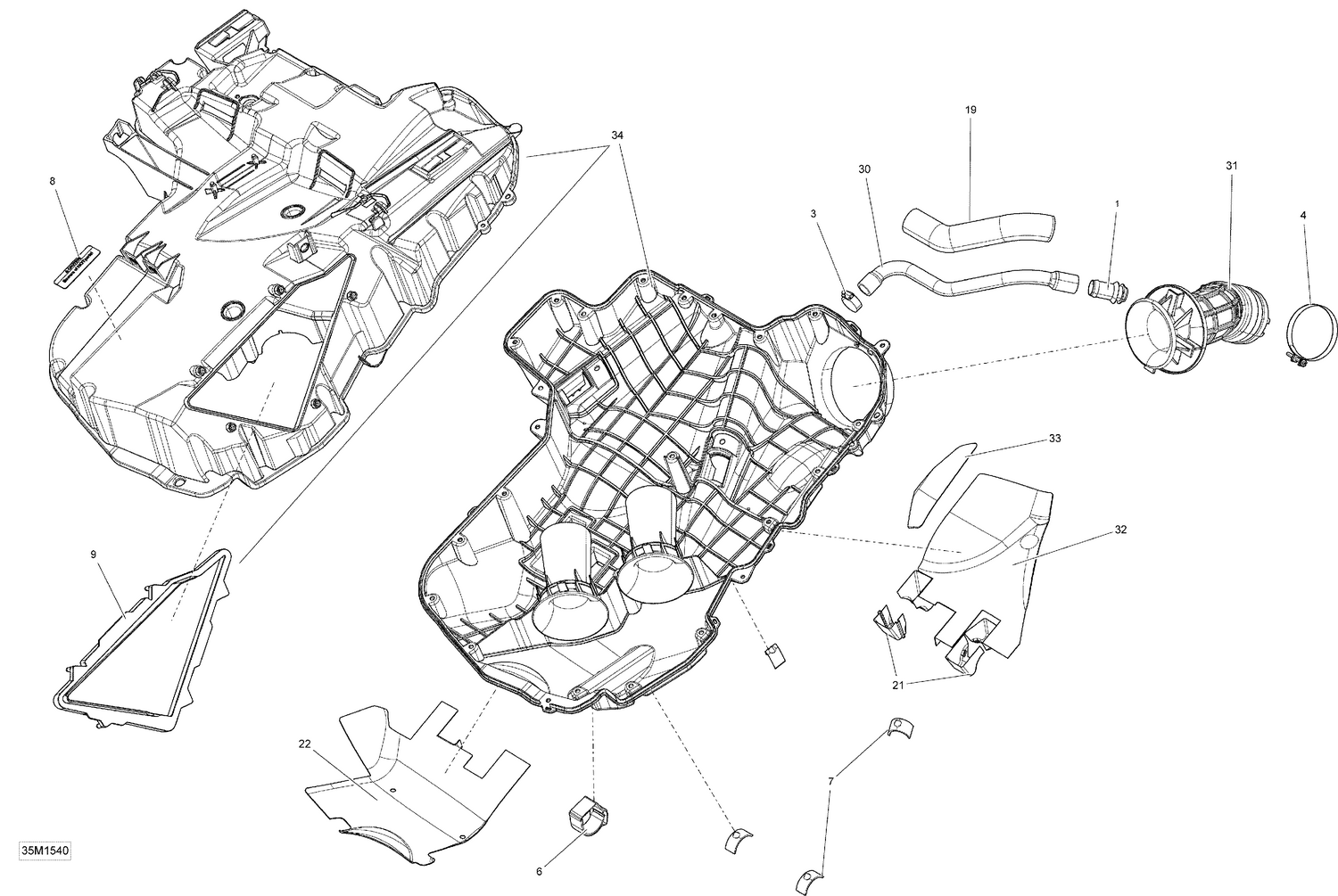

02- Air Intake System _35M1540
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 273000234 | Breather Valve |
| 3 | 293650172 | Tridon Gear Clamp |
| 4 | 293650229 | Gemi Clamp |
| 6 | 508000820 | Velcro Strip This part replaces 508000532. |
| 7 | 508000537 | Stopper |
| 8 | 516005280 | Caution Decal Hot Parts |
| 9 | 508000546 | Air Filter |
| 19 | 508000648 | Tube Isolator |
| 21 | 508000677 | Heat Shield |
| 22 | 508000793 | HEAT SHIELD - Call your local BRP dealership |
| 30 | 508000746 | Hose Vent |
| 31 | 508000757 | Flute |
| 32 | 508000776 | HEAT SHIELD - Call your local BRP dealership |
| 33 | 508000777 | HEAT SHIELD - Call your local BRP dealership |
