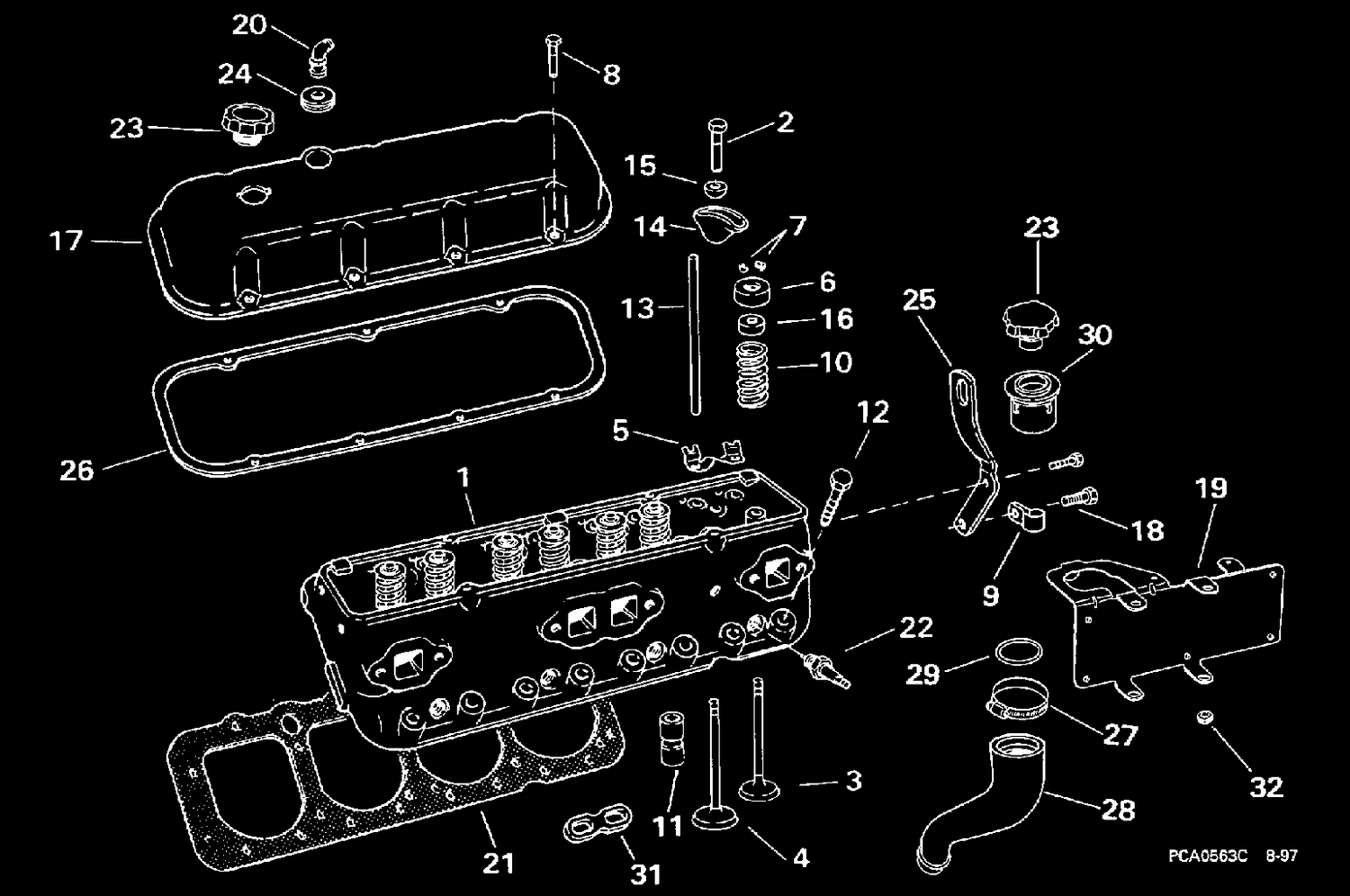

| Ref | Part Number | Description |
|---|
| 1 |
3857477 |
CYLINDER HEAD ASSY. |
| 2 |
3853504 |
BOLT, Rocker arm |
| 3 |
3853485 |
VALVE, Intake, standard |
| 4 |
3853487 |
VALVE, Exhaust, standard |
| 4 |
3853488 |
VALVE, Exhaust, 0.003 O.S. |
| 4 |
3853489 |
VALVE, Exhaust, 0.015 O.S. |
| 4 |
3853490 |
VALVE, Exhaust, 0.030 O.S. |
| 5 |
3853515 |
GUIDE, Push rod |
| 6 |
3855988 |
ROTATOR ASSY., Valve |
| 6 |
3857681 |
OIL FILL CAP This part replaces 3855977. |
| 7 |
3853351 |
KEY, Valve stem |
| 8 |
3853503 |
BOLT, Valve cover |
| 9 |
3852837 |
CLAMP, Hoses to cylinder head |
| 9 |
3854423 |
CLAMP, Ground cable, stbd. |
| 10 |
3855992 |
SPRING & DAMPER ASSY. |
| 11 |
3855987 |
LIFTER ASSY. |
| 12 |
3854766 |
BOLT, Cylinder head, long |
| 12 |
3854767 |
BOLT, Cylinder head, short |
| 13 |
3856029 |
PUSH ROD, Intake |
| 13 |
3856030 |
PUSH ROD, Exhaust |
| 14 |
3855980 |
ARM, Valve rocker |
| 15 |
3855978 |
BALL, Rocker arm |
| 16 |
3853521 |
SEAL, Valve stem |
| 17 |
3856028 |
VALVE COVER |
| 18 |
3853154 |
SCREW, Bracket to cylinder head |
| 19 |
3857319 |
BRACKET, Module & throttle |
| 20 |
0311545 |
ELBOW This part replaces 3852104. |
| 21 |
3853511 |
GASKET, Cylinder head |
| 22 |
3854399 |
SPARK PLUG, Champion RS12YC |
| 23 |
3857681 |
OIL FILL CAP |
| 24 |
3853562 |
GROMMET, Valve cover |
| 25 |
3854377 |
BRACKET, Cylinder head |
| 26 |
3853513 |
GASKET, Valve cover |
| 27 |
0310894 |
CLAMP This part replaces 3854926. |
| 28 |
3857208 |
HOSE, Oil fill |
| 29 |
3854885 |
O-RING, Oil fill neck |
| 30 |
3857209 |
NECK, Oil fill |
| 31 |
3856000 |
GUIDE, Valve lifter |
