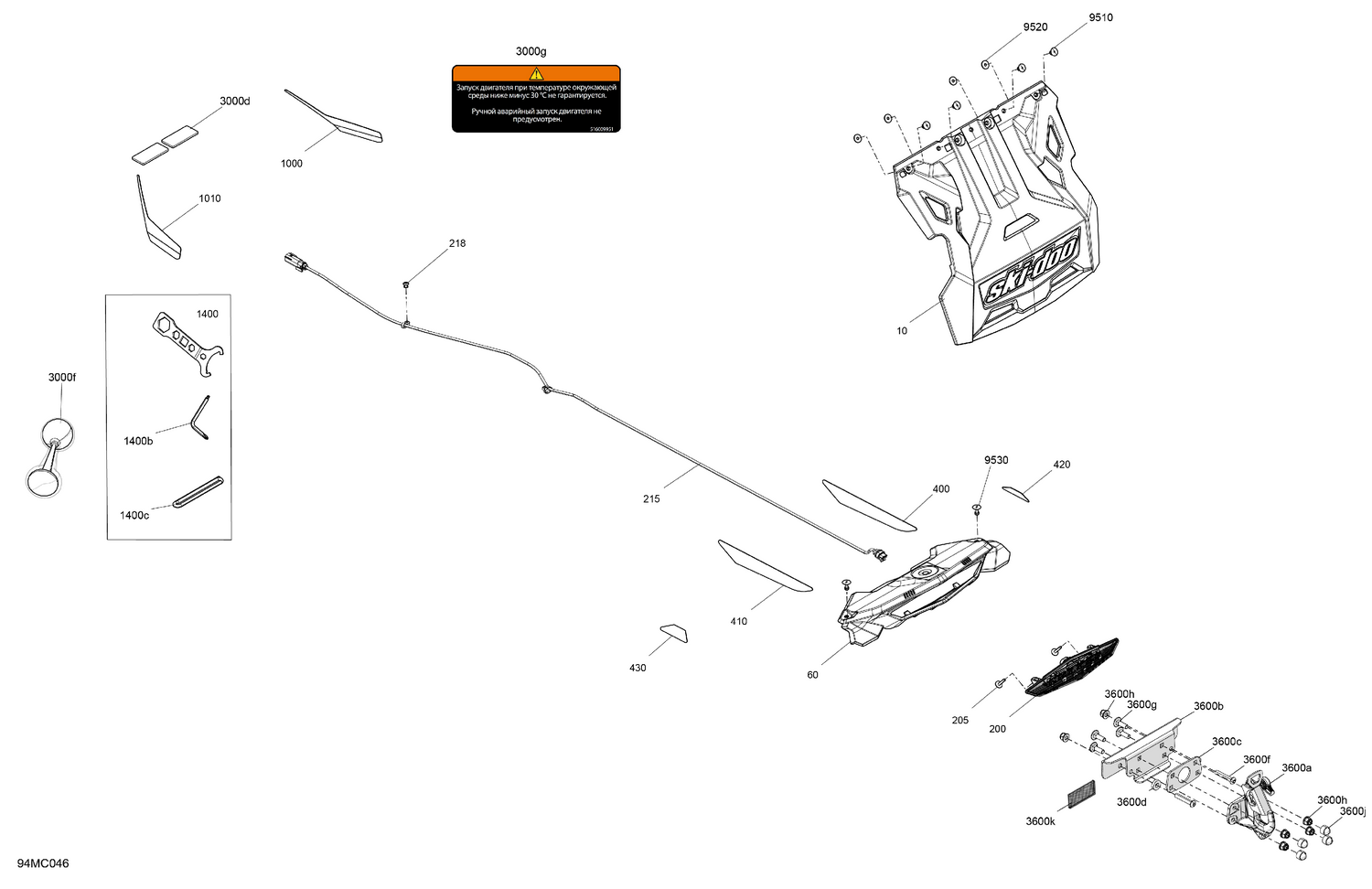

09- Miscellaneous - Utilities
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002106 | Snow Guard |
| 60 | 520001487 | Light Fairing |
| 200 | 520002710 | Tail Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178267 | Rear Light Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 420 | 520001862 | Amber, LH Rear Reflector |
| 430 | 520001861 | Amber, LH Rear Reflector |
| 1000 | 520002444 | RH Front Reflector |
| 1010 | 520002443 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3000d | 520002680 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 3600a | 520001826 | Hitch Ass'y |
| 3600b | 520001632 | Hitch Support |
| 3600c | 520001243 | Hitch Fastening Plate |
| 3600d | 520001288 | Sleeve |
| 3600f | 205484546 | Socket Head Screw M8 X 45 |
| 3600g | 207782544 | Carriage Bolt, M8 X 25 |
| 3600h | 233281414 | Hex. Flange Elastic Nut M8 |
| 3600j | 28056 | Cover |
| 3600k | 520001820 | Red Reflector |
| 9510 | 293150104 | Pop Rivet 3/16" |
| 9520 | 517124300 | Washer |
