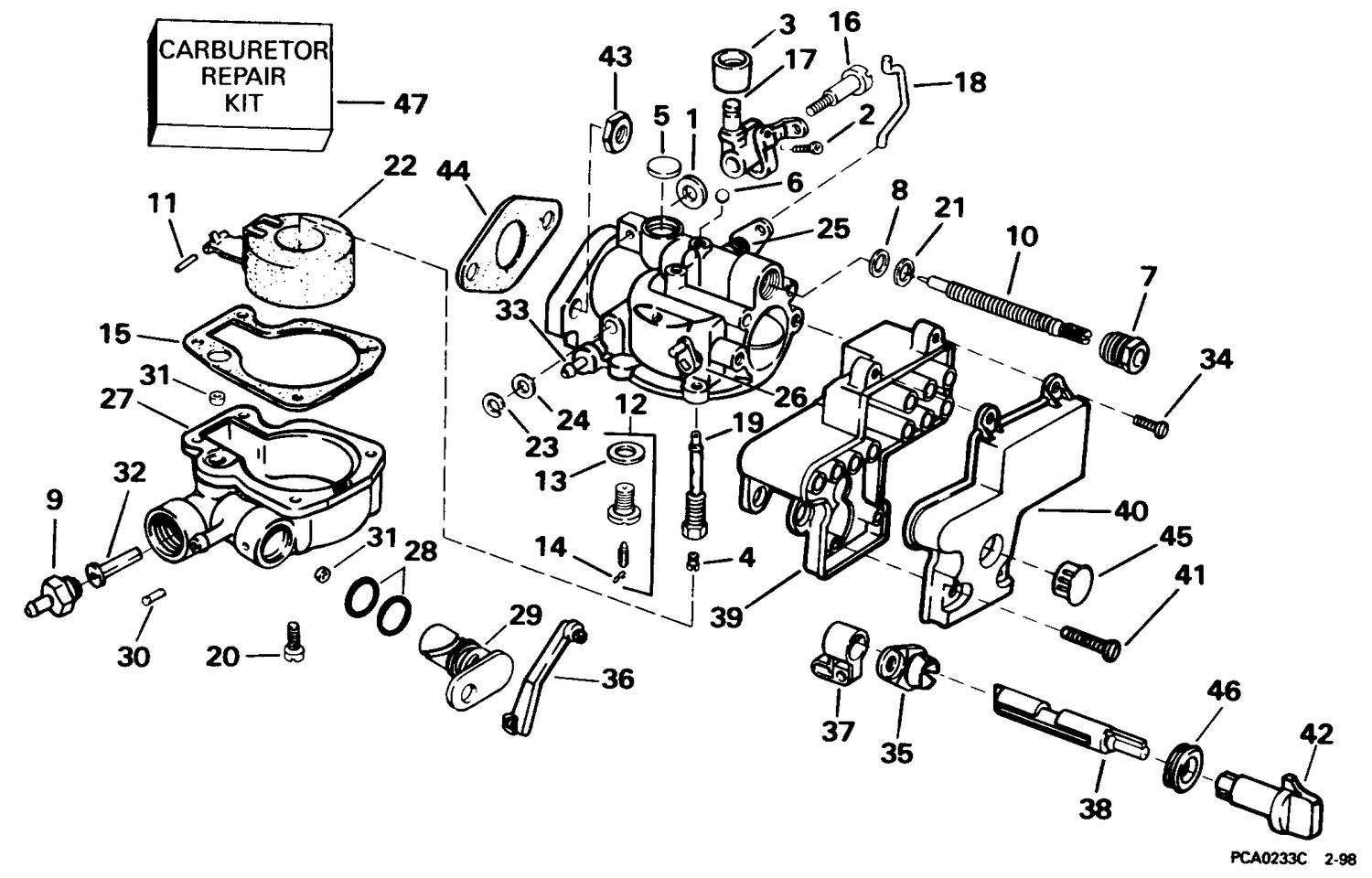

CARBURETOR
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0318832 | O-RING, No. 35 |
| 14 | 0336842 | CLIP, SPRING |
| 18 | 0330286 | LINK, Cam follower |
| 19 | 0323410 | NOZZLE, High speed |
| 23 | 0203949 | E RING LINK |
| 35 | 0326225 | LEVER, Choke knob |
| 36 | 0324696 | LINK, Lever to valve |
| 37 | 0326229 | LINK, Choke lever |
| 38 | 0326224 | SHAFT, Choke & fuel shut off |
| 39 | 0336012 | BASE, Air silencer |
| 40 | 0336036 | AIR SILENCER |
| 42 | 0336186 | KNOB, Choke |
| 43 | 0328742 | NUT |
| 44 | 0323452 | GASKET |
| 45 | 0333011 | PLUG |
| 46 | 0336174 | GROMMET, Choke knob |
| 0435326 | 0435326 | CARBURETOR ASSY. |
| 5000044 | 5000378 | CARBURETOR ASSY. This part replaces 5000044. |
