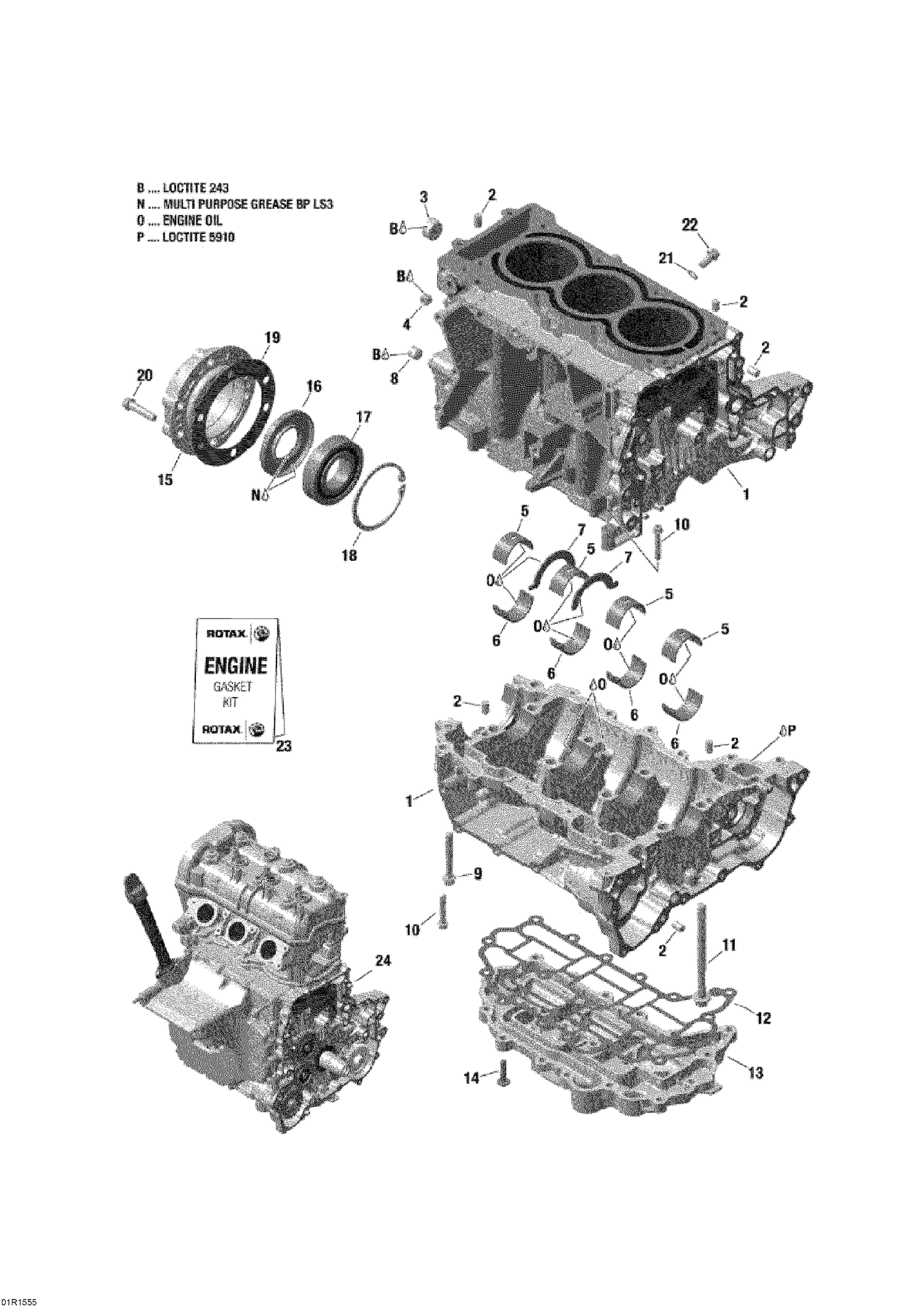

01- Crakcase _01R1555
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| N | Not | Available As Spare Part - Multipurpose Grease BP LS3 |
| O | Not | Available As Spare Part - Engine Oil |
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641317 | Plug Screw M20 X 1.5 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420933180 | Cushion |
| 6 | 420933185 | Cushion |
| 7 | 420933140 | Ring Half |
| 8 | 420840500 | Threaded Pin |
| 9 | 420641213 | Torx Flange Screw M8 X 55 |
| 10 | 420641258 | Torx Flange Screw M6 X 35 |
| 11 | 420940945 | Torx Flange Screw M9 X 113 |
| 13 | 420912380 | Oil Sump This part replaces 420911500. |
| 14 | 420841546 | FLANGED TORX SCREW M6 X 25 - Call your local BRP dealership |
| 17 | 420832232 | Ball Bearing |
| 18 | 420845790 | Retaining Ring |
| 20 | 420641188 | Torx Flange Screw M8 X 35 |
| 22 | 420440852 | Torx Flange Screw M8 X 16 |
| 23 | 420686235 | Engine Gasket Set |
| 24 | 420090301 | Long Block 903 |
