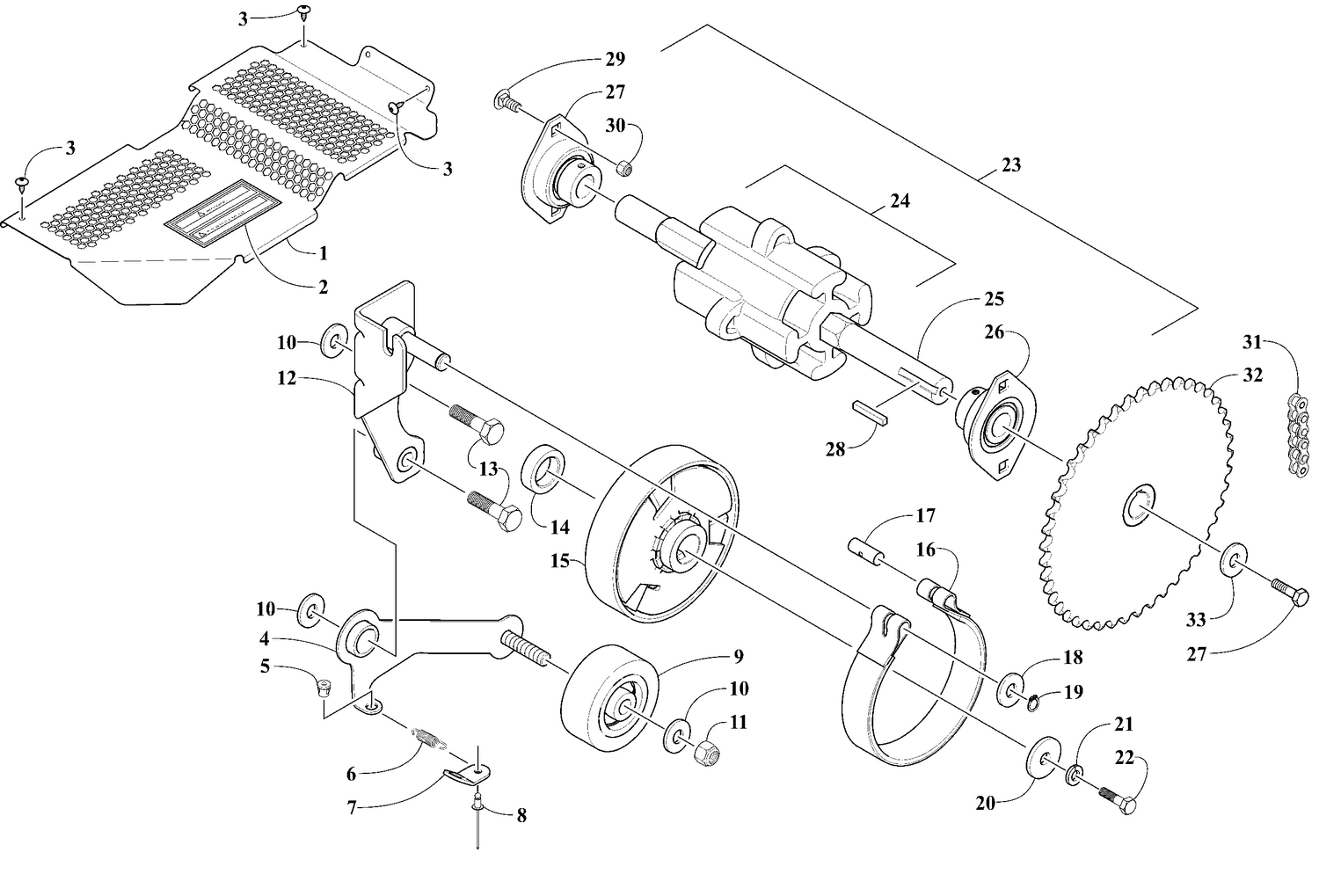

Drive Train Shaft and Brake
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1712-778 | Clutch/Brake/Muffler Shield |
| 2 | 3611-754 | Warning Decal |
| 3 | 2623-166 | Self Tapping Screw |
| 4 | 1702-237 | Chain Tensioner |
| 5 | 0623-868 | Snap Bushing |
| 6 | 1612-178 | Exhaust Strap Spring |
| 7 | 2606-021 | Spring Retainer Tab |
| 8 | 8060-484 | Zinc Rivet |
| 9 | 1602-065 | Chain Tensioner Roller |
| 10 | 8050-247 | Flat Washer |
| 11 | 8041-426 | Thin Lock Hex Nut |
| 12 | 0702-360 | Brake Bracket |
| 13 | 1623-548 | Cap Screw |
| 14 | 1602-026 | Spacer |
| 15 | 3602-002 | Centrifugal Clutch |
| 16 | 1602-021 | Brake Band |
| 17 | 1602-049 | Brake Cable Retainer Pin |
| 18 | 8050-277 | Washer 5/16 |
| 19 | 0623-821 | Retaining Ring |
| 20 | 0623-942 | Washer |
| 21 | 8051-242 | Lock Washer 5/16 |
| 22 | 8004-132 | Cap Screw |
| 23 | 0728-247 | Drive Track Ass'y |
| 24 | 3602-046 | Drive Sprocket |
| 25 | 1602-850 | Driveshaft |
| 26 | 1602-992 | Bearing |
| 27 | 2623-259 | Cap Screw |
| 28 | 3602-219 | Key |
| 29 | 8011-130 | Carriage Bolt |
| 30 | 8047-426 | Elastic Stop Nut 1/4-20 |
| 31 | 2602-333 | Roller Drive Chain |
| 32 | 3602-218 | Chain Sprocket |
