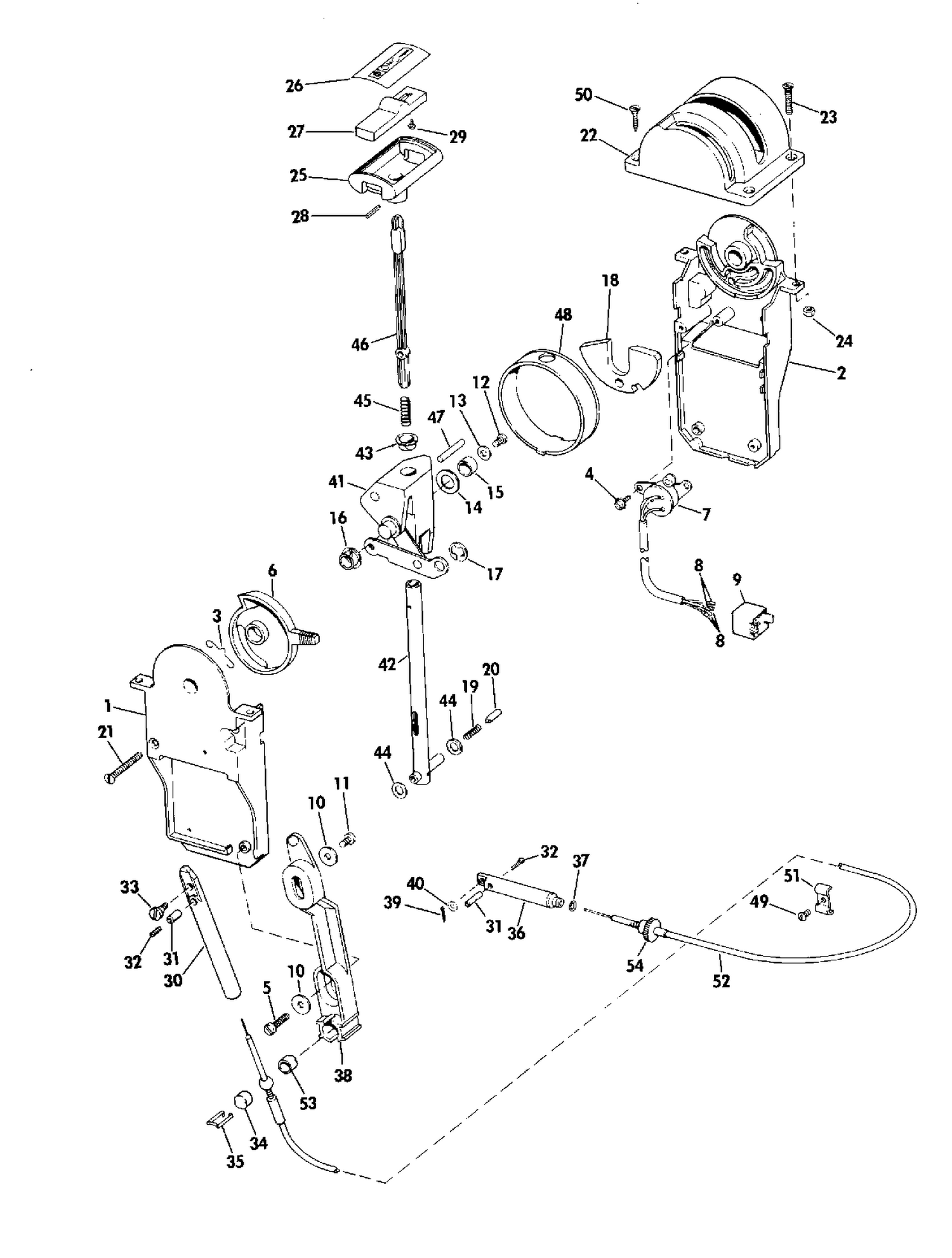

| Ref | Part Number | Description |
|---|
| 1 |
0171986 |
HOUSING ASSY - PORT |
| 2 |
0121737 |
HOUSING ASSY - STBD |
| 3 |
0121741 |
DETENT, Idle |
| 4 |
0308691 |
SCREW |
| 5 |
0303714 |
SCREW |
| 6 |
0121739 |
CAM IDLE |
| 7 |
0172123 |
SWITCH & CONNECTOR ASSEMBLY |
| 9 |
0311741 |
CONECTOR |
| 11 |
0304904 |
SCREW, Idle link to housing |
| 13 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 15 |
0121752 |
BUSHING, Friction |
| 17 |
0311034 |
RETAINER RING |
| 18 |
0121753 |
CAM, Shift |
| 19 |
0300327 |
SPRING, Detent |
| 20 |
0121754 |
SLIDE, Detent |
| 21 |
0319367 |
SCREW, Housing |
| 22 |
0121756 |
COVER, Housing |
| 23 |
0333345 |
SCREW This part replaces 0121762. |
| 25 |
0121757 |
KNOB |
| 26 |
0121758 |
PLATE, Knob |
| 27 |
0121759 |
PUSH BOTTON |
| 28 |
0121760 |
ROLL PIN KNOB |
| 29 |
0307394 |
SCREW ,Lockout |
| 30 |
0205036 |
CASING GUIDE, Control |
| 31 |
0385958 |
CLAMP & SC R.,Casing guide |
| 33 |
0121282 |
SCREW |
| 35 |
0121761 |
CLIP, Trunnion |
| 37 |
0307063 |
O RING |
| 38 |
0121740 |
LINK, Idle |
| 40 |
0303887 |
WASHEER, Pin to swivel bracket |
| 41 |
0172884 |
YOKE ASSY |
| 42 |
0171990 |
OPERATING HANDLE ASSEMBLY |
| 44 |
0552914 |
WASHER, Guide pan |
| 45 |
0302993 |
SPRING |
| 46 |
0121745 |
ROD, Follower |
| 47 |
0121746 |
PIN |
| 48 |
0121751 |
RING, Trim |
| 50 |
0121763 |
SCREW, Cover |
| 51 |
0308078 |
CLAMP |
| 53 |
0309724 |
ANCHOR BLOCK |
| 0172122 |
0172122 |
BINNABLE MOUNT CONTROL KIT |
