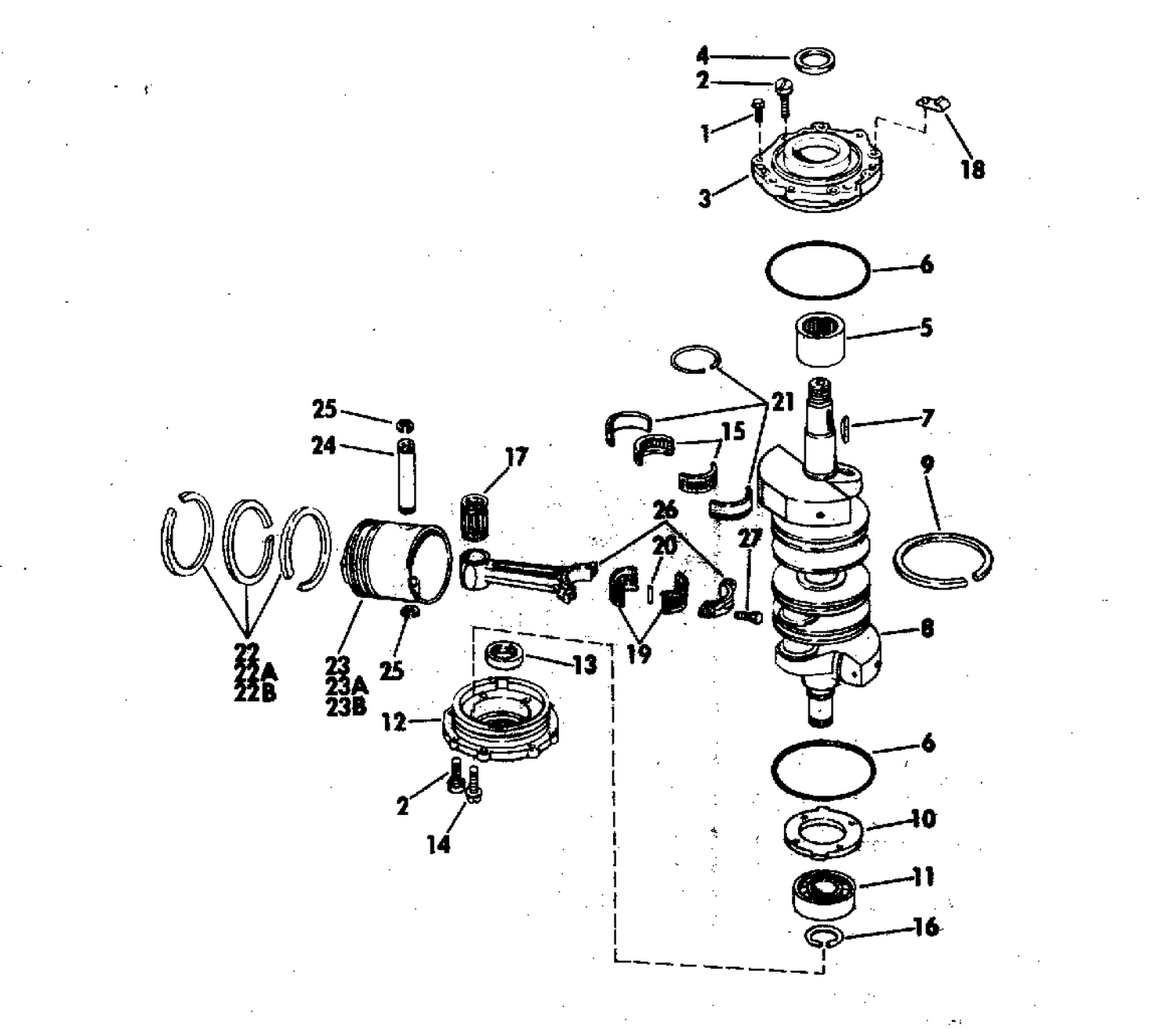

| Ref | Part Number | Description |
|---|
| 1 |
0308111 |
SCREW, C' case head upper |
| 2 |
0309924 |
SCREW |
| 3 |
0383502 |
C' CASE HEAD ASSY. |
| 5 |
0382398 |
BEARING, Roller |
| 6 |
0305123 |
O RING |
| 8 |
0384576 |
C' SHAFT ASSY. |
| 9 |
0310044 |
SEAL RING (1 STRIPE) |
| 9 |
0310045 |
SEAL RING (2 STRIPES) |
| 9 |
0310046 |
SEAL RING (3 STRIPES) |
| 10 |
0308865 |
PLATE |
| 12 |
0383417 |
C' CASE HEAD ASSY. |
| 14 |
0311539 |
SCREW, Bearing plate |
| 15 |
0378252 |
BEARING ASSY., Needle |
| 17 |
0378251 |
BEARING SET, Needle, wrist pin |
| 18 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 19 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 20 |
0378515 |
BEARING SET, Needle,connecting rod |
| 21 |
0310433 |
SLEEVE |
| 22 |
0382825 |
PISTON RING SET, Standard |
| 22A |
0382826 |
PISTON RING SET, .020 o.s |
| 22B |
0384384 |
PISTON RING SET, .030 O.S. |
| 23 |
0385282 |
PISTON, Std |
| 23A |
0385288 |
PISTON, .020 o.s. |
| 23B |
0385290 |
PISTON, .030 o.s. |
| 24 |
0317513 |
WRIST PIN |
| 25 |
0316968 |
RETAINING RING |
| 26 |
0385652 |
CONNECTING ROD ASSY |
