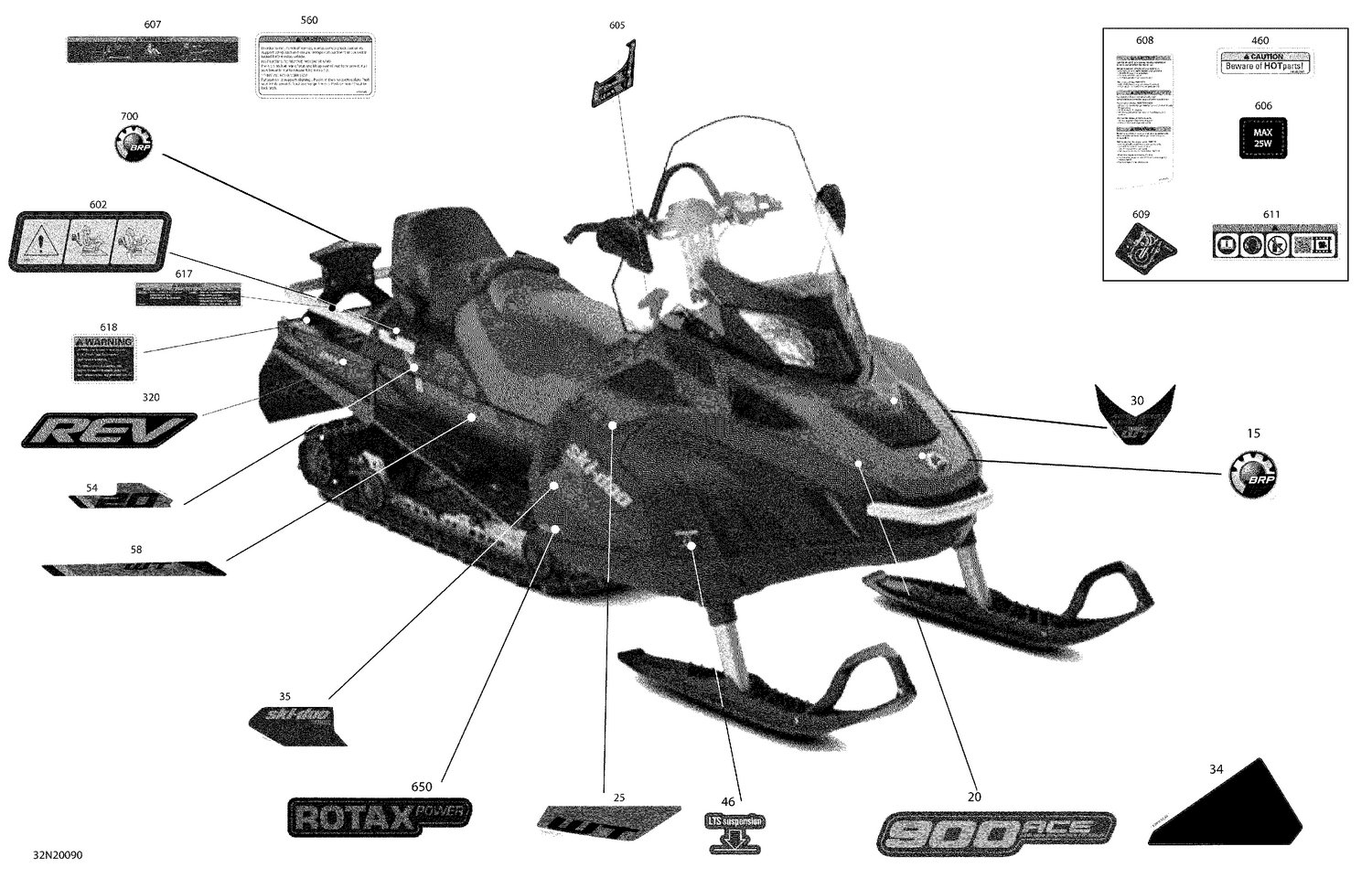

09- Body - Decals
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 20 | 516006454 | Hood Decal "900 Ace" |
| 25 | 516009114 | Access Panel Decal "WT" |
| 30 | 516009115 | Front Hood Decal "Skandic WT" |
| 34 | 516009957 | Side Panel Decal LH/RH |
| 35 | 516009119 | Side Panel Decal "Ski-Doo Skandic WT" |
| 46 | 516007160 | Decal " LTS Suspension " |
| 54 | 516009123 | LH/RH Storage Box Decal |
| 58 | 516009126 | LH/RH Frame Decal "WT" |
| 320 | 516008835 | Decal " Rev " |
| 460 | 516006903 | Hot Parts Decal |
| 560 | 516005682 | DECAL WARNING - Call your local BRP dealership |
| 602 | 516005111 | Instruction Decal, Back Seat Locking |
| 605 | 516004305 | Instruction Label, Transmission |
| 606 | 516003918 | Power Outlet Decal (25W) |
| 607 | 516008675 | Warning Label |
| 608 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 609 | 516003925 | Checking Label, Transmission |
| 611 | 516009225 | Warning Decal Europe |
| 617 | 516004960 | Rear Security Decal, English |
| 618 | 516007584 | Warning Decal |
| 650 | 516008760 | Decal ROTAX POWER |
