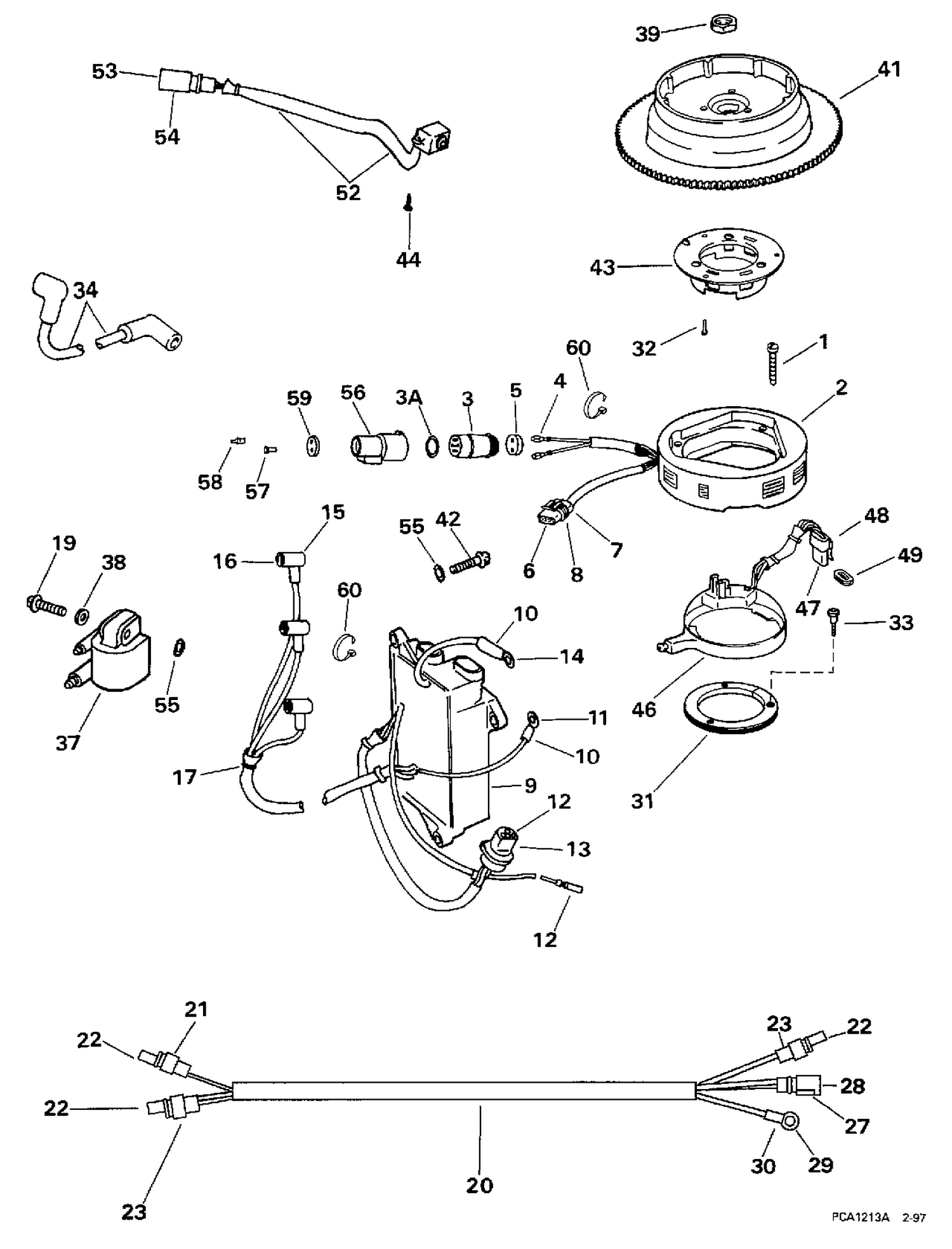

IGNITION SYSTEM -- ROPE/AC
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0586472 | POWER PACK This part replaces 0584823. |
| 20 | 0586091 | MOTOR CABLE ASSY. |
| 31 | 0340842 | SENSOR SUPPORT |
| 32 | 0335739 | SCREW, Conn. brkt. to mntg. brkt. |
| 33 | 0340867 | SCREW, Sensor support |
| 34 | 0584925 | LEAD ASSY., Ignition coil |
| 37 | 0586323 | COIL ASSY. |
| 41 | 0584820 | FLYWHEEL ASSY. |
| 43 | 0514372 | ENCODER |
| 44 | 0514654 | SCREW, Warning system |
| 46 | 0584824 | SENSOR ASSY. |
| 52 | 0584827 | WARNING SYSTEM |
