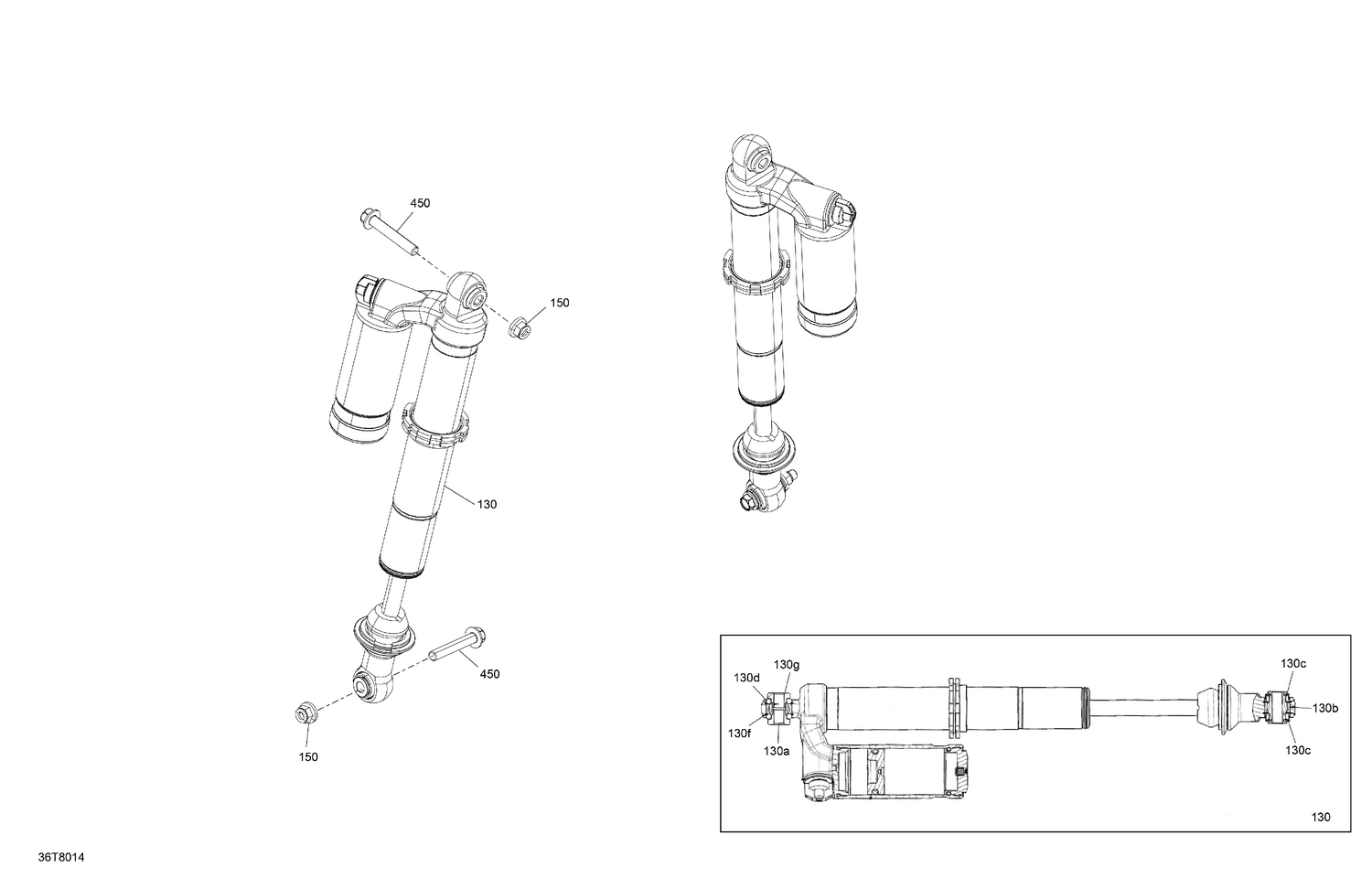

05- Suspension - Rear Shocks
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 715900484 | SPHERICAL BEARING - Call your local BRP dealership |
| 130b | 715900336 | Ball Journal |
| 130c | 715900331 | Protector |
| 130d | 715900209 | O-Ring Bushing |
| 130f | 715900252 | Retaining Ring |
| 130g | 715900210 | Interior Bushing |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
