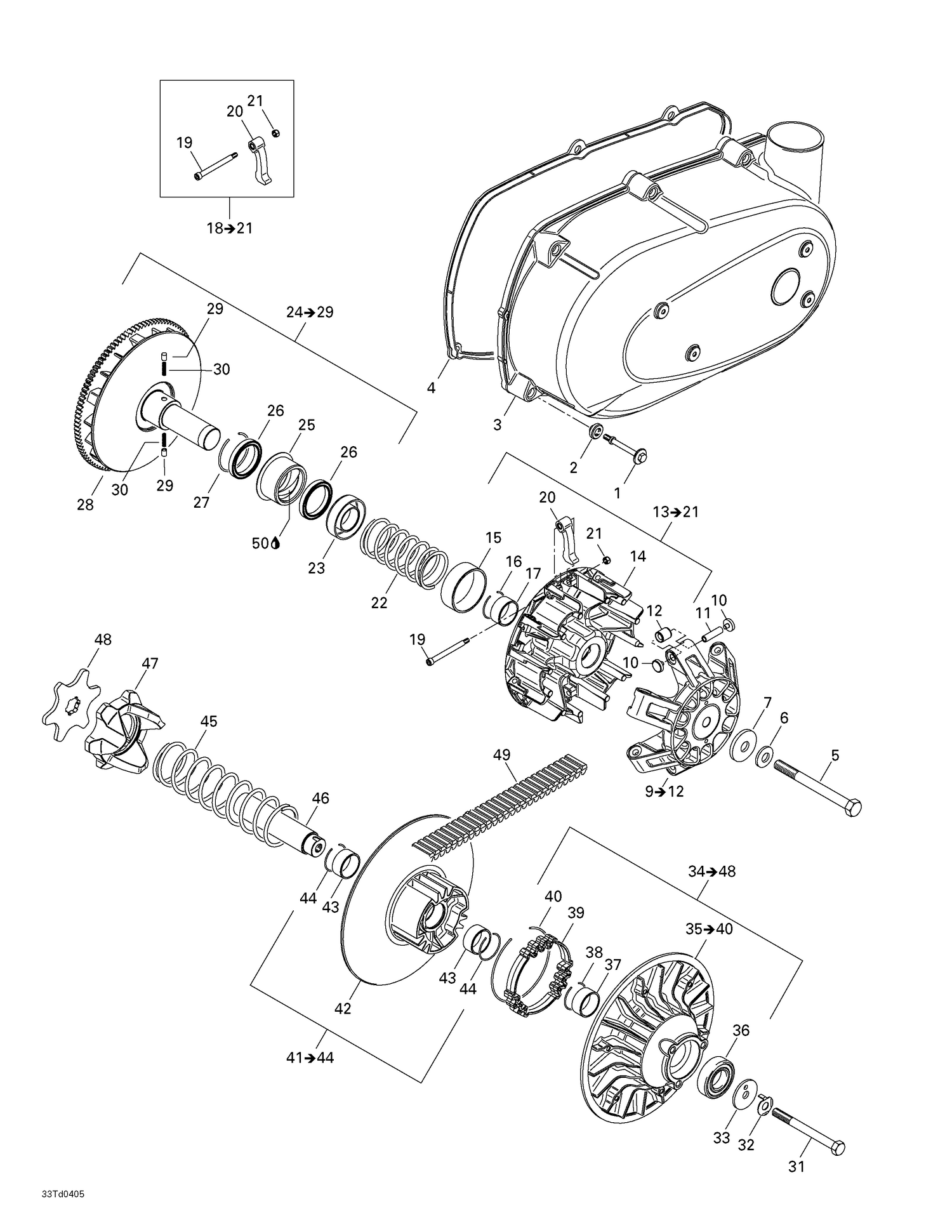

| Ref | Part Number | Description |
|---|
| 1 |
420240906 |
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership |
| 2 |
420260050 |
Rubber Bushing |
| 3 |
420610350 |
TRANSMISSION COVER - Call your local BRP dealership |
| 4 |
420630110 |
GASKET - Call your local BRP dealership |
| 5 |
420641859 |
Hex. Screw M12 X 140 This part replaces 420641852. |
| 6 |
420627768 |
Spring Washer This part replaces 420627765. |
| 7 |
420627920 |
Thrust Washer |
| 10 |
420281296 |
Slider Shoe Set This part replaces 420281290. |
| 11 |
417223257 |
Roller Axle This part replaces 420233890. |
| 12 |
417223767 |
Roller This part replaces 420229585. |
| 14 |
Not |
Available As Spare Part - Outher Half |
| 15 |
Not |
Available As Spare Part - Bushing |
| 16 |
Not |
Available As Spare Part - Retaining Ring |
| 17 |
Not |
Available As Spare Part - Bushing |
| 19 |
Not |
Available As Spare Part - Screw M5 (M-500) |
| 20 |
Not |
Available As Spare Part - Lever (M-500) |
| 21 |
Not |
Available As Spare Part - Lock Nut M5 (M-500) |
| 22 |
420238164 |
Compression Spring |
| 23 |
420627573 |
SPRING SEAT - Call your local BRP dealership |
| 25 |
420257195 |
Drive Pulley Clutch |
| 26 |
420632377 |
Ball Bearing This part replaces 420632371. |
| 27 |
420245951 |
Retaining Ring This part replaces 420245950. |
| 28 |
Not |
Available As Spare Part - Inner Half Ass'y |
| 29 |
420229577 |
Spring Sleeve This part replaces 420229576. |
| 30 |
420239134 |
Spring This part replaces 420239133. |
| 31 |
420441485 |
Hex. Screw M10 X 110 This part replaces 420941906. |
| 32 |
420245925 |
TAB WASHER - Call your local BRP dealership This part replaces 420245920. |
| 33 |
420627594 |
Thrust Washer This part replaces 420627591. |
| 36 |
420932421 |
Ball Bearing This part replaces 420932426. |
| 37 |
Not |
Available As Spare Part - Bushing |
| 38 |
Not |
Available As Spare Part - Retaining Ring |
| 39 |
420660120 |
TORQUE GEAR - Call your local BRP dealership |
| 40 |
420245911 |
Retaining Ring This part replaces 420245910. |
| 42 |
Not |
Available As Spare Part - Sliding Pulley |
| 43 |
Not |
Available As Spare Part - Bushing |
| 44 |
Not |
Available As Spare Part - Retaining Ring |
| 45 |
420238173 |
Compression Spring, Driven Pulley This part replaces 420238171. |
| 46 |
420220913 |
Driven Pulley Shaft This part replaces 420220911. |
| 47 |
420280191 |
DRIVEN PULLEY CAM - Call your local BRP dealership |
| 48 |
420627586 |
Cam Plate This part replaces 420627582. |
| 49 |
422280283 |
Drive Belt This part replaces 420280280. |
| 420238166 |
Compression |
Spring This part replaces 420238161. 420238166 |
| 420238166 |
Ressort |
De Poulie This part replaces 420238161. 420238166 |
| 420684345 |
CVT |
Drive Pulley Ass'y 420684345 |
| 420684345 |
Poulie |
Menante Cvt Ass. 420684345 |
| 715900023 |
V-belt |
This part replaces 420280200. 715900023 |
