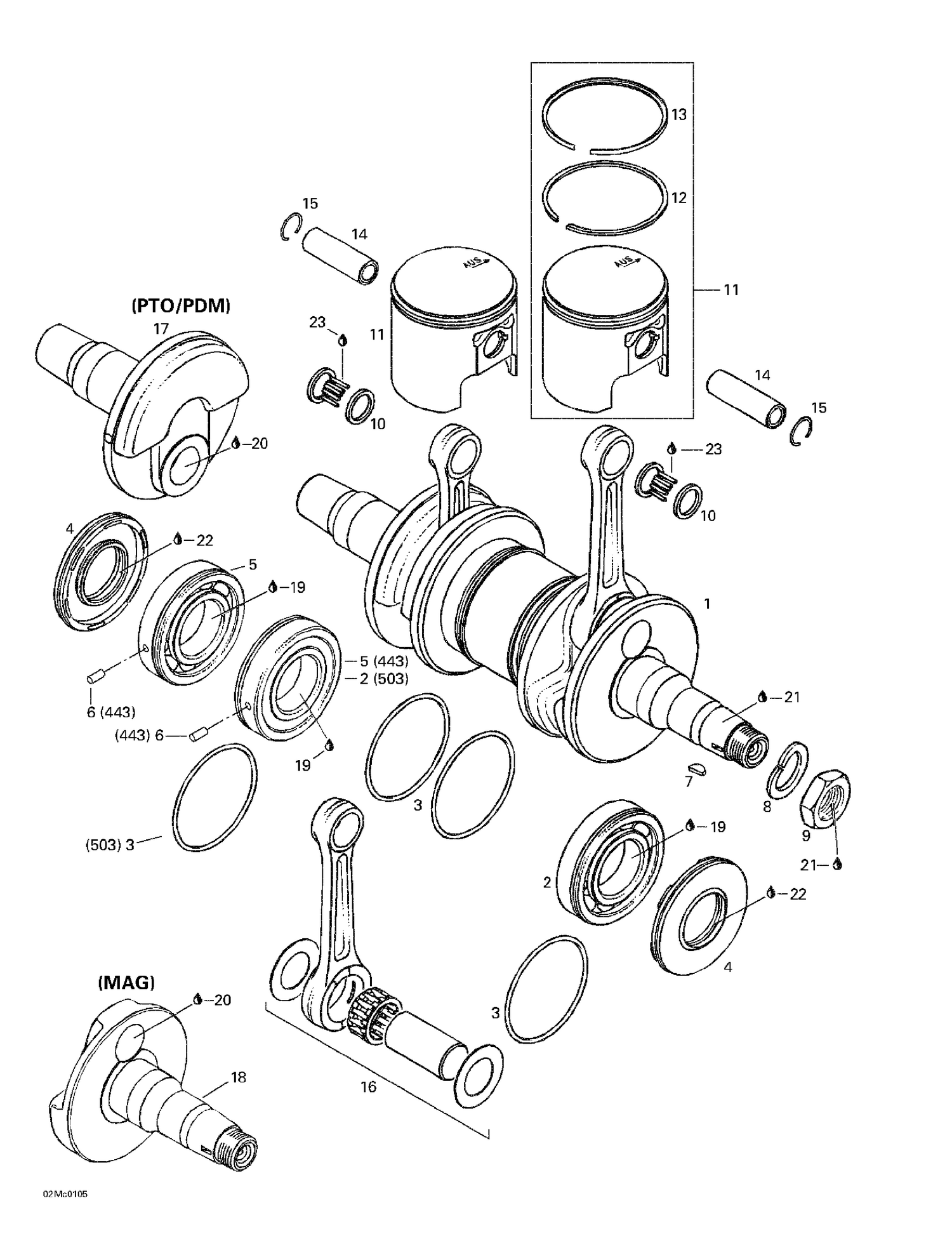

| Ref | Part Number | Description |
|---|
| 1 |
421000155 |
REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership |
| 2 |
420832584 |
Bearing_Ball This part replaces 420832570. |
| 3 |
Not |
Available As Spare Part - O-Ring 64 mm |
| 4 |
420831952 |
Oil Seal This part replaces 290831952. |
| 6 |
420929972 |
Dowel Pin |
| 7 |
420246055 |
Woodruff Key |
| 8 |
420945759 |
Lock Washer, 22 mm |
| 9 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 15 |
420945735 |
Piston Circlip |
| 19 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 20 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
413707000 |
Dow Corning 111, 150 g |
